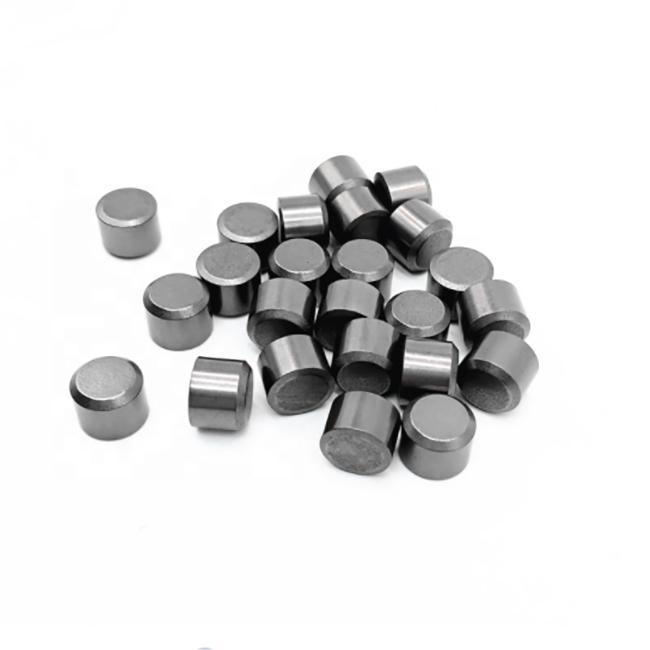

Tungsten Carbide Serrated Button Teeth 7.2x7mm for Oil Mining Drill Bits
High-performance serrated button teeth designed for oil mining drilling bits, offering exceptional wear resistance and durability in demanding drilling operations.
Manufactured using 100% virgin tungsten carbide material to ensure superior wear resistance and high impact resistance for extended service life.
These carbide button tips are welded onto stabilizers to provide wear protection for oil-field and mining drill bits. Positioned around the drill bit, they prevent excessive wear on the outer diameter, significantly extending the bit's operational lifespan.
Multiple grade options available including K30, K40, YG8, KD8, YG9, with custom grades available upon request to meet specific drilling requirements.
| Type | Diameter (mm) | Height (mm) |
|---|---|---|
| SP07207 | 7.2 | 7 |
| SP08207 | 8.2 | 7 |
| SP09208 | 9.2 | 8 |
| SP10208 | 10.2 | 8 |
| SP14815 | 14.8 | 15 |
| SP16215 | 16.2 | 15 |
| SP17818 | 17.8 | 18 |
| SP20217 | 20.2 | 17 |
- Manufactured from premium tungsten carbide material for stable performance and increased drilling yield
- Available in extra grain sizes for enhanced impact resistance with reduced hot cracking and breakage
- Precision ground and tumbled for uniform dimensions and smooth surfaces, facilitating easier mounting
- HIP sintered for increased strength and extended service life
Full range of types and specifications available. OEM & ODM services welcome. Custom dimensions and types available upon request.
