3.0mm ST Fiber Optic Connector

Price Negotiable

Price: Negotiation

MOQ: 500 pcs

Delivery Time: Within 3-5 working days after confirm order

Brand: Wuhan Geehe

Product Description

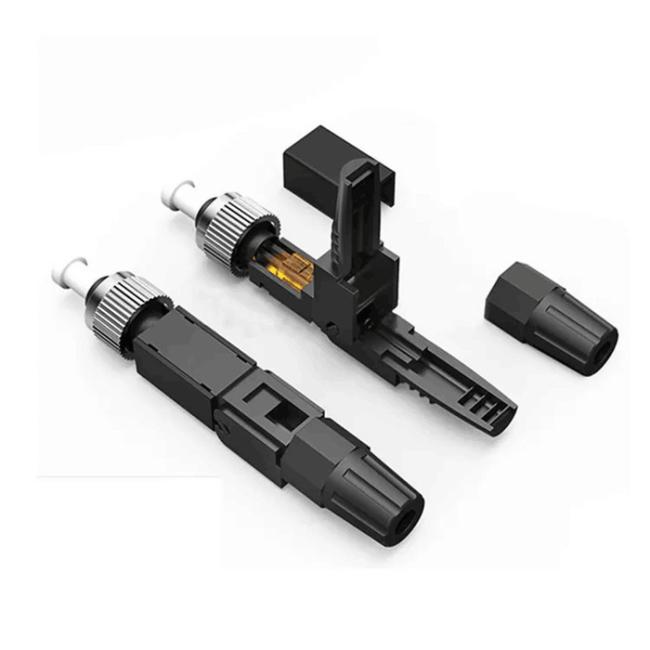

New Arrive PC Single Mode 2.0mm 3.0mm Fast ST Fiber Optic Coupler

Brief Introduction :

ST stands for straight tip, a high-performance fiber-optic connector with round ceramic ferrules and bayonet locking features. ST connectors are more common than SC connectors.

The ST connector is designed to work with the thread coupling mechanism. It come with a pre-polished ferrule that is made with zirconia material. It can be terminated quickly and economically in field or factory setting.

Fiber Optic connectors Features and Advantages:

Low Insertion Loss and high Return Loss ca-pability;
Precision anti rotation key for mechanical stability / repeatability
Nickel plated metal body corrosion resistant
Ultra low back reflection
Zirconia ceramic ferrule available in several
For 3.0mm, 2.0mm jacket or 900um buffer
RoHS materials, REACH SvHC compliant
Individual parts packed in bulk package

Application of FC Connector :

Telecommunication networks
Local area networks
Data processing networks
Distribution application;Premises distribution
Test and laboratory equipment

Technology Specification& Parameters:

Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3；MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥50	≥50	≥50
	MM	dB	≥36(Exclusive APC Connector)
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

Order Information:

OFC	-X	-XX	-XX	-XX	-X	-X
	S: Simplex D: Duplex	SA:ST/APC SC:ST/UPC SP:ST/PC	SA:ST/APC SC:ST/UPC SP:ST/PC	09:0.9mm 20:2.0mm 30:3.0mm	0:G652D 1:G657A 2:50/125 3:62.5/125 4:others	0.5:0.5m 1.0:1.5m 10:10.0m
	Fiber Mode	Connector Type	Connector Type	Cable Diameter	Fiber Type	Fiber Length
