380-3800MHz Power Splitter PIM -150/-155/-161/-165 4.3-10 Female
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Vinncom
Product Description
380-3800MHz Power Splitter PIM -150/-155/-161/-165 4.3-10 Female
380-3800MHz Power Splitter 4.3-10 Female -150/-155/-161/-165
Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM
| Part Number | VN-PS-03838-OPx | ||
| Operating Frequency ( MHz ) | 380-3800 | ||
| Impedance ( Ohm ) | 50 | ||
| VSWR | 2 way≤1.25 | 3 way≤1.25 | 4 way≤1.3 |
| Split Loss (dB) | ≤3.6 | ≤5.6 | ≤7.0 |
| IM3 (dBc @ 2×43dBm) | -150/-155/-161/-165 | ||
| Application | Indoor & Outdoor | ||
| Degree of Protection | IP65 | ||
| Operating Temperature ( ℃ ) | -45 ~ + 60 | ||
| Interface | 4.3-10 Female | ||
| Handling Power (Watt, max) | 500 | ||
| Peak Power (Watt, max) | 1500 | ||

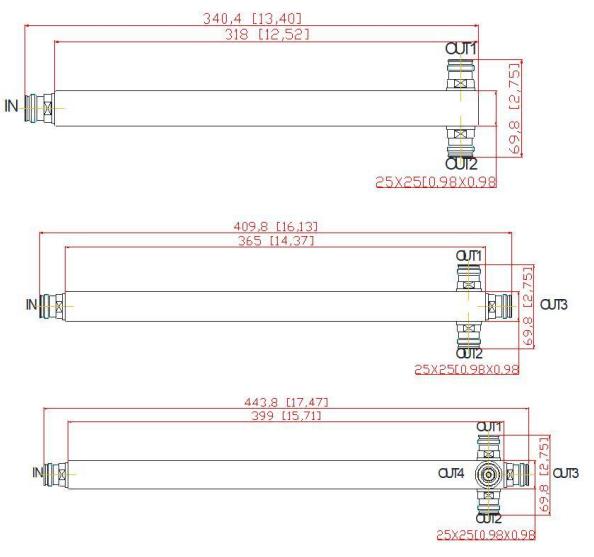

| Dimension (mm)(L×W×H, excl connector) | 318 × 25 × 25 | 365 × 25 × 25 | 399 × 25 × 25 |
| Net Weight (g) | 550± 20 | 645± 20 | 735± 20 |
| ROHS Compliance | Yes | ||
| Revision | R1 | ||
| Date | 21-December-2021 | ||
