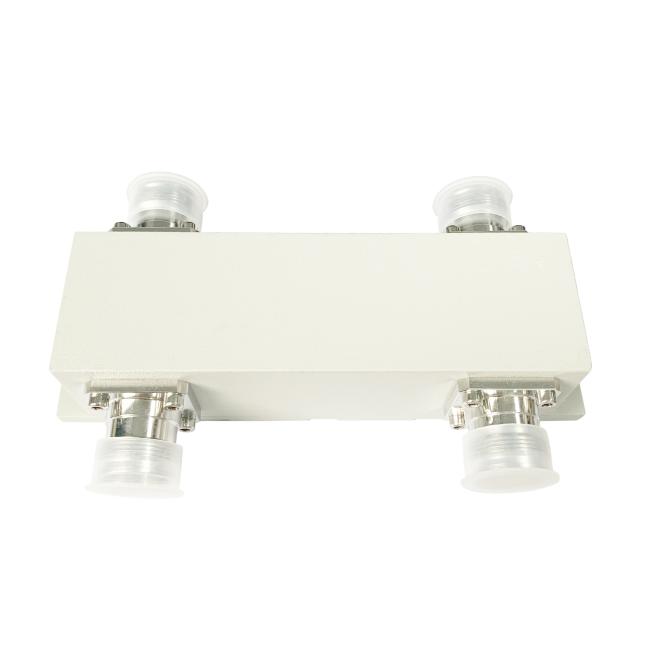

617-6000MHz 2 In 2 Out 300W N Female Connector Hybrid Coupler
Price:
negotiation
MOQ:
5pcs
Delivery Time:
2-4weeks
Brand:
Vinncom
Product Description
617-6000MHz 2 In 2 Out 300W N Female Connector Hybrid Coupler/2:2 Combiner
| Part Number | VN-HC2x2-05560-ON |
| Operating Frequency ( MHz ) | 550-6000 |
| Impedance ( Ohm ) | 50 |
| VSWR | 1.35 |
| Coupling (dB) | 3 |
| Insertion Loss (dB) | ±1.4 |
| Isolation (dB) | 20 |
| IM3 (dBc @ 2×43dBm) | -153/-163 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | N Female |
| Handling Power (Watt, max) | 300 |
| Peak Power (Watt, max) | 1200 |

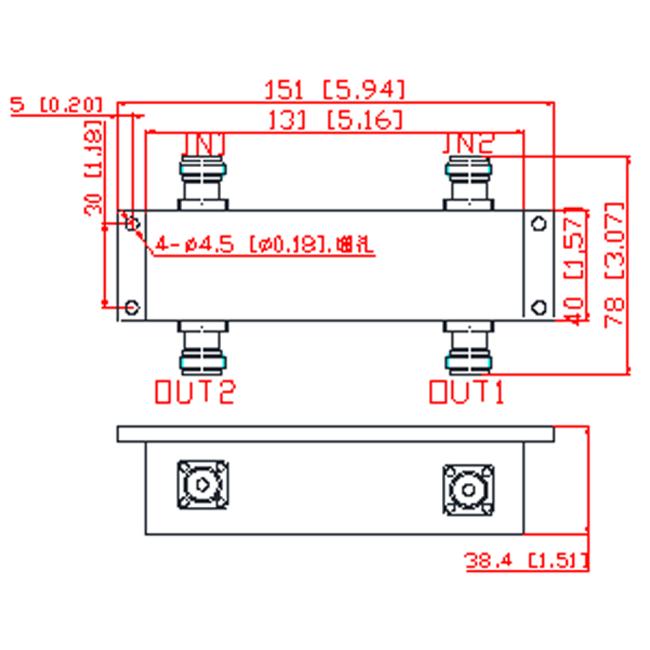

| Dimension (mm)(L×W×H, excl connector) | 131X40X38.4 |
| Net Weight (g) | 600 |
| Packing Dimensions (mm,L×W×H) | 170X100X40 |
| Packing Carton Size (mm,L×W×H) | 520X360X105 |
| ROHS Compliance | Yes |
