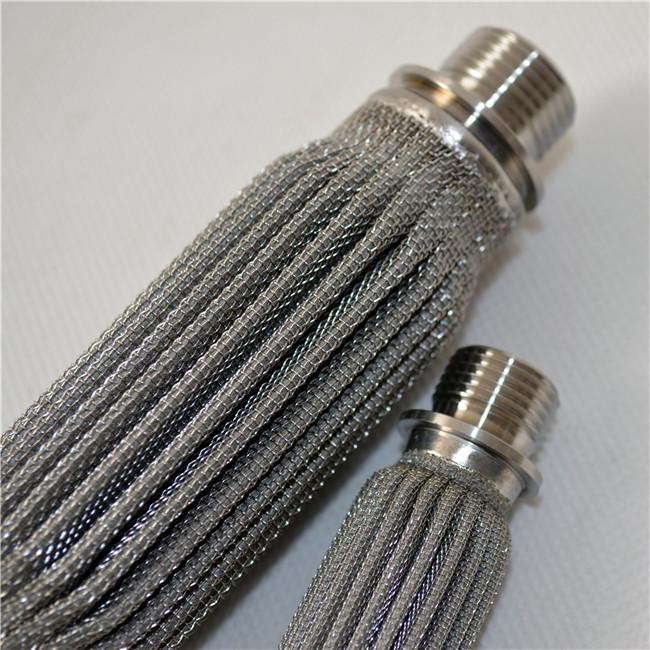

Cartridge Housing SS316 200um Pleated Wire Mesh Filter
SS 316 cartridge filter housingStrong filtering capacity ,After-sales Service Provided Online support
Pleated metal filter advantage:
Pleated stainless steel felt filter cartridge (pssf) features
High strength, high temperature structure stability. high
Porosity makes the velocity faster. Available in most solutions
Fluids and gases in high temperature and high flow applications.
Pssf can provide absolute removal rate.
Specification:
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-86/200-R | 200 | 86 | M65x2P | 0.20 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-86/350-R | 350 | 0.35 | ||||
| PF-86/500-R | 500 | 0.50 | ||||
| PF-100/800-R | 800 | 100 | M80x2P | 1.00 |
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-65/250-R | 250 | 65 | 226 223 220 215 |
0.135 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-65/500-R | 500 | 0.38 | ||||
| PF-70/750-R | 750 | 70 | 0.42 | |||
| PF-70/750-R | 750 | 0.60 |
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-35/102-R | 102 | 35 | M18 M20*2.5 M20*1.5 NPT1" 3/4 - 16 |
0.026 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-35/207-R | 207 | 0.07 | ||||
| PF-35/210-R | 210 | 0.07 | ||||
| PF-35/242-R | 242 | 0.08 | ||||
| PF-35/425-R | 425 | 0.15 | ||||
| PF-35/485-R | 485 | 0.20 |
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-62/180-R | 180 | 62 | G1" | 0.09 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-86/254-R | 254 | 86 | G2" | 0.17 | ||
| PF-86/381-R | 381 | 0.20 | ||||
| PF-86/508-R | 508 | 0.27 | ||||
| PF-86/760-R | 760 | 0.58 | ||||
| PF-140/760-R | 760 | 140 | 0.65 |
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-60/1432-R | 1432 | 60 | 2" * 12UN - 2A | 1.015 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-60/1241-R | 1241 | 0.98 | ||||
| PF-60/1025-R | 1025 | 0.81 |
| Model | L (mm) |
D (mm) |
M | Filter Area (M2) |
R (µm) |
Filter Media |
| PF-60/400-R | 400 | 60 | M33 * 1.5P M33*2P |
0.40 | 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 | SS sintered fiber wed, SS wire cloth |
| PF-60/500-R | 500 | 0.50 | ||||
| PF-60/1000-R | 1000 | 1.00 |
Performance:
Absolute particle removal rate
316 stainless steel optional, compatible with corrosive chemicals
The cartridge can be cleaned and reused
The dimensional integrity of stainless steel media is suitable for high flow rate and high temperature systems
Welded construction eliminates the need for adhesives that can be a source of contaminants
A variety of seal configurations are available for many filter vessel designs
application
Corrosive chemicals and gases
Clarification and filtration
High temperature process
Process steam
Sticky dust
High pressure process
Corrosive liquids
Polymer filtration
Oxidized water
Hot lubricant
