101-870-0510 1018700510 Cylinder Seal Service Kit For Bulldozer D20A-3 KOMATSU
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

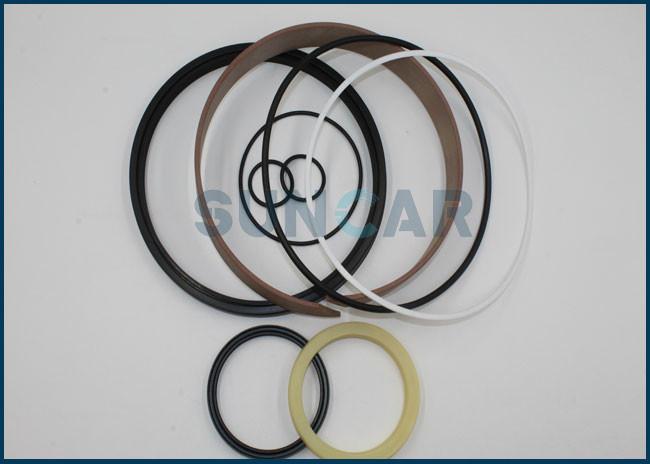

101-870-0510 1018700510 Cylinder Seal Service Kit for Bulldozer D20A-3 KOMATSU
Description: Service kit,101-870-0510 komatsu genuine, new aftermarket tractor parts with delivery bulldozers.Hydraulic Cylinder Seal Kits:
Seals matched to specific appliC-A-Tions for durability and long wear life.Hydraulic cylinder seal kits are used to seal the gap between different parts
of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic
system, to maintain its power.
| Product name | 101-870-0510 1018700510 Cylinder Seal Service Kit for Bulldozer D20A-3 KOMATSU |
| Brand name | SUNCAR |
| OEM number | 101-870-0510 ; 1018700510 |
| Compatible model | Bulldozer D20A-3 ; D20P-3 ;D20PL-3 Komatsu |
| MOQ | 10 sets |
| Function | Dust proof, Shaft seal,high and low temperature resistance |
| Compatible equipment | Bulldozer |
| Cross-Sectional shape | Circular |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Compatible brand | Komatsu |
| Supply alility | 550 sets per week |
| Condition | 100 % new |
| Feature | Oil resistance, Heat resistance, Durable, Sealing Performance, Manufacture |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Size | Standard size or as per customer request |
| AppliC-A-Tion | Building Material Shops, Machinery Repair Shops, Manufacturing Plant,Restaurant,Retail,Construction Works,Energy&Mining |
| Stock | In rich stock |
| Make up | Seal ring,O-ring,Back-up ring,packing |
| Availability | In rich stock. |
| Style |
Hydraulic, Mechanical seal kit,Cylinder seal kit,Bulldozer seal repair kit |
Relative Parts:
| 1 | 101-11-05100 | [1] | SERVICE KIT,MAIN CLUTCH |
| 101-11-13121 | [1] | GASKET,HOUSING | |
| 101-11-13120 | [1] | GASKET,HOUSING | |
| 101-11-13141 | [1] | GASKET,COVER | |
| 101-11-13140 | [1] | GASKET,COVER | |
| 06122-02804 | [2] | SEAL,BEARING | |
| 101-11-14240 | [2] | SEAL,OIL HOUSING | |
| 07000-02018 | [1] | O-RING,GAUGE | |
| 101-11-13210 | [1] | GASKET,TUBE | |
| 101-11-13160 | [1] | GASKET,SUMP | |
| 101-11-13180 | [1] | GASKET,SUMP | |
| 07000-03022 | [1] | O-RING,PLUG | |
| 101-11-13310 | [2] | GASKET,SCREEN | |
| 07000-03035 | [1] | O-RING,PUMP ASS'Y | |
| 101-11-14140 | [1] | GASKET,CAGE | |
| 101-11-14150 | [1] | SEAL,OIL CAGE | |
| 04059-01020 | [2] | WIRE,BOLT | |
| 2 | 102-12-05010 | [1] | SERVICE KIT,DAMPER |
| 103-12-11121 | [1] | GASKET,CNH | |
| 07005-03016 | [1] | GASKET,BLEEDER | |
| 103-12-12130 | [1] | SEAL,COVER | |
| 07000-02070 | [1] | O-RING,COVER | |
| 3 | 101-14-05032 | [1] | SERVICE KIT,TRANSMISSION |
| 102-14-11130 | [1] | GASKET,COVER | |
| 102-14-11151 | [1] | GASKET,ACCESS COVER | |
| 07000-03068 | [1] | O-RING,COVER | |
| 07012-00040 | [1] | SEAL,OIL COVER | |
| 07000-03082 | [1] | O-RING,COVER | |
| 07000-03078 | [1] | O-RING,CAGE | |
| 07000-05220 | [1] | O-RING,CNH | |
| 04059-01010 | [3] | WIRE | |
| 4 | 103-15-05100 | [1] | SERVICE KIT,TRANSMISSION |
| 07000-02080 | [1] | O-RING,CAGE | |
| 07000-03030 | [1] | O-RING,STRAINER | |
| 07000-02055 | [1] | O-RING,STRAINER | |
| 07000-02016 | [2] | O-RING,SLEEVE | |
| 07000-03025 | [5] | O-RING,SLEEVE | |
| 07000-02012 | [5] | O-RING,SLEEVE | |
| . | |||
| 103-15-11120 | [2] | GASKET,PLATE | |
| 5 | 103-15-05910 | [1] | SERVICE KIT,TRANSMISSION ACCESSORY |
| 07000-02020 | [2] | O-RING,TUBE | |
| 6 | 103-15-05300 | [1] | SERVICE KIT,SELECTOR VALVE |
| 07000-01009 | [2] | O-RING,BODY | |
| 07000-02014 | [12] | O-RING,BODY | |
| 07000-03028 | [2] | O-RING,RETAINER | |
| 07000-02015 | [1] | O-RING,RETAINER | |
| 07000-02008 | [2] | O-RING,DETENT | |
| 7 | 103-15-05400 | [1] | SERVICE KIT,MODULATING VALVE |
| 8 | 101-21-05022 | [1] | SERVICE KIT,STEERING CNH |
| 101-21-11160 | [1] | GASKET,PLATE | |
| 07049-01012 | [4] | PLUG,MAIN FRAME | |
| 07000-03032 | [2] | O-RING,PLUG | |
| 07049-01418 | [8] | PLUG,MAIN FRAME | |
| 9 | 101-21-05100 | [1] | SERVICE KIT,BEVEL GEAR AND SHAFT |
| 101-21-11330 | [4] | LOCK,SHAFT | |
| 07000-03110 | [2] | O-RING,CAGE | |
| 07012-11065 | [2] | SEAL,OIL | |
| 07000-03088 | [2] | O-RING,COUPLING | |
| 11 | 103-21-05010 | [1] | SERVICE KIT,STEERING CNH |
| 103-21-11150 | [1] | GASKET,TUBE GAUGE | |
| 12 | 101-27-05100 | [2] | SERVICE KIT,FINAL DRIVE |
| 101-27-11131 | [1] | GASKET,CNH | |
| 07000-03145 | [1] | O-RING,CNH | |
| 101-27-11230 | [1] | PACKING,COVER | |
| 102-27-11220 | [1] | O-RING,RING | |
| 101-27-11440 | [1] | GASKET,FLANGE | |
| 13 | 101-30-05100 | [2] | SERVICE KIT,TRACK FRAME |
| 07016-00558 | [1] | SEAL,DUST COVER | |
| 101-30-21151 | [1] | GASKET,BOX | |
| 101-30-05030 | [1] | SERVICE KIT,FRONT IDLER | |
| 07000-03062 | [2] | O-RING,BUSHING | |
| 101-30-05040 | [5] | SERVICE KIT,TRACK ROLLER | |
| 100-30-15140 | [2] | O-RING,SHAFT | |
| 101-30-05050 | [1] | SERVICE KIT,CARRIER ROLLER | |
| 07000-03052 | [1] | O-RING,COVER | |
| 15 | 101-820-0501 | [1] | SHOE BOLT AND NUT K. |
| 101-820-7210 | [50] | BOLT SHOE | |
| 01803-01218 | [50] | NUT SHOE | |
| 16 | 101-40-05010 | [1] | SERVICE KIT,STEERING BOOSTER |
| 101-40-11640 | [1] | GASKET,BOX | |
| 101-40-11560 | [1] | GASKET,BRACKET | |
| 101-40-11590 | [2] | GASKET,COVER | |
| 17 | 103-43-05010 | [1] | SERVICE KIT,STEERING BOOSTER |
| 18 | 103-49-05010 | [1] | SERVICE KIT,TRANSMISSION OIL LINE |
| 07000-02075 | [1] | O-RING,COVER | |
| 07000-02010 | [1] | O-RING,BOLT | |
| 07000-02021 | [1] | O-RING,TUBE | |
| 103-49-13120 | [2] | GASKET,COVER | |
| 21 | 101-811-0521 | [1] | SERVICE KIT,MARK AND PLATE |
| 101-14-11190 | [1] | PLATE OPERATING,GEAR SHIFT LEVER | |
| 09683-00060 | [1] | PLATE OPERATING | |
| 101-819-2110 | [1] | CHART OIL | |
| 09691-02204 | [2] | PLATE MARK | |
| 09653-00080 | [1] | PLATE SAFETY | |
| 09655-00120 | [1] | PLATE INSTRUCTION | |
| 09692-02204 | [1] | PLATE MARK | |
| 09690-00355 | [2] | PLATE MARK | |
| 112-60-13620 | [1] | PLATE OPERATING,BLADE CONTROL | |
| 22 | 101-60-05050 | [1] | SERVICE KIT,HYDRAULIC TANK |
| 07002-02434 | [1] | O-RING,PLUG | |
| 130-60-42181 | [1] | GASKET,TANK | |
| 130-60-42180 | [1] | GASKET,TANK | |
| 130-09-11450 | [1] | SEAL,OIL TANK | |
| 24 | 101-60-05100 | [1] | SERVICE KIT,HYDRAULIC FILTER |
| 07000-13072 | [1] | O-RING,COVER | |
| 102-60-15130 | [1] | RING,BACK-UP COVER | |
| 25 | 701-11-05010 | [1] | SERVICE KIT,CONTROL VALVE |
| 07000-13025 | [4] | O-RING,BODY | |
| 07000-12015 | [8] | O-RING,BODY | |
| 07000-13028 | [1] | O-RING,BODY | |
| 07000-23032 | [1] | O-RING,HOUSING | |
| 07000-13032 | [1] | O-RING,HOUSING | |
| 07000-23030 | [1] | O-RING,SEAT | |
| 07000-13030 | [1] | O-RING,SEAT | |
| 07000-13017 | [2] | O-RING,PLUG | |

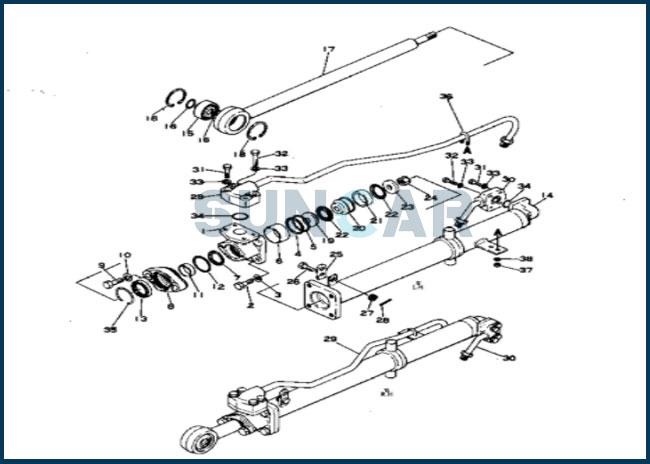

| 27 | 101-870-0510 | [2] | SERVICE KIT,BLADE CYLINDER |
| 101-63-12660 | [1] | RING,BACK-UP | |
| 07146-02051 | [1] | RING,BACK-UP | |
| 07000-13045 | [1] | O-RING,CYLINDER HEAD | |
| 07000-12050 | [1] | O-RING,CYLINDER HEAD | |
| 10E-63-96540 | [1] | U-PACKING,CYLINDER HEAD | |
| 07195-00503 | [1] | U-PACKING,CYLINDER HEAD | |
| 07000-13050 | [1] | O-RING,GLAND | |
| 07016-00357 | [1] | SEAL,DUST GLAND | |
| 07155-00515 | [1] | RING,WEAR PISTON | |
| 101-63-12450 | [2] | U-PACKING,PISTON | |
| 07157-00503 | [2] | U-PACKING,PISTON | |
| 07000-23025 | [2] | O-RING,TUBE | |
| 30 | 101-62-05100 | [1] | SERVICE KIT,HYDRAULIC OIL LINE |
| 07000-23028 | [1] | O-RING,TUBE | |
| 07000-22018 | [2] | O-RING,TUBE |
