113-15-29220 1131529220 Seal for Transmission KOMATSU Bulldozer
Price:
Negotiable
MOQ:
100 sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
113-15-29220 1131529220 Seal for Transmission KOMATSU Bulldozer
Description:
Gearbox Seal Ring is a key component of the transmission state conversion. The function of the oil ring is to isolate and seal the gearbox oil in
different pressure areas to ensure the accurate movement of the slide valve
| Product Name | 113-15-29220 1131529220 Seal for Transmission KOMATSU Bulldozer |
| Brand | SUNCAR |
| MOQ | Trial order is avaliable |
| Transport ways | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Place of origin |
Guangdong provice,China |
| Loading port | Huangpu port,China |
| Seal type | Hydraulic gasket seal,transmission seal |
| Sample | Provide |
| Supply ability | 550 pcs per week |
| Material | Rubber etc. |
| Seal style | Hydraulic gasket seal;transmission seal |
| Compatible equipment | Bulldozers;Cranes;Crawler loaders ; Excavators ;Graders ;Wheel loaders ; Whinches |
CompliC-A-Ted Models:
| D21A-6 | D21P-5A | D21P-6A |
| D21A-5 | D21P-5 | D21P-6B |
| D21P-6 | D21PL-5 | D21PL-6 |
| D21Q-5 | D21Q-6 | D21QG-6 |
| D21S-5 | D21S-6 | D31A-16 |
| D31AM-20 | D31A-17 | D31A-20 |
| D31E-17 | D31E-20 | D31P-18A |
| D31P-16 | D31P-16A | D31P-17A |
| D31P-18 | D31P-20 | D31P-20A |

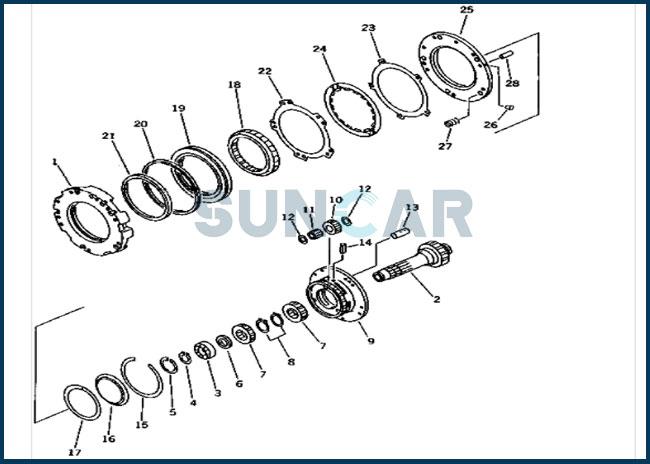

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 104-15-00080 | [1] | TRANSMISSION ASS'Y | |
| 104-15-00040 | [1] | TRANSMISSION ASS'Y | |
| 104-15-00510 | [1] | TRANSMISSION ASS'Y | |
| 104-15-00410 | [1] | TRANSMISSION ASS'Y | |
| 1 | 104-15-21151 | [1] | HOUSING,2ND |
| 2 | 104-15-22131 | [1] | SHAFT |
| 3 | 06000-06007 | [1] | BEARING |
| 4 | 04064-03515 | [1] | RING,SNAP |
| 5 | 04065-06220 | [1] | RING,SNAP |
| 6 | 104-15-22170 | [1] | SPACER |
| 7 | 103-15-22230 | [2] | GEAR |
| 8 | 103-15-29510 | [2] | RING,SNAP |
| 9 | 104-15-22330 | [1] | CARRIER |
| 10 | 103-15-22420 | [3] | GEAR |
| 11 | 103-15-29420 | [3] | BEARING |
| 12 | 113-15-22560 | [6] | WASHER |
| 13 | 103-15-22510 | [3] | SHAFT |
| 14 | 113-15-29560 | [3] | PIN,SPRING |
| 15 | 113-15-29510 | [1] | RING,SNAP |
| 16 | 113-15-22380 | [1] | COVER |
| 17 | 113-15-22930 | [1] | RING,SNAP |
| 18 | 104-15-22650 | [1] | GEAR,RING |
| 19 | 104-15-22761 | [1] | PISTON,2ND |
| 20 | 103-15-29210 | [1] | SEAL,RING |
| 21 | 113-15-29220 | [1] | RING,SEAL |
| 22 | 113-15-22720 | [1] | PLATE |
| 23 | 113-15-22730 | [1] | PLATE |
| 24 | 113-15-42711 | [1] | DISC |
| 24 | 113-15-42710 | [1] | DISC |
| 104-15-00530 | [1] | PLATE ASS'Y | |
| 104-15-00640 | [1] | PLATE ASS'Y | |
| 26 | 113-15-25490 | [1] | PLUG |
| 27 | 104-15-22920 | [5] | SPRING |
| 28 | 113-15-21290 | [2] | PIN,DOWEL |
