124-15-41920 1241541920 Seal Ring for Transmission Bulldozer D65EX-16 WA900-3E0
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
124-15-41920 1241541920 Seal Ring for Transmission Bulldozer D65EX-16 WA900-3E0
Gearbox Seal Ring is a key component of the transmission state conversion. The function of the oil ring is to isolate and seal the gearbox oil in different pressure areas to ensure the accurate movement of the slide valve
| Product Name | 124-15-41920 1241541920 Seal Ring for Transmission Bulldozer D65EX-16 WA900-3E0 |
| Brand | SUNCAR |
| MOQ | Trial order is avaliable |
| Transport ways | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Place of origin |
Guangdong provice,China |
| Loading port | Huangpu port,China |
| Seal type | Hydraulic gasket seal |
| Sample | Provide |
| Weight | 0.02kg |
| Compatible model | WA800-3 WA900-3 |
| Supply ability | 550 pcs per week |
| Material | Rubber etc. |
| Seal Style | Hydraulic gasket sesal;Mechanical Seal |
| Compatible Equipment | Loader,Komatsu,Bulldozer |
AppliC-A-Ted Models:
| D65EX-16 | D65PX-17 | D41A-3 |
| D65PX-16 | D65EX-17 | D41A-5 |
| D65WX-16 | WA900-3E0 | D41E-3A |
| WA800-3E0 | 538 | D41E-3 |
| WA900-3E0 | 542 | D41P-3 |
| D41P-5 | D41P-5A | D41Q-3 |
| D61EX-15E0 | D41S-3 | D61EX-15 |
| D65E-12 | D61PX-15E0 | D63E-12 |
| D61PX-15 |

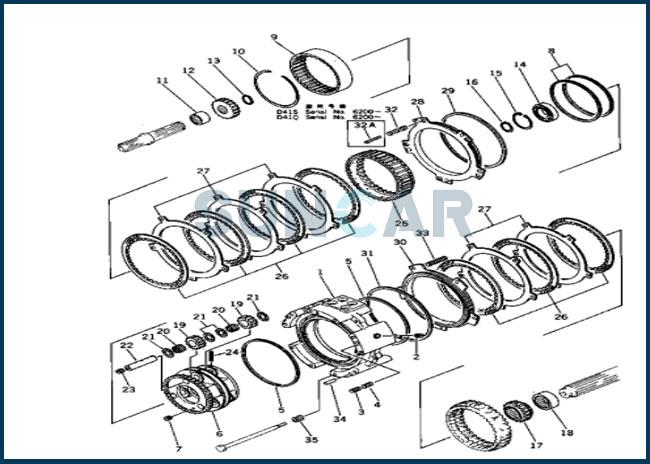

Relative Parts:
| 125-15-00023 | TRANSMISSION ASS'Y | |
| 125-15-00022 | TRANSMISSION ASS'Y | |
| 125-15-00021 | TRANSMISSION ASS'Y | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.251 TO 262A. | ||
| 125-15-00032 | • TRANSMISSION ASS'Y | |
| 125-15-00031 | • TRANSMISSION ASS'Y | |
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.251 TO 257. | ||
| 124-15-00210 | •• HOUSING ASS'Y | |
| 1 | ••• HOUSING | |
| 2 | 568-15-11380 | ••• PLUG |
| 3 | 287-15-15360 | •• PISTON |
| 4 | 234-15-15120 | •• SPRING |
| 5 | 124-15-41910 | •• RING,SEAL (KIT) |
| 124-15-00270 | •• CARRIER ASS'Y | |
| 6 | ••• CARRIER | |
| 7 | 145-14-11320 | ••• PLUG |
| 8 | 07018-12055 | •• RING,SEAL |
| 9 | 124-15-42620 | •• GEAR,RING |
| 10 | 124-15-49510 | •• RING,SNAP |
| 11 | 124-15-42170 | •• SPACER |
| 12 | 124-15-42220 | •• GEAR |
| 13 | 04064-03515 | •• RING,SNAP |
| 14 | 06000-06209 | •• BEARING,BALL |
| 15 | 04065-08530 | •• RING,SNAP |
| 16 | 04064-04518 | •• RING,SNAP |
| 17 | 124-15-42230 | •• GEAR |
| 18 | 124-15-42150 | •• SPACER |
| 19 | 124-15-42420 | •• GEAR |
| 20 | 09232-02525 | •• BEARING,NEEDLE |
| 21 | 09233-12620 | •• WASHER,THRUST |
| 21 | 09233-02620 | •• WASHER,THRUST |
| 124-15-00230 | •• SHAFT ASS'Y | |
| 22 | ••• SHAFT | |
| 23 | 145-14-11320 | ••• PLUG |
| 24 | 04025-00416 | •• PIN,SPRING |
| 25 | 124-15-42630 | •• GEAR,RING |
| 26 | 23S-15-12710 | •• DISC |
| 26 | 124-15-42710 | •• DISC |
| 27 | 124-15-42720 | •• PLATE |
| 28 | 124-15-42740 | •• PISTON |
| 29 | 124-15-41920 | •• RING,SEAL (KI.T) |
| 30 | 124-15-42760 | •• PISTON |
| 31 | 113-15-12870 | •• RING,SEAL |
| 32 | 145-14-12790 | •• SPRING, (L= 59.0) |
| 32A | 124-15-42920 | •• SPRING |
| 33 | 568-15-15390 | •• SPRING |
| 34 | 04020-01228 | •• PIN,DOWEL |
| 35 | 09231-01225 | •• SLEEVE |
