175-15-59270 1751559270 Gearbox Seal Ring For Komatsu Bulldozer Service Kit Transmission D275A/D375A-6/6R/2/3A/1/3D/5/5D
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
175-15-59270 1751559270 Gearbox Seal Ring For Komatsu Bulldozer Service Kit Transmission D275A/D375A-6/6R/2/3A/1/3D/5/5D
Description:
This is the seal of transmission,high quality transmission seal ring gearbox seal ring fits bulldozer KOMATSU
| Product name | 175-15-59270 1751559270 Gearbox Seal Ring |
| Brand | SUNCAR |
| Part number | 175-15-59270 1751559270 |
| MOQ | Trial order is avaliable |
| Transport ways | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Place of origin |
Guangdong province,China |
| Loading port | Huangpu port,China |
| Seal type | Hydraulic gearbox seal;Transmission seal ring |
| Sample | Provide |
| Supply ability | 550 pcs per week |
| Material | PTFE etc. |
| Seal style | Hydraulic gasket seal;Transmission seal;Gearbox seal |
| Fit equipment | Bulldozer |
Material:
| Material | Oil resistance | Abrasion resistance | Low temperature | High temperature | Acid resistance | Weather resistant |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
AppliC-A-Ted Model:
| D375A-6 | D275A-2 | D375A-3A |
| D375A-1 | D375A-3D | D375A-2 |
| D375A-3 | D375A-2 | D375A-5 |
| D375A-5D | D375A-5E0 | KOMATSU |

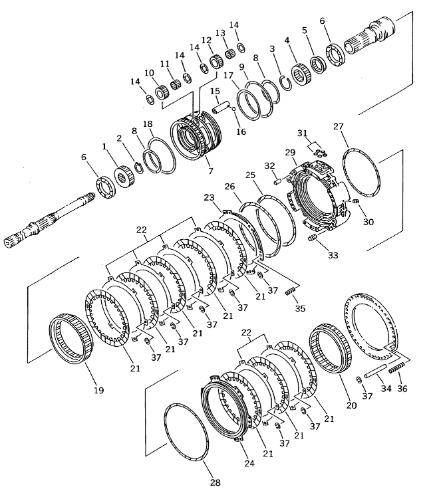

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 17M-15-00072 | [1] | TRANSMISSION AS | |
| 17M-15-00071 | [1] | TRANSMISSION ASSY | |
| 17M-15-00070 | [1] | TRANSMISSION ASSY | |
| 1. | 195-15-42230 | [1] | GEAR |
| 2. | 04064-07525 | [1] | RING,SNAP |
| 3. | 04070-00105 | [1] | RING,SNAP |
| 4. | 195-15-42221 | [1] | GEAR |
| 4. | 195-15-42220 | [1] | GEAR |
| 5. | 195-15-42150 | [1] | COLLAR |
| 6. | 06000-06924 | [2] | BEARING,BALL |
| 7. | 195-15-42324 | [1] | CARRIER |
| 8. | 195-15-49240 | [2] | RING,SEAL |
| 9. | 195-15-49281 | [1] | RING,SEAL |
| 10. | 195-15-42431 | [4] | GEAR |
| 10. | 195-15-42430 | [4] | GEAR |
| 11. | 195-15-49430 | [4] | BEARING,NEEDLE |
| 12. | 195-15-42421 | [4] | GEAR |
| 12. | 195-15-42420 | [4] | GEAR |
| 13. | 195-15-49420 | [4] | BEARING,NEEDLE |
| 14. | 195-15-42880 | [16] | WASHER,THRUST |
| 15. | 195-15-42520 | [4] | SHAFT |
| 16. | 04260-00635 | [4] | BALL |
| 17. | 195-15-49530 | [1] | RING |
| 18. | 195-15-49520 | [1] | RING |
| 19. | 195-15-42632 | [1] | GEAR |
| 20. | 195-15-42622 | [1] | GEAR |
| 21. | 195-15-42721 | [8] | DISC |
| 22. | 195-15-42780 | [6] | PLATE |
| 23. | 195-15-42764 | [1] | PISTON,FORWARD |
| 23. | 195-15-42763 | [1] | PISTON,FORWARD |
| 24. | 17M-15-22750 | [1] | PISTON,3RD |
| 25. | 175-15-59270 | [1] | RING,SEAL (K2) |
| 26. | 195-15-39210 | [1] | RING,SEAL (K2) |
| 27. | 582-15-19250 | [1] | RING,SEAL (K2) |
| 28. | 195-15-29220 | [1] | RING,SEAL (K2) |
| 17M-15-00240 | [1] | HOUSING ASSY | |
| 30 | 145-14-11320 | [2] | PLUG |
| 31. | 07000-73022 | [5] | O-RING (K5) OEM |
| 32. | 04020-01228 | [2] | PIN,DOWEL |
| 33. | 561-15-51310 | [17] | SLEEVE |
| 34. | 135-15-22820 | [6] | PIN |
| 35. | 145-14-33731 | [12] | SPRING, (L= 70.0) |
| 36. | 195-15-32950 | [12] | SPRING |
| 37. | 175-15-42880 | [48] | SPRING |
