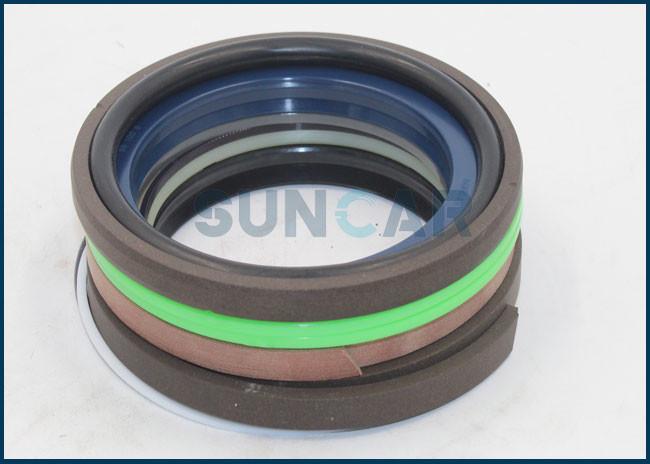

331/39036 331-39036 33139036 JCB Ram Cylinder Seal Kit for JS220

Description: JS210 Boom Cylinder Serial# 01018001-01020001, 01202500-01204022

01503300-01504499, 01701500-01702499, 01610000-01612499 &

01613000-01613999

85mm Rod x 125mm Bore

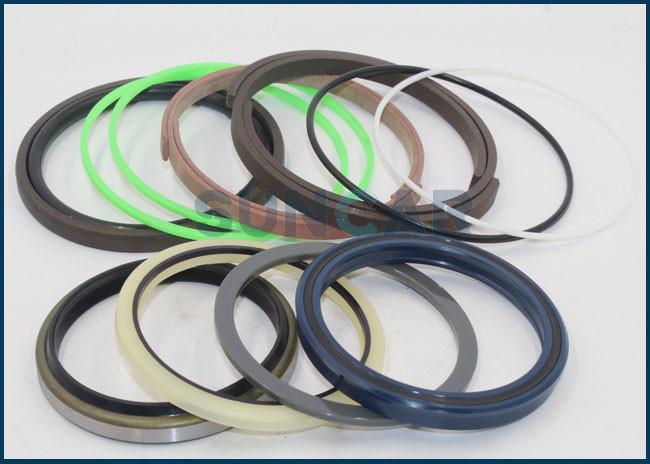

Includes Wiper, U seal, Buffer and Piston seals

Aftermarket seal kit

How To Place Order:

1. Inquiry.

2. The sales made an inquiry to the sales manager.

3. Reply.

4. Business negotiation.

5. Make a deal.

6. Make payment.

7. Receice payment.

8. Warehouse department checking and packing the products.

9. Delivery(Your forwarder or we find forwarder by expresss shipping).

10. You receiced the products.

11. After-sale follow up service.

12. Time to reorder.

Relative Parts on Group:

A. 331/32714 [2]

Ram boom 125mm cyl x 85mm rod For boom ram pipwork see E1-24-1

1. 903/20735 [1]

Cylinder boom ram

1-1. 331/11849 [1]

Bush pin bushing

2. 331/36620 [1]

Rod piston, boom ram

2-1. 331/11841 [1]

Bush pin bushing

3. 331/36623 [1]

Head assembly, boom ram

4. LMU0135 [1]

Ring snap

5. LKU0087 [1]

Bush

6. 331/39036 [1]

Kit-ram seal 125 x 85

7. LAU0102 [1]

Ring u

8. LBU0042 [1]

Ring back-up

9. LAU0172 [1]

Seal wiper

10. LBQ1203 [1]

O Ring

11. LBU0053 [1]

Ring back-up

12. 331/37590 [1]

Seal cushion

13. LEU0019 [1]

Kit-seal piston head

13. LAU0187 [1]

Ring wiper

14. LBU0100 [2]

Ring back-up

15. 331/36625 [1]

Ring buffer

16. 903/20736 [2]

Ring slide

17. LEU0005 [2]

Ring slide

18. LMU0234 [1]

Shim

19. 6004/3715Z [12]

Capscrew

20. 331/36626 [1]

Ring cushion

21. 983/10619 [1]

Nut

22. LUU0100 [1]

Screw set

23. LPU0074 [1]

Ball steel

24. LPU0099 [1]

Piston

25. LAU0130 [2]

Seal wiper Dump end seal

25. LAU0085 [2]

Ring wiper Eye end seal

26. M01X0812 [1]

Nipple grease

26. JHP0037 [1]

Nipple Grease Straight
