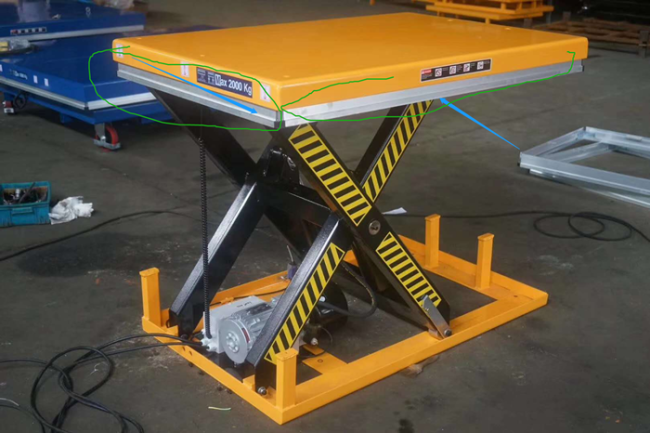

1000kg - 2000kg Fixed Semi Electric Lifting Platform Table Size 1600x1200mm
1000kg-2000kg Fixed semi-electric lifting platform Table size 1600*1200mm
SIZE INFORMATION
|
Fixed semi-electric lifting platform |
||||||
| Capacity(kg) | Max. lifting height(mm) | Table size(mm) | Min height(mm) | Scissor size(mm) | Motor(V/Kw) | Cylinder diameter |
| 1000 | 1000 | 1300*850 | 205 | 100*50*5 | 380/1.1 | 85*1 |
| 1000 | 1780 | 1300*850 | 305 | 100*50*5 | 380/1.5 | 65*2 |
| 2000 | 1000 | 1300*850 | 230 | 120*60*6 | 380/2.2 | 85*1 |
| 2000 | 1780 | 1300*850 | 360 | 120*60*6 | 380/2.2 | 85*2 |
| 1000 | 860 | 1450*1140 | 85 | 30*70 | 380/1.1 | 70*2 |
| 1500 | 870 | 1600*1180 | 105 | 30*90 | 380/2.2 | 85*2 |
| 1000 | 860 | 1450*1140 | 85 | 30*70 | 380/1.1 | 70*2 |
| 2000 | 870 | 1600*1200 | 105 | 30*90 | 380/2.2 | 85*2 |
DESCRIPTION
- Adopt imported high-quality pumping stations to make the goods stand up steadily and powerfully.
- The safety bar device is installed under the countertop. When the countertop is lowered, obstacles will stop descending to ensure safety.
- Detachable lifting rings for easy platform truck transportation and installation.
- The shaft parts of the rotary drive shaft are provided with lubricant bushings for maintenance-free operation.
- Using anti-clipping scissors fork design to prevent pinching, with overload protection, more reliable and more secure.
- The hydraulic system is equipped with an explosion-proof valve, which prevents the platform car from rapidly descending when the fuel pipe bursts.
- Safety wedge block for easy maintenance.
- Widely used in manufacturing, maintenance and other industries.
- There is a safety device under the countertop to ensure that the obstacles stop falling when the countertop descends and employees' safety is guaranteed.
PRODUCTION DETAILS
PACKING&SHOPING
PRODUCTION SCENE
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.And accepted Payment Type: L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Q6: What can I get from cooperating with Herrman?
A6: 1). Unique products, with customized service.
2). Timely production and delivery, time is money.
3). Market protection service, long term business strategy.
Q7: how can we guarantee quality?
A7: 1).Always a pre-production sample before mass production.
2). Always final Inspection before shipment.
Q8: what services can we provide?
A8:1). Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
2). Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
3). Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
