Full Electric Pallet Truck Capacity 2000KG 12V / 120Ah
Full Electric Pallet Truck Capacity 2000KG Battery Voltage/Capacity 2*12V/120Ah
Size Information
| Full Electric Pallet Truck(Stand Type) HM CBD20Y | ||||
| Basic parameters | 1 | Model | / | HM CBD20Y |
| 2 | Drive form | / | Electric | |
| 3 | Driving style | / | Stand type | |
| 4 | Rated load | kg | 2000 | |
| 5 | Load center | mm | 600 | |
| 6 | Wheelbase | mm | 1380 | |
| 7 | Self weight (including battery) | kg | 500 | |
| Wheel | 1 | Tire | Polyurethane wheel | |
| 2 | Drive wheel size (diameter X width) | mm | Ø2250X80 | |
| 3 | Front wheel size (diameter X width) | mm | Ø80X60 | |
| 4 | Balance size (diameter X width) | mm | Ø2125X50 | |
| 5 | Number of wheels (front/rear) (X two driving wheels) | 1x+2/4 | ||
| 6 | Front track | mm | 500 | |
| 7 | Ding rear track | mm | 616 | |
| Basic size | 1 | Total height | mm | 1480 |
| 2 | Lifting height | mm | 200 | |
| 3 | Height of forks from the ground (at the lowest time) | mm | 85 | |
| 4 | The height of the operating handle from the ground (maximum/minimum) | mm | 1480/1050 | |
| 5 | Vehicle length (stowed/down pedal) | mm | 1800/2200 | |
| 6 | Vehicle width | mm | 852 | |
| 7 | Fork size | mm | 55/180/1200 | |
| 8 | Outer width of fork | mm | 680 | |
| 9 | Minimum ground clearance | mm | 30 | |
| 10 | Right-angle stacking aisle width, pallet 1000x1200 (1200 along the fork side) | mm | 2450 | |
| 11 | Turning radius (pedal retracted) | mm | 1680 | |
| Performance | 1 | Driving speed full load/no load | km/h | 1680 |
| 2 | Maximum lifting speed without load | mm/ s | 50 | |
| 3 | Maximum lifting speed with full load | mm/ s | 40 | |
| 4 | Maximum gradeability full load/no load | % | 3/5 | |
| 5 | Braking method | Electromagnetic brake | ||
| Electric machine | 1 | Drive motor power | kw | AC1.5 |
| 2 | Increase motor power | kw | DC2.2 | |
| 3 | Battery voltage/capacity | V/Ah | 2*12V/120Ah | |
Description
1. Mechanical steering, comfortable, economical and more reliable.
2. Regenerative braking function, stable braking, power saving and durable.
3. AC motor, good heat dissipation, maintenance-free, long life.
4. Emergency reverse, effective protection of operators.
Feature
1. Electronic control system
The electronic control system used by this truck is sensitive, ensuring a high reliability.
2. Regenerative braking
The regenerative braking control system can transform and store the kinetic energy during braking, thus saving energy. This also increases the endurance mileage, reduces brake pad wear and reduces the failure rate and usage costs.
3. The inside of the driving unit is equipped with a floating mechanism to ensure truck reliability and stability, meaning the
truck runs in a stable manner without over turning.
4. Multifunctional handle
The multifunctional handle . The operators can control the moving speed easily through the use of the handle, which is equipped with an emergency reverse button. This effectively protects the operator against injury in the event of an accident. The handle can achieve braking in both vertical and horizontal positions, thus improving the tugger safety.
5. Emergency reversing button on the handle
This truck can carry out emergency reversing. During the backward movement, once the back of the operator touches something, the operator will naturally hit the reverse button on the handle with their body. The truck will then immediately reverse, thus protecting the operator against injury.
6. Emergency power-off switch
The power can be rapidly cut off in an emergency to ensure safety.

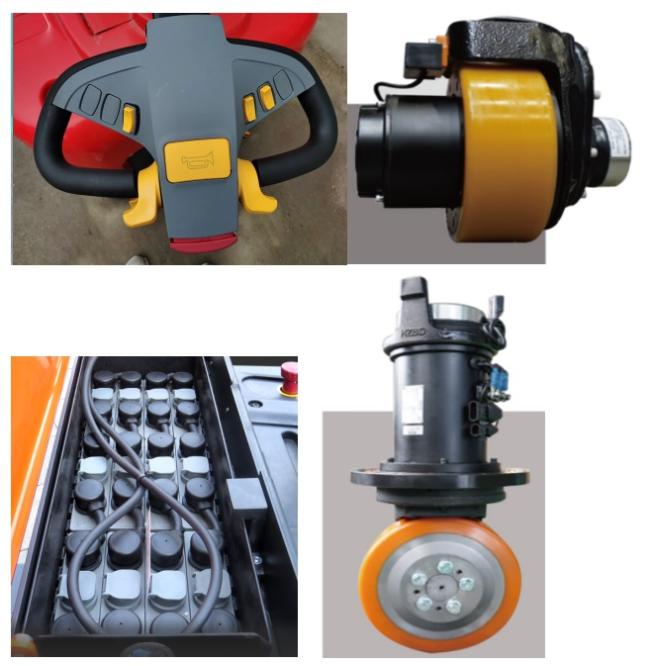

Product Detail
Production Scene
