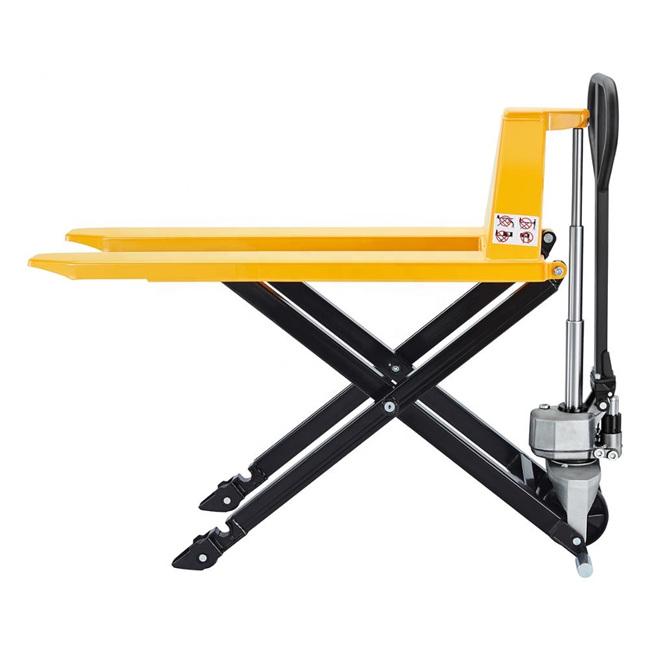

Hydraulic 2200lbs 1000kg capacity Scissor manual pallet truck
Hydraulic 2200lbs 1000kg capacity Scissor manual pallet truck JF
Manual pallet truck Features:
• ldeal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
• Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
• Support legs come into operation automatically.
• It prevents the unit from moving when the forks are raised to keep the safety of the operator.
• Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.
• 210 degree turning radius.
• 2 lateral stabilizers when raised ensure good stability.
• Option: Stainless Steel.
Manual pallet truck advantages:
2.Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
3.Support legs come into operation automatically.
4.It prevents the unit from moving when the forks are raised to keep the safety of the operator.
5.Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.
6.210 degree turning radius.
7.2 lateral stabilizers when raised ensure good stability.

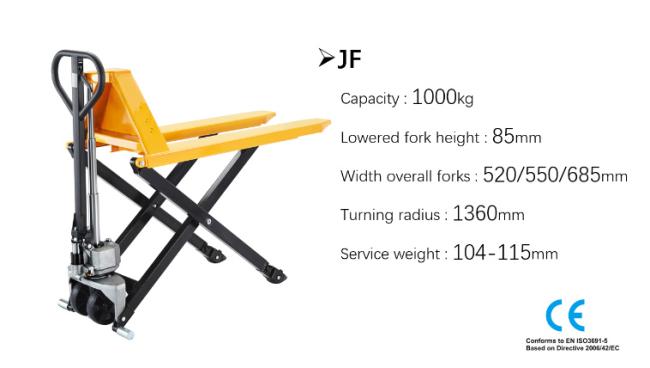

size information:
| Model | JF | JF7 | |
| Capacity | Q(KGS) | 1000 | 1000 |
| Lowered fork height | h13(mm) | 85 | 85 |
| Steering wheel | mm | Φ180×50 | Φ180X50 |
| Fork wheel | mm | Φ74x50 | Φ74X50 |
| Fork length | l(mm) | 1150 | 1220 |
| Width overall forks | b5(mm) | 520/550/685 | 550/685 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1715 | 1985 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1765 | 1985 |
| Turning radius | Wa(mm) | 1360 | 1670 |
| Service weight | kg | 104-115 | 104-115 |

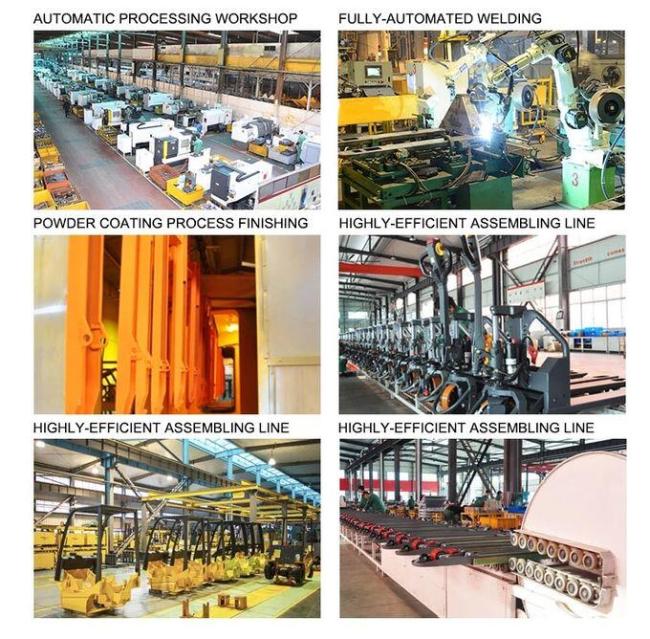

PRODUCTION SCENE
PACKING&SHOPING
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
