Hydraulic Hand Pallet Truck 5500lbs 2500kgs Capacity Manual Pallet Jack truck --BF
Hydraulic Hand Pallet Truck 5500lbs 2500kgs Capacity Manual Pallet Jack truck --BF

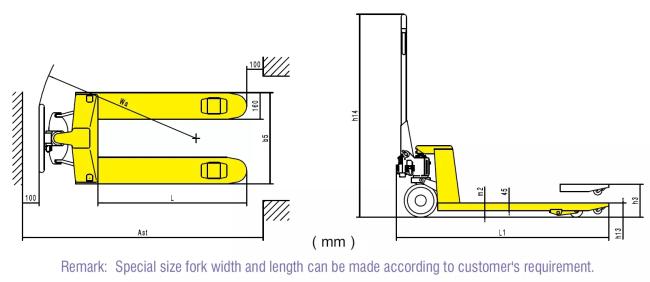

Size Information
| Model | BF | |||
Capacity |
(kg) | 2500/3000 | 2500/3000 | |
| Lowered fork height |
h13
|
(mm) | 85 | 75 |
| Max. lift height |
h3
|
(mm) | 200 | 190 |
| Height of tiller in drive position Max. | h14 | (mm) | 1224 | 1214 |
| Fork length | I | (mm) | 1100/1150/1220 | 1100/1150/1220 |
| Overall length |
1I
|
(mm) | 1483/1533/1603 | 1483/1533/1603 |
| Width overall forks |
b5
|
(mm) | 520/550/685 | 520/550/585 |
| Ground clearance,centre of wheelbase | m2 | (mm) | 40 | 30 |
| Turning radius | wa | (mm) | 1216/1266/1336 | 1216/1266/1336 |
| Truck weight | kg | 60-75 | 60-75 |
|

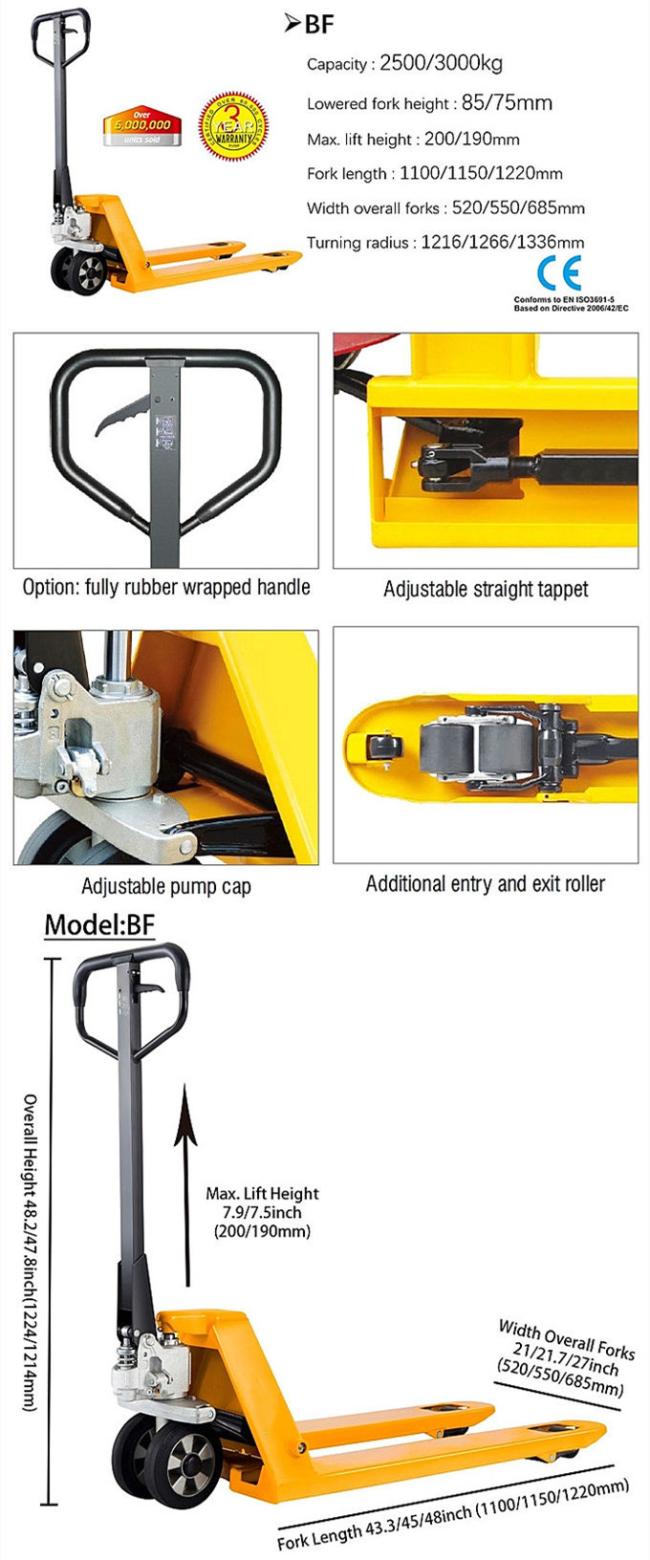

Hand pallet truck BF information:
●Most standard and popular model with capacity 2500-3000kgs.
●With Copping Supporting NOG & strengthening ribbing under top triangle cover.
●Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
●210 steering arc, and small turning radius.
●Fork Lowering speed is controllable, operated by hand control and foot pedal.
●Entry/exit roller, more freely travel.
●Equipped with over-load valve, with long service time.
●3 position hand control-Raise, Lower, Neutral.
●12 lubrication grease nipples on all movable parts for easy maintenance.
●Adjustable pump cap ensures a long service life.
●Ergonomic large rubber handle with three control lever.

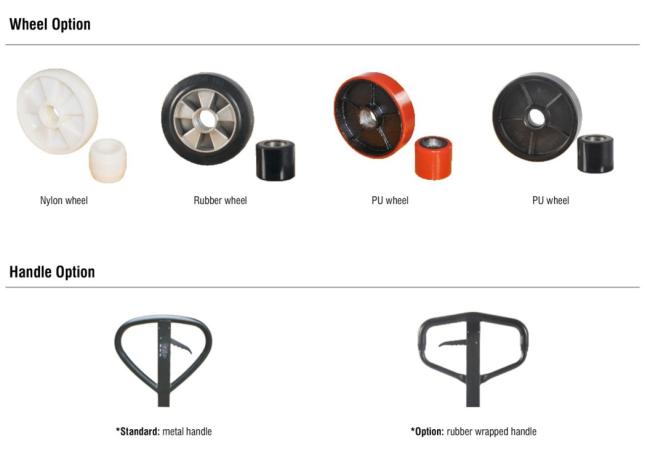

●Option: 1)Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
2)Fork length: 800mm, 900mm, 1000mm.
3)Foot pedal release.
4)Pump color: black painting, silver painting.
Hand pallet truck BFsize information:
Advantages:
1.With Copping Supporting NOG & strengthening ribbing under top triangle cover.
2.Complete pump design with reliable leak-proof pump eliminating maintenance and extending the service time.
3.210 steering arc, and small turning radius.
4.Fork Lowering speed is controllable, operated by hand control and foot pedal.
5.Entry / exit roller, more freely travel.
6.Equipped with over-load valve, with long service time.
7.3 position hand control - Raise, Lower, Neutral.
8.12 lubrication grease nipples on all movable parts for easy maintenance.
9.Adjustable pump cap ensures a long service life.
10.Ergonomic large rubber handle with three control lever.
Option:
* Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
* Fork length: 800mm, 900mm, 1000mm.
* Foot pedal release.
* Pump color: black painting, silver painting.
Remark: Special size fork width and length can be made according to customer's requirement.
PACKING&SHOPING
PRODUCTION SCENE
FAQ
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
