Lithium battery 48V/20Ah 1200kg capacity max lift height 110mm powered Pallet Truck
Lithium battery 48V/20Ah 1200kg capacity max lift height 110mm powered Pallet Truck
Li-ion powered pallet truck CBD12W-Li information:
●Large capacity Lithium Battery 48V/20Ah, working time is 4-6 hours .
●External charger with fast charging.
●Drive motor is Hub type with disc brake , brushless.
●Drive motor capacity is 0.6KW
●Balance wheel is floating type .

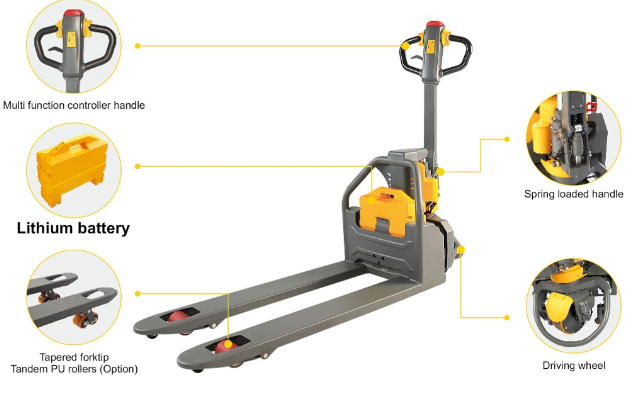

Multi-function Control Handle
incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch for ease of use.
●Ergonomic Spring-loaded
steering handle with comfort grip for reduced operator fatigue.
●Long Tiller with Large Hand Grip
for easy and comfortable hold, strain-free operation.
●Plug-in Battery Design
makes it easier to remove and change, no need additional tools or devices.
●Integrated Rocker Arm
The rocker arm is casted in single piece, intensifying the strength and structure.
●Compact Vehicle Design
Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.
●Less Wiring, Easy Service
Mechanical and electronic components are easy to change and service.
●Brushless Motor
Stepless speed control provides better and smoother speed changing. Brushless motor is easy for maintenance.
Li-ion powered pallet truck CBD12W-Li Size information:
| Model | CBD12W-Li | |
| Load capacity | Q(kg) | 1200 |
| Load center distance | c(mm) | 600 |
| Fork height,lowered | h13(mm) | 80 |
| Tyre size,front | mm | Φ250 |
| Tyre size,rear | mm | Φ80 |
| Wheels,number front rear(x=driven wheels) | 1x2(4) | |
| Max.lift height | h13(mm) | 110 |
| Height of tiller in drive position min./max | h14(mm) | 635/1200 |
| Overall length | I1(mm) | 1623/1693 |
| Length to face of forks | I2(mm) | 473 |
| Overall width | b1(mm) | 550/685 |
| Fork dimensions | s/e/l(mm) | 45/160/1150(1220) |
| Width overall forks | b5(mm) | 550/685 |
| Aisle width for pallets 1000x2000 crossways | Ast(mm) | 2226/2294 |
| Asle width for pallets 800x1200 lengthways | Ast(mm) | 2095/2132 |
| Turning radius | Wa(mm) | 1424/1494 |
| Travel speed,laden/unladen | km/h | 4/4.5 |
| Max.gradeablilty,laden/unladen | % | 5/20 |
| Battery voltage,nominal capacity k | v/AH | 48/20 |
| Battery dimensions I/w/h | mm | 340x130x307 |
| Service weight(with battery) | kg | 140 |
| Battery weight | kg | 8.5 |
PACKING&SHOPING
PRODUCTION SCENE
FAQ
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
