China 1ton 1.2ton 1.5ton 2200lbs 3300lbs 1.6m 2.5m 3m Full Electric Pallet Walkie Straddle Stacker for sale

1ton 1.2ton 1.5ton 2200lbs 3300lbs 1.6m 2.5m 3m Full Electric Pallet Walkie Straddle Stacker

Name: 1ton 1.2ton 1.5ton 2200lbs 3300lbs 1.6m 2.5m 3m Full Electric Pallet Walkie Straddle Stacker
Brand: Anhui Herrman Impex Co., Ltd

Price Negotiable

Price: By negotiation

MOQ: 1SET

Delivery Time: 20days

Brand: HERRMAN

Product Description

Electric Walkie Straddle Stacker Load Capacity 1200kgs Turning radius 1490 Wa(mm)

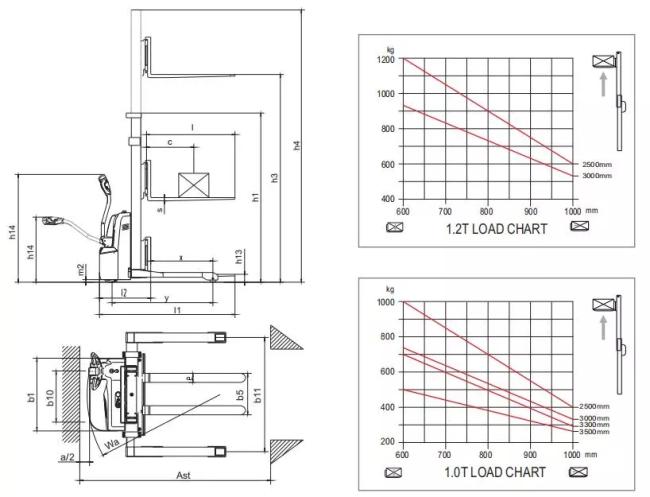

Electric Walkie Straddle Stacker Load Capacity 1200kgs Turning radius 1490 Wa(mm) Specification

Model		CTD10R-E/12R-E
Load capacity	Q(kg)	1200
Load centre distance	c(mm)	600
Load distance,centre of drive axle to fork	x(mm)	770
Height,lowered	h13(mm)	80
Tyre size, front		Φ195×70
Tyre size,rear		Φ98×82
Additional wheel(dimensions)		Φ150×60
Wheels, number front rear(x=driven wheels)		1x+1/4
Height, mast lowered	h1(mm)	2145/1895/2145
Max.lift height	h3(mm)	1600/2500/3000
Height, mast extended	h4(mm)	2145/3100/3600
Height of tiller in drive position min./max	h14(mm)	670/1300
Overall length	l1(mm)	1500
Length to face of forks	l2(mm)	660
Overall width	b1(mm)	1132-1532
Fork dimensions	s/e/l(mm)	35/100/1070(1150)
Width overall forks	b5(mm)	200-800
Ground clearance,centre of wheelbase	m2(mm)	35
Aisle width for pallets 1000×1200 crossways	Ast(mm)	2280
Aisle width for pallets 800×1200 crossways	Ast(mm)	2280
Turning radius	Wa(mm)	1490
Travel speed,laden/unladen	Km/h	4.5/5
Lift speed,laden/unladen	m/s	0.09/0.14
Lowering speed,laden/unladen	m/s	0.12/0.1
Battery voltage, nominal capacity K20	V/Ah	24/105
Battery weight	kg	52(70)
Battery dimensions l/w/h	mm	260(330)x168(171)x217
Service weight(with battery)	kg	490/555/575

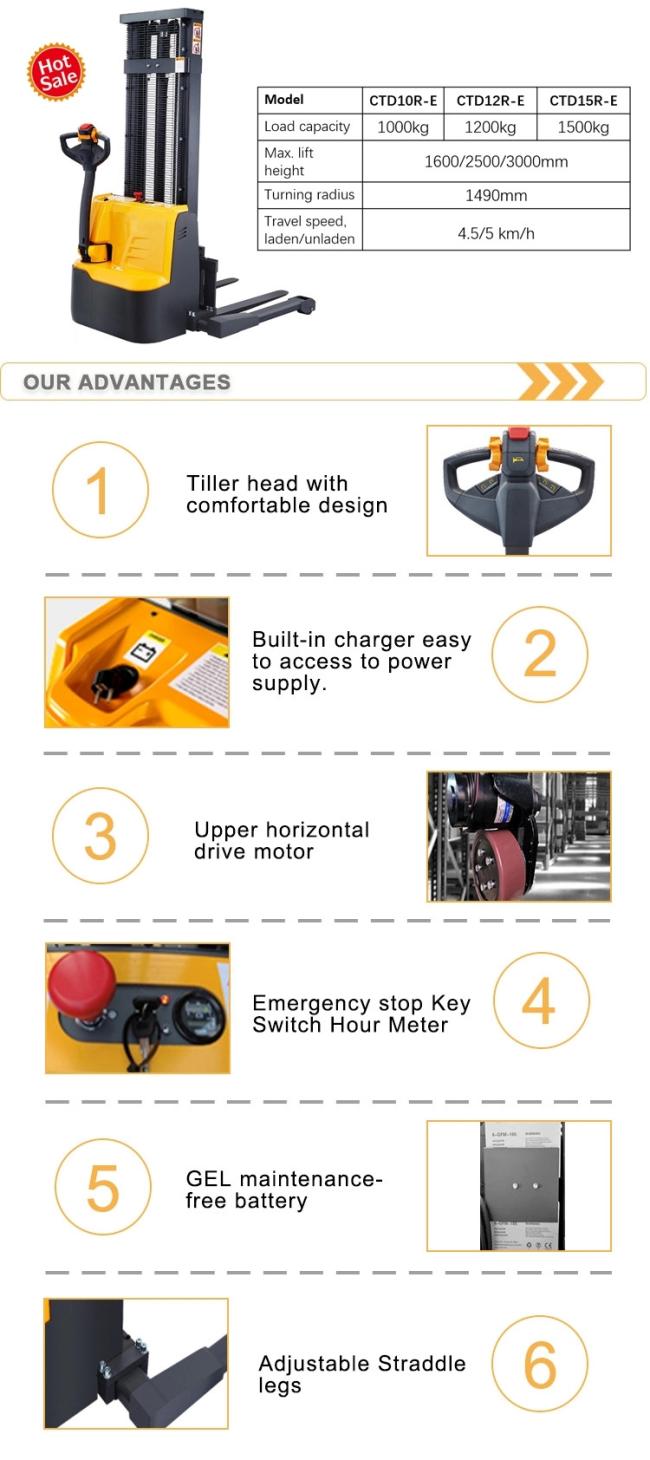

Electric Walkie Straddle Stacker Load Capacity 1200kgs Turning radius 1490 Wa(mm) Advantage:

●Tiller head with comfortable design

●Built –in charger easy to acess to power supply

●Upper horzontal drive motor to make replacing driving wheel easier

●Emergency stop key switch hour meter

●GEL maintenance battery

●Adjustable straddle legs

PACKING&SHOPING

PRODUCTION SCENE

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
