Pink Rare Earth Er2O3 12061-16-4 Erbium Oxide For Porcelain Enamel Glazes
Pink Powder Er2O3 12061-16-4 Erbium Oxide For Porcelain Enamel Glazes
Brief information of erbium oxide
Formula: Er2O3
CAS No.: 12061-16-4
Molecular Weight: 382.56
Density: 8.64 g/cm3
Melting point: 2344° C

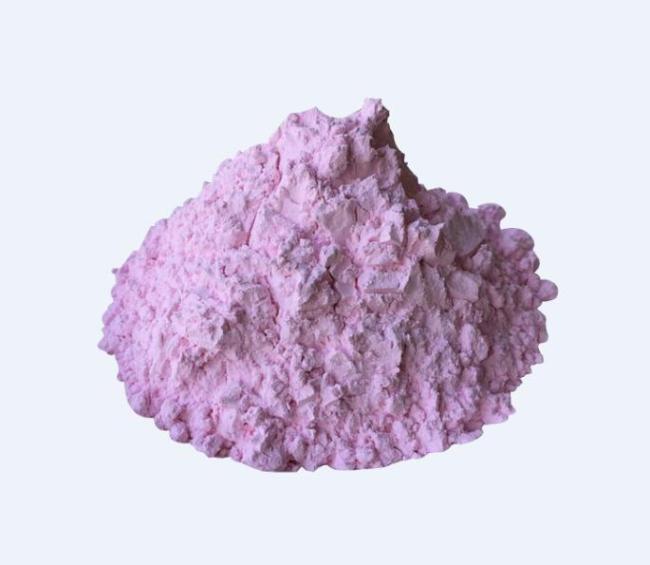

Appearance: Pink powder
Solubility: Insoluble in water, moderately soluble in strong mineral acids
Multilingual: ErbiumOxid, Oxyde De Erbium, Oxido Del Erbio
Application of erbium oxide:
erbium oxide also called Erbia, an important colourant in glasses and porcelain enamel glazes. High purity cerium oxide erbium oxide are widely applied as dopant in making optical fibre and amplifier. It is particularly useful as an amplifier for fiber optic data transfer. cerium oxide erbium oxide has a pink color, and is sometimes used as a colorant for glass, cubic zirconia and porcelain. The glass is then often used in sunglasses and cheap jewelry.
Specification of erbium oxide
| Er2O3 /TREO (% min.) | 99.9999 | 99.999 | 99.99 | 99.9 | 99 |
| TREO (% min.) | 99.5 | 99 | 99 | 99 | 99 |
| Loss On Ignition (% max.) | 0.5 | 0.5 | 1 | 1 | 1 |
| Rare Earth Impurities | ppm max. | ppm max. | ppm max. | % max. | % max. |
| Tb4O7/TREO Dy2O3/TREO Ho2O3/TREO Tm2O3/TREO Yb2O3/TREO Lu2O3/TREO Y2O3/TREO |
0.1 0.1 0.2 0.5 0.5 0.5 0.3 |
2 5 5 2 1 1 1 |
20 10 30 50 10 10 20 |
0.01 0.01 0.035 0.03 0.03 0.05 0.1 |
0.05 0.1 0.3 0.3 0.3 0.1 0.6 |
| Non-Rare Earth Impurities | ppm max. | ppm max. | ppm max. | % max. | % max. |
| Fe2O3 SiO2 CaO Cl- CoO NiO CuO |
1 10 10 50 2 2 2 |
2 10 30 50 2 2 2 |
5 30 50 200 5 5 5 |
0.003 0.01 0.02 0.03 |
0.005 0.02 0.02 0.05 |
