CQC 1500kg Lithium Battery Powered Electric Pallet Stacker Truck
ELECTRIC PALLET TRUCK PRODUCT DESCRIPTION
Small Electric Pallet Truck Lithium Battery Powered Pallet Truck Mini forklift Used in Narrow Aisle Workshop

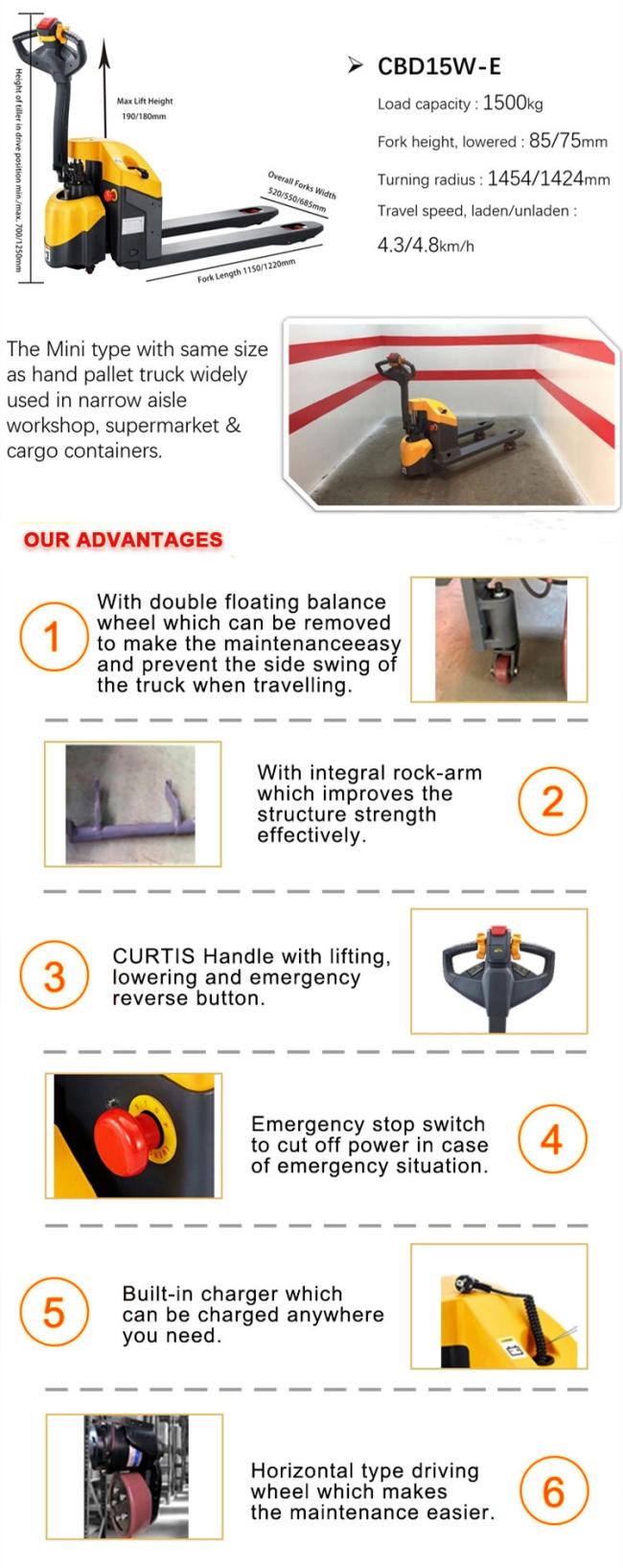

Advantages Description:
The Mini type with same size as hand pallet truck widely used in narrow aisle workshop, supermarket & cargo containers.
●Adopting floating balance wheel can prevent the side swing of the truck when travelling. Travel smoothly and no swing; great anti-vibration.
●The whole balance wheel can be removed, easy to maintain.
●The rock arm mechanism integral structure which improves the structure strength effectively, meanwhile, share and adjust the even force from the fork.
Reduce the obvious deflection in fork height after a long use and when loading.
●The drive wheel adopts horizontal type structure which makes the layout position of the motor higher off the ground to prevent the water,
dust and greasy dirt gluing on the motor effectively and improve working condition of the motor.
●The truck is equipped with a height limit switch.
Cut off the lifting circuit when lifting height approaches the highest point to disconnect the power of the hydraulic power unit to prevent the noise from
the spillover of the hydraulic station and save the energy caused by spillover.
ELECTRIC PALLET TRUCK PRODUCT INFORMATION

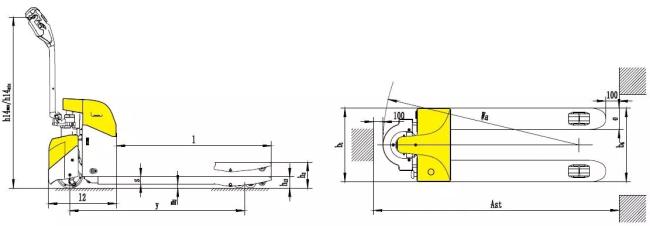

| Model | CBD15W -E | ||
| Load capacity | Q(kg) | 1500 | |
| Load centre distance | c(mm) | 600 | |
| Fork height,lowered | h13(mm) | 8 5 / 7 5 | |
| Tyre size,front | mm | Φ195×70 | |
| Tyre size,rear (single) | mm | Φ80×93 / Φ74×93 | |
| Tyre size,rear (double) | mm | Φ80×70 / Φ74×70 | |
| Wheels, number front rear (x = driven wheels) | 1x-2/4 | ||
| Max. lift height | h3(mm) | 200/190 | |
| Height of tiller in drive position min./max | h14(mm) | 700/1250 | |
| Overall length | I1 (mm) | 1654/1724 | |
| Length to face of forks | l2(mm) | 504 | |
| Overall width | b1(mm) | 685/562 | |
| Fork dimensions | s/e/l(mm) | 53/160/1150(1220) | |
| Width overall forks | b5(mm) | 520/550/685 | |
| Aisle width for pallets 1000×1200(1200crossways) | Ast(mm) | 2260/2328 | |
| Aisle width for pallets 800×1200(1200lengthways) | Ast(mm) | 2128/2365 | |
| Turning radius | Wa(mm) | 1454/1424 | |
| Travel speed, laden/unladen | Km/h | 4.3/4.8 | |
| Battery voltage/nominal capacity K20 | V/Ah | 24/65 | |
| Battery dimensions l/w/h | mm | 228/138/214 | |
| Battery weight | Kg | 36 | |
| Service weight(with battery) | Kg | 205 | |
CE Certified.
FAQ
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
