China 7.1km/H 2.5Ton Walkie Rider Pallet Trucks With Speed Sensor for sale

7.1km/H 2.5Ton Walkie Rider Pallet Trucks With Speed Sensor

Price Negotiable

Price: By Negotiation

MOQ: 1 SET

Delivery Time: 25-30days

Brand: HERRMAN

Product Description

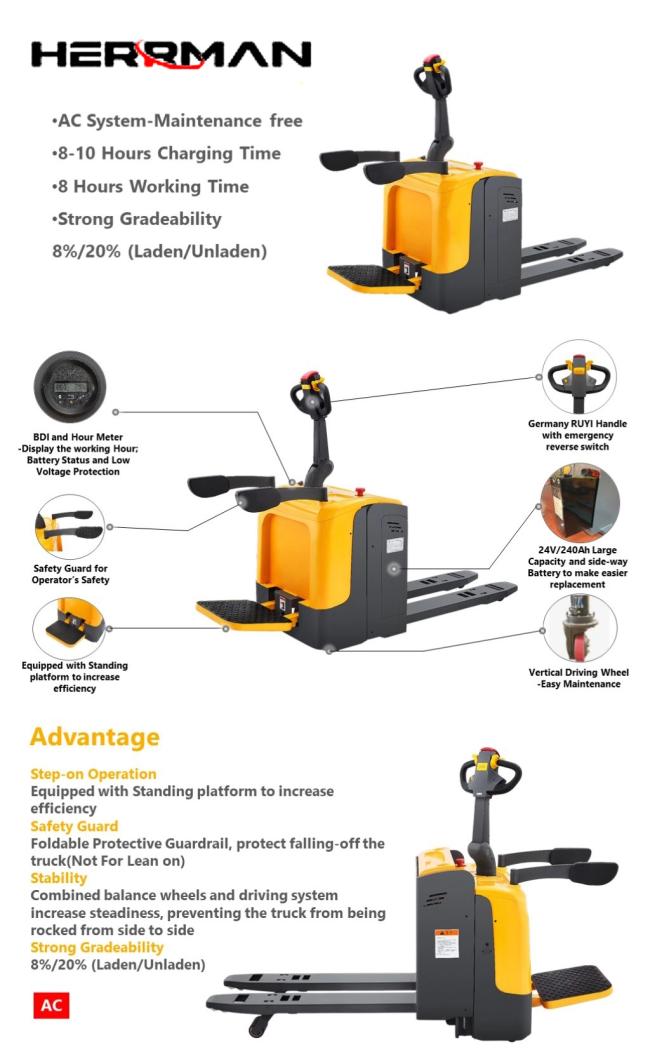

2.5Ton Hydraulic Electric Rider Pallet Jack With Speed Sensor For Large Warehouse Standard features:

* Emergency stop & belly button
* BDI and hour meter
* Casters to balance stablity
* Industrial battery
* Brushless AC motor
* Vertical driving motor
* Sideway battery change
* Built-out charger
* Platform with speed sensor

Option:

* Fork width and length ( size )
* Load backrest
* Built-in Charger
* Cold storage with rubber drive wheel
* Entry & exist roller for empty pallets
* EPS
* large compartment with battery capacity 280Ah, 400Ah
* CBD20R-II/CBD25R-II: Lithium battery 24V/125AH

CBD30R-II: Lithium battery 24V/225AH

size informaiton:

Model			CBD25R-II
Capacity		(lbs)	5500	(kg)	2500
Load centre distance	c	(inch)	23.6	(mm)	600
Fork height, lowered	h13	(inch)	3.2	(mm)	82
Max. lift height	h3	(inch)	8	(mm)	202
Height of tiller in drive position Min/Max.	h14	(inch)	45/56	(mm)	1150/1430
Overall length	l1	(inch)	67.3/69.3/72	(mm)	1710/1760/1830
Length to face of forks	l2	(inch)	24	(mm)	610
Overall width	b1	(inch)	30.5	(mm)	775
Fork dimensions	s/e/l	(inch)	2.1/7.1/43.3/(45.3/48)	(mm)	53/180/1100(1150/1220)
Width overall forks	b5	(inch)	20.5/21/25.6/27	(mm)	520/550/650/685
Aisle width for pallets 1000x1200lengthways	Ast	(inch)	93/94.7/97.4	(mm)	2360/2405/2475
Aisle width for pallets 800x1200lengthways	Ast	(inch)	88.4/89.4/90.7	(mm)	2245/2270/2305
Turning radius	Wa	(inch)	61/63/65.8	(mm)	1550/1600/1670
Travel speed, laden/unladen		(Km/h)	7/7.1	Km/h	7/7.1
Battery Voltage, normal capacity K5	V/Ah		24/240
Truck weight		(lbs)	1650	(kg)	750

PACKING&SHOPING

PRODUCTION SCENE

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
