China 1.5t 3300lbs Li Ion Electric Powered Pallet Truck With Emergency Switch for sale

1.5t 3300lbs Li Ion Electric Powered Pallet Truck With Emergency Switch

Price Negotiable

Price: By Negotiation

MOQ: 1 set

Delivery Time: 25-30 working days

Brand: HERRMAN

Product Description

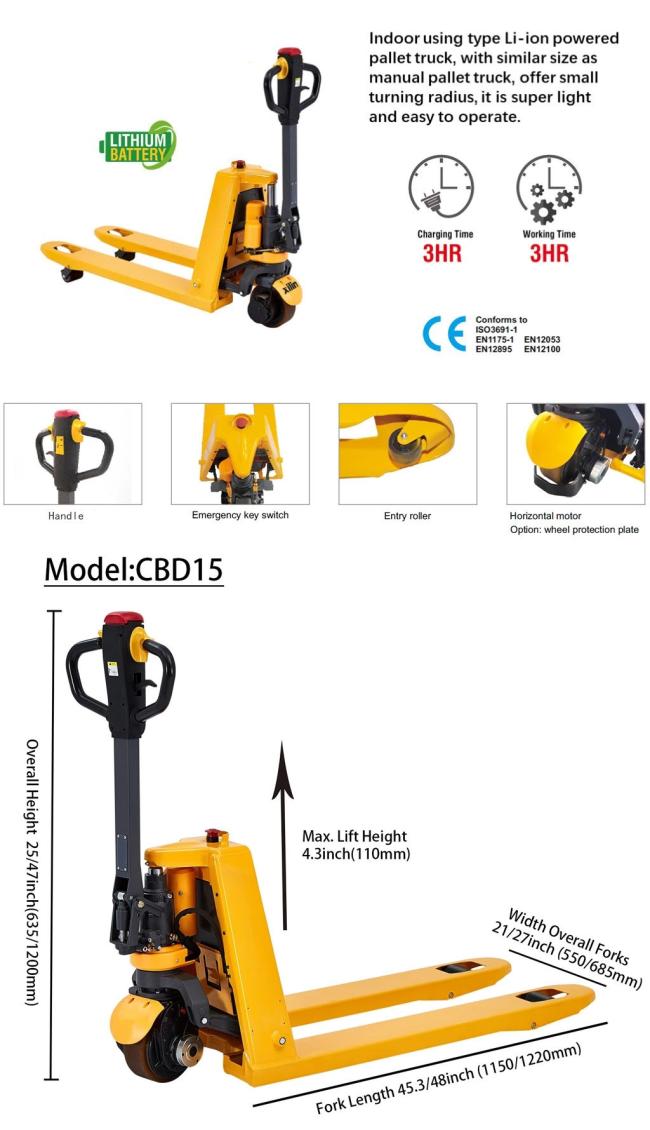

Lithium battery 1.5t 3300lbs Li-ion Powered Pallet truck Advantages:

Standard:
* Lithium battery capacity: 24V/20AH.
* High quality emergency switch ( as key switch).
* Split rocker arm It makes the equable stress in order to keep the long-time using.
* Driving wheel with horizontal mounted motor, convenience to maintain.
* External battery charger connector, can be charged separately even the battery were used out.
* Single fork roller.

Option:
* Big battery capacity: 24V/30AH (LITHIUM)
* Entry roller
* Double fork roller

size information:

Model	CBD15
Capacity	Q(kg)	1500	Q(lbs)	3300
Load centre distance	c(mm)	600	c(inch)	23.6
Fork height, lowered	h13(mm)	80	h13(inch)	3.1
Max. lift height	h3(mm)	110	h3(inch)	4.3
Height of tiller in drive position Min/Max.	h14(mm)	635/1200	h14(inch)	25/47.2
Overall length	l1(mm)	1580/1650	l1(inch)	62.2/65
Length to face of forks	l2(mm)	430	l2(inch)	16.9
Overall width	b1(mm)	550/685	b1(inch)	21/27
Fork dimensions	s/e/l(mm)	53/160/1150(1220)	s/e/l(inch)	2.1/6.3/45.3(48)
Width overall forks	b5(mm)	550/685	b5(inch)	21/27
Aisle width for pallets 1000x1200lengthways	Ast(mm)	2180/2250	Ast(inch)	85.8/88.6
Aisle width for pallets 800x1200lengthways	Ast(mm)	2050/2085	Ast(inch)	80.7/82.1
Turning radius	Wa(mm)	1380/1450	Wa(inch)	54.3/57.1
Travel speed, laden/unladen	(Km/h)	4.3/4.5	(Km/h)	4.3/4.5
Battery Voltage, normal capacity K5	V/Ah	24/20	V/Ah	24/20
Truck weight	(kg)	114	(lbs)	251

PACKING&SHOPING

PRODUCTION SCENE

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
