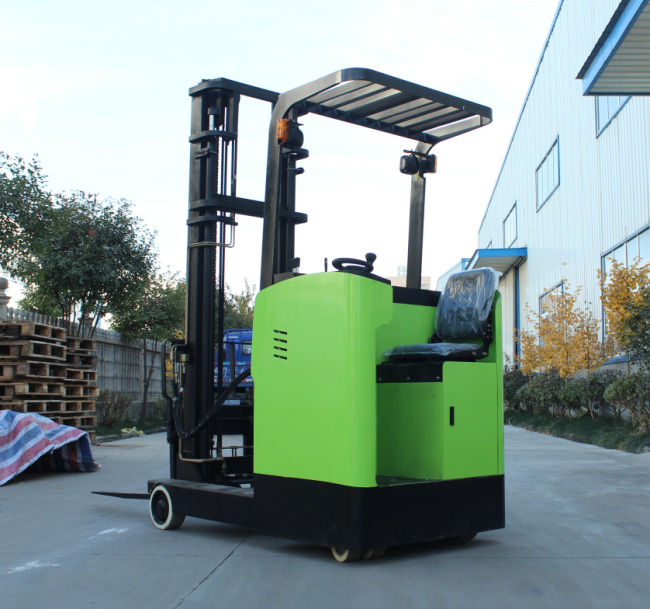

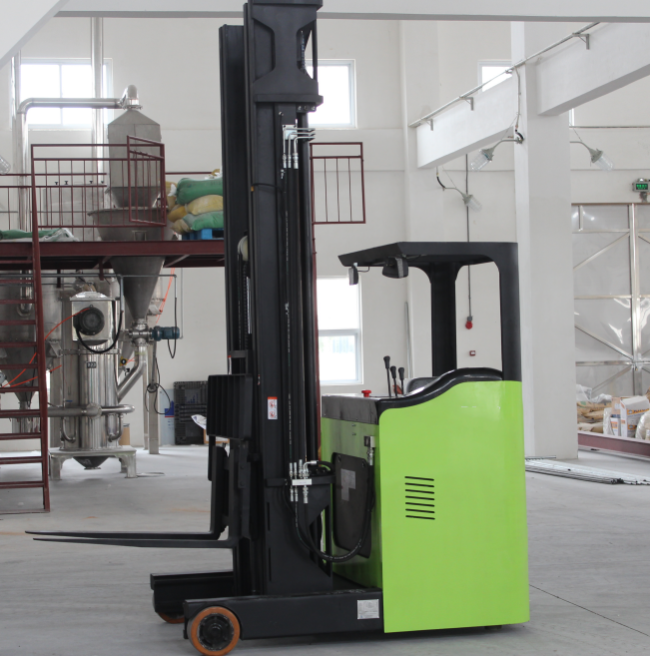

Narrow Channel 48V 2000KG 4500MM Seated EPS Electric Reach Forklift
Hot Sales Narrow Channel Used 48V 2000kg Load Capacity EPS Electric Reach Truck Forklift Powered Pallet Truck
1. SPECIFICATION
| Electric Reach Forklift (Seated Type)48V (HM CQD20E-45) | ||||
| Characteristics | 1.1 | Model No. | HM CQD20E-45 | |
| 1.2 | Power type | Electric | ||
| 1.3 | Operation type | Seated Type | ||
| 1.4 | Load capacity | Q(kg) | 2000 | |
| 1.5 | Load center | C(mm) | 500 | |
| 1.6 | Wheelbase | Y(mm) | 1620 | |
| 1.7 | Reach stroke | L(mm) | 655 | |
| Total weight | 2.1 | Total weight with battery | kg | 3050 |
| Wheel, Chassis | 3.1 | Wheel type | PU | |
| 3.2 | Front wheel | ∅×w(mm) | ∅254*104 | |
| 3.3 | Driving wheel | ∅×w(mm) | ∅230*75 | |
| 3.4 | Front wheel base | b10(mm) | 1180 | |
| Dimension | 4.1 | Mast lowered height | h1(mm) | 2105 |
| 4.2 | Free lift height | h2(mm) | 1500 | |
| 4.3 | Lift height | h3(mm) | 4500 | |
| 4.4 | Max. height when lifting | h4(mm) | 5500 | |
| 4.5 | Height of overhead guards | h14(mm) | 2180 | |
| 4.6 | Fork Clearence when Mast Lowered | h13(mm) | 40 | |
| 4.7 | Mast/Fork Title Angle | . | 3/5 | |
| 4.8 | Overall length (Fork back) | L1(mm) | 2477 | |
| 4.9 | Overall width | b1(mm) | 1270 | |
| 4.10 | Fork size | s/e/l(mm) | 40/122/1070 | |
| 4.11 | Fork spread | b5(mm) | 244-705 | |
| 4.12 | Min ground clearence | m2(mm) | 70 | |
| 4.13 | Aisle width for pallet 1000*1200 crossaway | Ast(mm) | 3007 | |
| 4.14 | Min. turning radius | Wa(mm) | 1900 | |
| Performance | 5.1 | Max. travel speed (Unload/load) | km/h | 7.8/6.8 |
| 5.2 | Lifting speed (Unload/load) | m/s | 0.240/0.120 | |
| 5.3 | Lowering speed(Unload/load) | m/s | 0.270/0.305 | |
| 5.4 | Max. climbing ability(Unload/load) | % | ≤10 | |
| 5.5 | Brake type | Electromagnetic | ||
|
Motor, charger |
6.1 | Driving motor | kw | 6.5 |
| 6.2 | Lifting motor | kw | 6.3 | |
| 6.3 | Battery type | Lead Acid | ||
| 6.4 | Battery vol./capacity | V/Ah | 48V/400Ah | |
| 6.5 | Charger | V/Ah | 48V/50A | |
| Other | 7.1 | Control model | AC | |
| 7.2 | EN12053 Noise level in driver’s ear | dB(A) | 75 | |
2.CONFIGURATION
1,US CURTIS Control system,Stepless speed regulation；
2,Brand contactor,
3,Brand hydraulic lifting pump station;
4,48V/400AHLead acid battery；
5,48V/50Aexternal intelligent charger
6,Brand sealing elements
7,Vertical AC drive motor
8,Vertical transmission gearbox
9,High wear resistant polyurethane wheel(Bearing wheel, driving wheel and balancing wheel)
10,Pedal foot switch, seat, steering wheel
11,Fork lift with buffer
12,Forged fork, suitable for single and double pallets
13,Multi function electricity meter
14,Electromagnetic brake
15,Electric Power Steering
3. PACKING&SHOPING
4.PRODUCTION SCENE
5.FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.And accepted Payment Type: L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Q6: What can I get from cooperating with Herrman?
A6: 1). Unique products, with customized service.
2). Timely production and delivery, time is money.
3). Market protection service, long term business strategy.
Q7:How can we guarantee quality?
A7:1).Always a pre-production sample before mass production.
2).Always final Inspection before shipment.
Q8: What services can we provide?
A8:1).Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
2).Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
