Manual Hand Pallet Truck 2000kg 3000kg 5000kg Capacity
Hand Pallet Truck

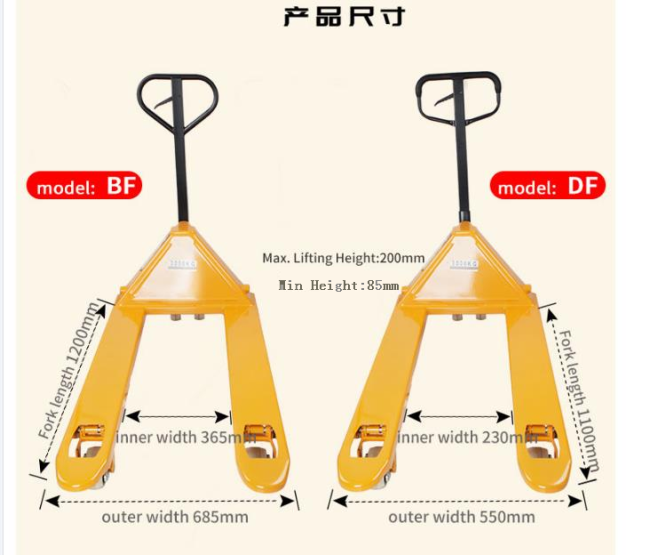

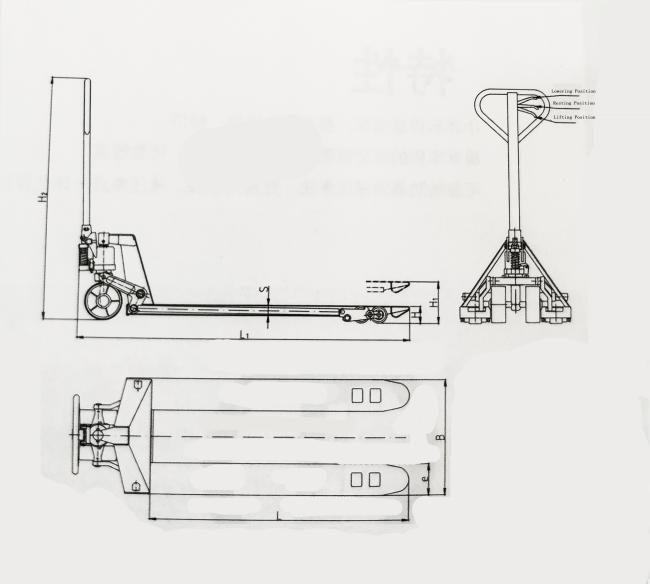

Size information
| Item | Product Name |
Hand Pallet Truck-2T |
Hand Pallet Truck-3T | Hand Pallet Truck-5T | |
| 1 | Load capacity | kg | 2000 | 3000 | 5000 |
| 2 | Pump type | / |
Casting pump |
Monoblock pump |
Monoblock pump |
| 3 | Lifting height | H1(mm) | 200 | 200 | 200 |
| 4 | Min height | H(mm) | 85 | 85 | 85 |
| 5 | Outer width of fork | B(mm) | 550/685 | 550/685 | 550/685 |
| 6 | Inner width of fork | mm | 230/365 | 230/365 | 230/365 |
| 7 | Fork length | L(mm) | 1100/1200 | 1100/1200 | 1100/1200 |
| 8 | Single fork | e(mm) | 160 | 160 | 160 |
| 9 | Thickness of material | s(mm) | 3 | 3.75 | 5.25 |
| 10 | Overall length | L(mm) | 1500/1570 | 1500/1570 | 1500/1570 |
| 11 | Overall height | H2(mm) | 1230 | 1230 | 1230 |
| 12 | Diameter of piston rod | mm | Φ31.5 | Φ31.5 | Φ35 |
| 13 | Bearing wheel | mm | 70*80 | 70*80 | 70*80 |
| 14 | Steerig wheel | mm | Φ180×50 | Φ180×50 | Φ180×50 |
| 15 | Turning radius | mm | 1266/1366 | 1266/366 | 1266/1366 |
| 16 | Materian of wheel | Pu/Nylon | Pu/Nylon/Iron | ||
Description
This pallet trucks is designed with additional reinforcement to increase load strength and is robust and hardwearing. The cylinder is formed in one piece and made of high quality carbon steel, which greatly reduces the possibility of oil leakage and deformation. We weld by imported robots, so the seams are small and dense, while ensuring strength. The structure is stamped and shaped and treated with a shot-blasted lacquer, which is durable and resistant to fading. The piston rod is specially treated to eliminate oil leaks and is aesthetically pleasing and durable.

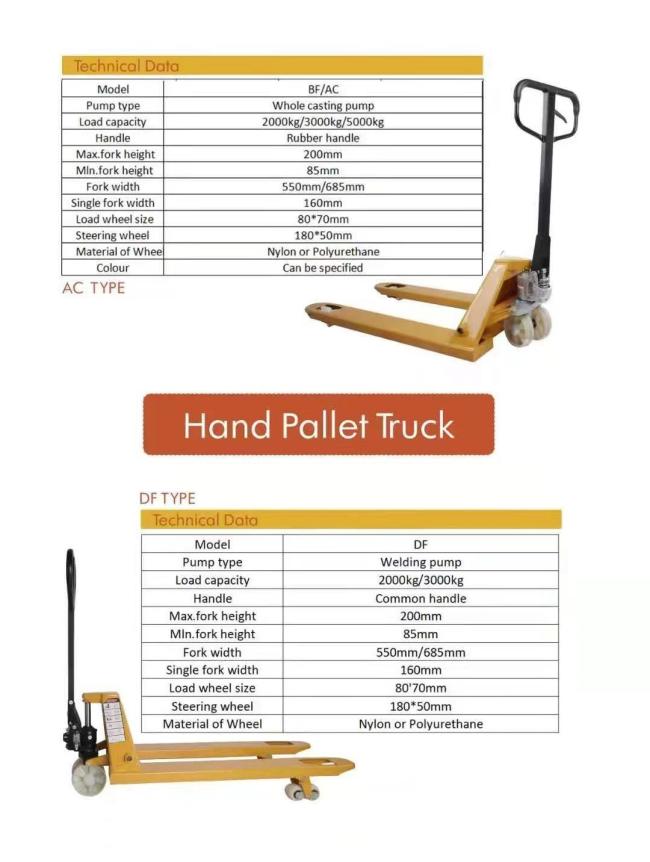

The advantage of AC/BF Type and DF Type
BF/AC Type: Adopted the integrated casting process and the overall seal design, with the high-quality imported components for key parts, the pump can’t leak even when the seal for pressure cylinder breaks. All the piston rods are chrome Diated.which makes them cood enouoh in heatresistance and hardness. Unlike the scattered parts the pump valve core with the overall design is convenient for maintenance. With the overload protection on the valve, the pump can't lift when overloaded.
DF Type: The steel plate welded pump lowers the cost, which makes it mare economical and practical. Three-stage pasitioning control enables the easy operation. And the manual control valve enhances the security, the tapered arc design for the front of the forks reduces defarmation.

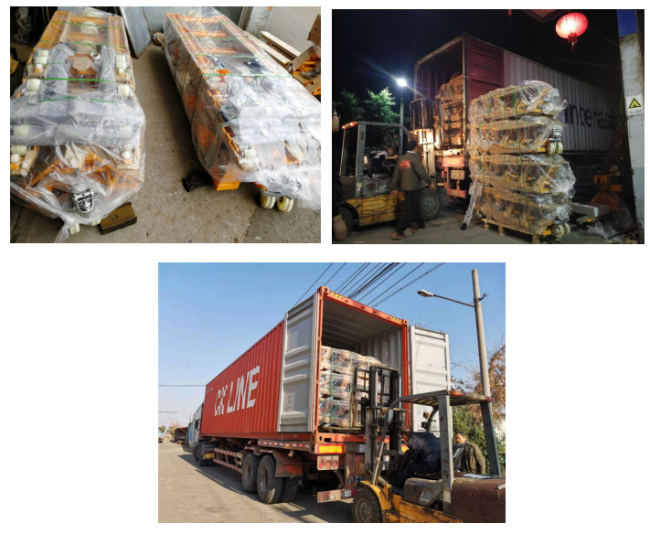

PACKING&SHOPING

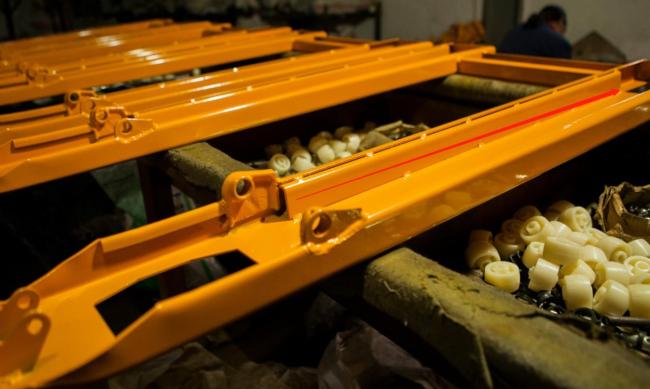

PRODUCTION SCENE
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.And accepted Payment Type: L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Q6: What can I get from cooperating with Herrman?
A6: 1). Unique products, with customized service.
2). Timely production and delivery, time is money.
3). Market protection service, long term business strategy.
Q7: how can we guarantee quality?
A7: 1).Always a pre-production sample before mass production.
2). Always final Inspection before shipment.
Q8: what services can we provide?
A8:1). Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
2). Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
3). Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
