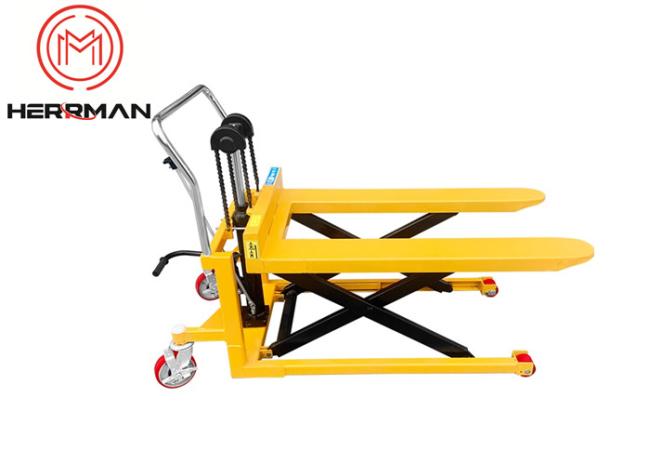

Movable Scissor High Lift Pallet Truck Capacity 1000kg 1500kg
Movable Scissor High Lift Pallet Truck,Capacity 1000kg, 1500kg
Size Information
| Item | Product Name | Unit | High lift pallet truck (movable) | |||
| 1 | Load capacity | kg | 1000 | 000 | 1500 | 1500 |
| 2 | Pump style | / | Double pump | |||
| 3 | Min fork height | mm | 85 | 85 | 85 | 85 |
| 4 | Lifting height | mm | 800 | 800 | 800 | 800 |
| 5 | Fork length | mm | 1100 | 1200 | 1100 | 1200 |
| 6 | Fork width | mm | 550 | 685 | 550 | 685 |
| 7 | Overall length | mm | 1480 | 1480 | 1480 | 1480 |
| 8 | Single fork width | mm | 160 | 160 | 160 | 160 |
| 9 | Steering wheel | mm | 180*50 | 180*50 | 180*50 | 180*50 |
| 10 | Load wheel size | mm | 80*70 | 80*70 | 80*70 | 80*70 |
| 11 | Wheel type | Nylon/PU | ||||
| 12 | Feature | / | Movable after lifting | |||
Description
High-lift trucks (scissor hydraulic trucks) can be used for both handling and working platforms. The high-lift electric hydraulic truck is specially designed for lifting all kinds of pallets and cages. It has the advantages of small size, flexibility and convenience. The design of the double-section cylinder makes it have the working characteristics of a manual pallet truck and a lifting platform at the same time. With a carrying capacity of 1 ton, it can easily cope with the handling and lifting work in various situations. Widely used in warehouses, workshops, workshops, garages and other places.
Feature
1.It is a combination of a pallet truck and a lift table;
2.The pallet truck can still be moved after lifting, ensuring flexibility of operation;
3.The high quality hydraulic system saves time and energy, and is safe and stable;
4.The rear wheels are universal and equipped with a foot brake for easy and safe operation;
5.Imported seals are used;
6.Conforms to European standard EN1757-4.
Advantage
1.Double cylinder design.
2.High backrest, safe and stable.
3.Sturdy forks. The fork is made of high-strength reinforced and thickened steel, which is resistant to wear and tear.
4.After being lifted, it can still be moved at will, and can be moved to the position that needs to be reached, saving manpower and greatly improving work efficiency.
Production Scene
Packing &Shoping
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
