Lead Battery Semi Electric Pallet Truck Capacity 2000kg With PU Wheel
Lead Battery Semi-Electric Pallet Truck Capacity 2000kg ,Battery Dimension 271×174×213
Size Information
| Semi-Electric Pallet Truck | ||||
| Feature | 1.1 | Model No. | CTX-20B | |
| 1.2 | Power Type | Lead Battery | ||
| 1.3 | Operation Type | Walkie | ||
| 1.4 | Rated Capacity | kg | 2000 | |
| 1.5 | Load Center | mm | 500 | |
| 1.6 | Lifting Height | mm | 200 | |
| Dimension | 2.1 | Overall Dimension(L/W/H) | mm | 1270×(550/685)×1325 |
| 2.2 | Fork Sizes | mm | 1150×155×55 | |
| 2.3 | Fork Width Min./Max. | mm | 550/688 | |
| 2.4 | Min. Ground Clearance | mm | 5 | |
| 2.5 | Turning Radius | mm | 1200 | |
| 2.6 | Min.Right Angle Channel Width | mm | 1560 | |
| Weight | 3.1 | Self-weight(with battery) | kg | 165 |
| 3.2 | Battery Weight | kg | 20 | |
| Wheel | 4.1 | Wheel Type(driving/turning) | Solid PU | |
| 4.2 | Driving Wheel Sizes | mm | 210×70 | |
| 4.3 | Loading Wheel Sizes | mm | 80×70 | |
| Driving&Control | 5.1 | Driving Motor | kw(60min) | 0.85 |
| 5.2 | Lifting Motor | kw(60min) | / | |
| 5.3 | Battery Dimension | mm | 271×174×213 | |
| 5.4 | Battery Voltage/Capacity | V/Ah | 2x24/20 | |
| 5.5 | Controller | DC | ||
| 5.6 | Working Pressure | mpa | 14 | |
| Performance | 6.1 | Travel speed(laden/unladen) | km/h | 4.5/5 |
| 6.2 | Lifting speed(laden/unladen) | mm/s | 30/34 | |
| 6.3 | Max Climbing Ability | % | 4 | |
| 6.4 | Braking | Electromagnetic induction | ||
| Other | 7.1 | Driving Type | Electric | |
| 7.2 | Steering System | Manual | ||
| 7.3 | Noise Level | 63 | ||
| 7.4 | Waterproof Grade | IPX4 | ||
Description
Semi-electric trucks are logistics handling equipment that plays the role of handling goods. Handling vehicles, also known as industrial vehicles, are trackless vehicles for short-distance handling, loading and unloading and stacking of goods within the enterprise. This kind of vehicle is suitable for stations, docks, airports, warehouses, construction sites, freight yards and other places with loading, unloading and handling. Equipped with reliable disc brake system, strong power, easy to control, equipped with large-capacity high-efficiency battery, long-lasting power, with battery indicator, low-voltage warning light, heavy-duty design, compact structure, and wide operating vision.
Feature
1.Strong power, strong climbing. High-power brushless motor, strong torque, two-wheel drive, durable casters, and good adhesion to the ground.
2.The hydraulic oil pump is cast in one piece, which has strong sealing performance and refuses oil leakage. It is supported by a 35mm strong hydraulic rod.
3.The operating handle is comfortable, intelligent and flexible and easy to operate.
4.The wire is detachable, flexible and convenient, and can be used at any time. It is convenient to carry it to other places for charging, and it can also be charged in the car.
Advantage
1. Cost-effective, economical and energy-saving, green and environmental protection;
2. Exquisite structure, exquisite design, simple appearance;
3. Small size, light steering and easy operation;
4. Fully meet the load usage needs of most customers;
5. Modular assembly of components for easy maintenance;
6. High-strength body and forks, durable and long-life design
7. Low noise, no pollution, low failure rate, long working time on one charge, reliable performance.

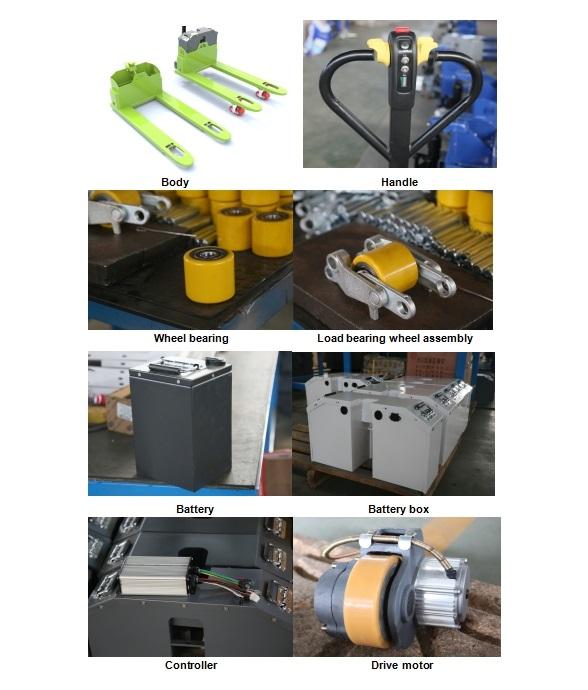

Product Details
Production Scene
Packing &Shoping
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
