1000kg 1.6M 2M 2.5M Semi Electric Wire Rope Stacker With Nylon Wheel
1000kg 1.6M/2M/2.5M Semi Electric wire rope stacker Nylon wheel
Size Information
| Item | Model | ESP-116 | ESP-120 | ESP-125 | |
| 1 | Load capacity | kg | 1000 | 1000 | 1000 |
| 2 | Control mode | / | Plug-in/wire handle (wire length approx. 0.5 m) | Plug-in/wire handle/wire length is about 1 m | Plug-in/wire handle/wire length is about 1 m |
| 3 | The gantry frame steel | / | U-steel | C-style steel | C-style steel |
| 4 | Serial number of steel | / | 10# | 10# | 12# |
| 5 | The gantry frame number | / | Single gantry | Double gantry | Double gantry |
| 6 | Lifting height | mm | 1600 | 2000 | 2500 |
| 7 | Load center | mm | 400 | 450 | 450 |
| 8 | Elevated restrictions | kg | 800 | 600 | 400 |
| 9 | Fork length | mm | 800 | 900 | 900 |
| 10 | Single fork width | mm | 100 | 100 | 100 |
| 11 | Fork adjustable | cm | 22-55 | 22-58 | 22-58 |
| 12 | Fork height of lowered | mm | 85 | 85 | 85 |
| 13 | Gantry width | MM | 600 | 630 | 630 |
| 14 | Fork height | mm | 85 | 85 | 85 |
| 15 | Fork outside width | mm | 745 | 790 | 790 |
| 16 | Overall length | mm | 1350 | 1450 | 1450 |
| 17 | Overall width | mm | 740 | 790 | 790 |
| 18 | Overall height | mm | 2050 | 1650 | 1880 |
| 19 | Turning raduis | mm | 1650 | 1700 | 1700 |
| 20 | Electromotor model | / | PA600 | PA800 | PA800 |
| 21 | Motor power | kw | 1.2 | 1.4 | 1.3 |
| 22 | Input voltage | v | 220 | 220 | 220 |
| 23 | The theory of acc | m/min | 1.25/2.25 | 2.5 | 2.5 |
| 24 | Wire rope diameter | mm | 4.5 | 5 | 5 |
| 25 | Continuous operation | min | 100 | 100 |
Description
The semi-electric wire rope stacker has simple structure, flexible control, good fretting and high explosion-proof safety performance. It is suitable for operations in narrow passages and limited spaces, and is an ideal equipment for palletizing in high-bay warehouses and workshops. It can be widely used in petroleum, chemical, pharmaceutical, textile, military, paint, pigment, coal and other industries, as well as places containing explosive mixtures such as ports, railways, freight yards, warehouses, etc., and can enter cabins, carriages and containers for palletized goods loading, unloading, stacking and handling operations. It can greatly improve work efficiency, reduce the labor intensity of workers, and win market competition opportunities for enterprises. In addition, this product is suitable for single- sided trys.

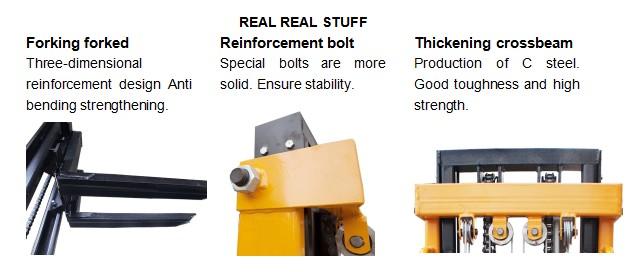

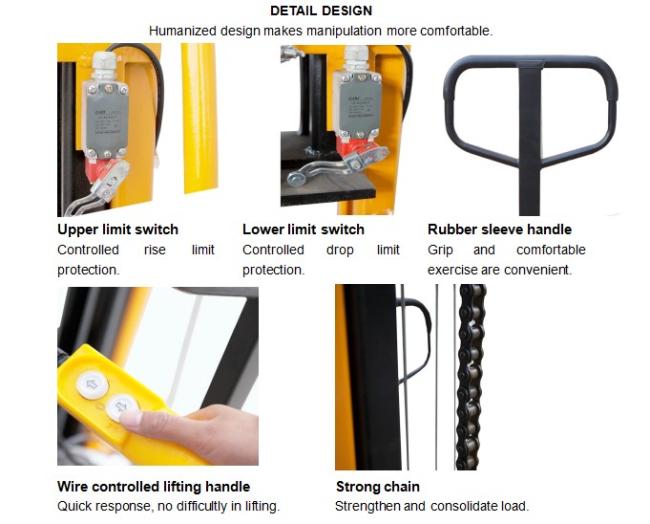

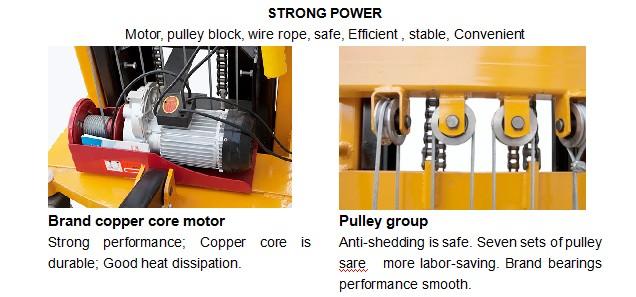

Product details

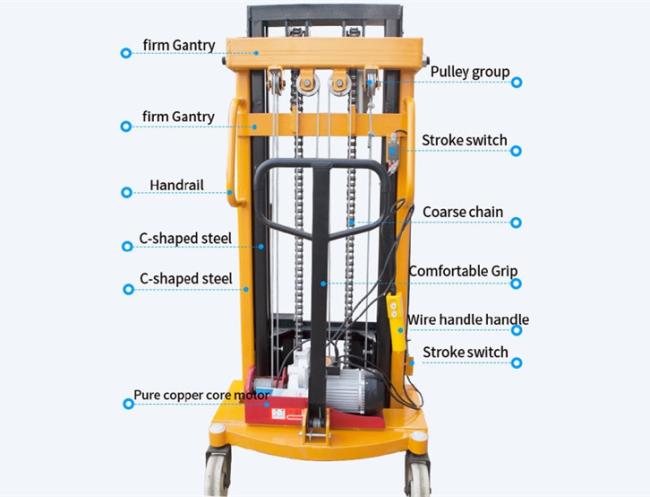

Product dispaly

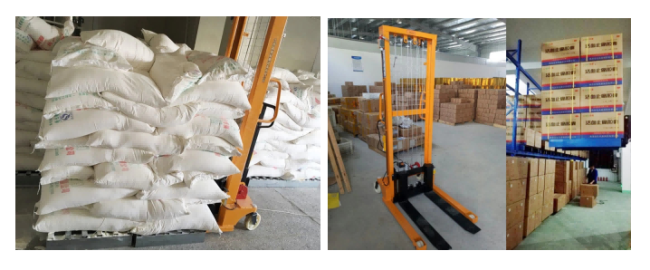

Production Scene
Packing &Shoping
FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
