MaxLi 12V 100Ah Smart Lithium Battery Built In Bluetooth For RV / Marine Vehicles
MaxLi battery is a full qualified manufacturer of high standard lithium battery under a wide range of specs.
MaxLi's smart BMS has 8 built-in protections to well protect the battery:
Over charge detection function
Over discharge detection function
Current detection
Temperature protection
Short circuit detection
Balance function
Datasheet of MaxLi smart 12V 100Ah bluetooth leisure/marine battery:
|
Electrical Characteristics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah(102Ah) | |
| Energy | 1280Wh | |
| Internal Resistance | ≤ 20mΩ | |
| Cycle Life | ＞3000cycles @1.0C 100%DOD | |
| Months Self Discharge | ＜3% | |
| Efficiency of Charge | 100%@0.2C | |
| Efficiency of Discharge | 96~99%@0.5C | |
|
Standard Charge |
Charge Voltage | 14.6±0. 1V |
| Charge Mode | 0.2C to 14.6V,then 14.6V,charge current to 0.02C(CC/CV) | |
| Charge Current | 50A | |
| Max. Charge Current | 100A(150A BMS is available) | |
| Charge Cut-off Voltage | 14.6V±0. 1V | |
|
Standard Discharge |
Continuous Current | 100A |
| Max. Pulse Current | 300A(<3S)/ 450A(<3s) | |
| Discharge Cut-off Voltage | 10.8V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP65 | |
|
Mechanical |
Cell & Method |
32700 6 Ah 4S17P EVE 3.2V 100Ah 4S1P |
| Shell material | ABS (Screw-bolts type) | |
| Dimensions (in./mm.) | 330*173*214mm | |
| Weight (lbs./kg.) | Approx:12.0Kg | |
| Terminal | M8 | |
| Communication | Bluetooth & Voltage meter optional |

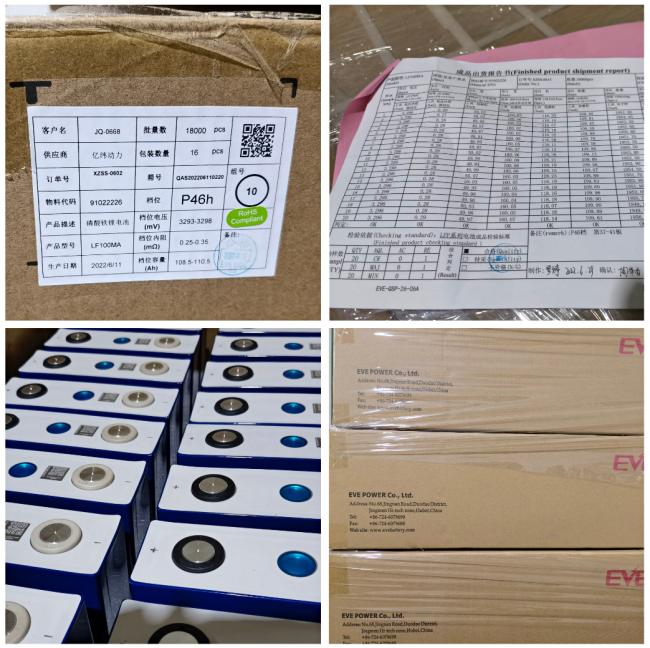

100%Original top A grade EVE new 3.2V 100Ah prismatic cells used only with full test report:
Top A grade new FB tech cylindrical 32700 6.0Ah used only:
Introductions of MaxLi battery:
Strictly according to CE/ROHS/UN38.3/MSDS regulations to reach the high quality standard:
OEM/ODM service is available with confidential agreements.
Feel free to message Zina to discuss any doubt.
