Bluetooth ABS 100Ah 32700 Cell 24V Lithium Battery
Price:
consultation
MOQ:
consultation
Delivery Time:
15-20days for samples
Brand:
MaxLi
Product Description
Rechargeable lifepo4 battery 24v 100ah lithium battery pack for electric vehicle

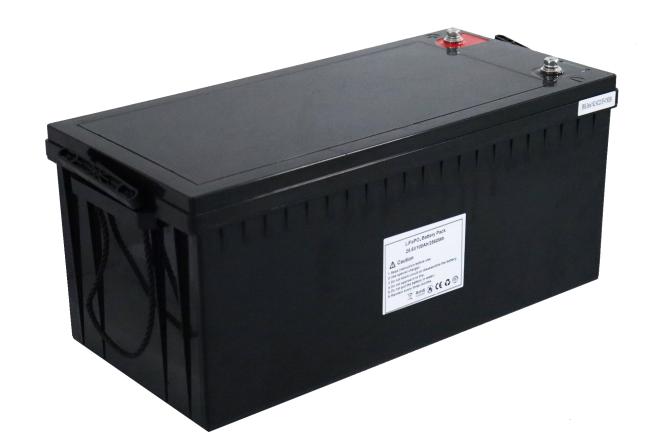

Reference photo
Specification of 24V 100Ah LiFePO4 battery
| Model No. | YS24-100-C |
| Nominal Voltage | 25.6V |
| Nominal Capacity @ 0.2C | 100Ah |
| Watt-Hour | 2560Wh |
|
Dimensions Length Width Height |
523mm 235mm 222mm |
| Weight | Approx. 27.5Kg |
| Internal Resistance | ≤40mΩ @ 50% SOC |
| Recommended Charge Current | 50A |
| BMS Maximum Charge Current | 100A |
| Charge Cut-off Voltage | 28.8V |
| BMS Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A (3S) |
| Discharge Cut-off Voltage | 20.0V |
| Expected Cycle Life |
Residual capacity is more than 80% of initial capacity after 2,000 cycles at 25℃, 1C |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical 32700, 8S17P |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Housing Material | ABS |
| Enclosure Protection | IP56 |
| Terminal Type | M8 |
| Communication | Bluetooth (optional) |
