OEM ODM 12 Volt Lifepo4 Battery Droping Lead Acid Battery Replacement
OEM ODM 12 Volt Lifepo4 Battery Droping Lead Acid Battery Replacement
Lifepo4 12 Volt Droping Lead Acid Battery Replaement OEM/ODM
MaxLI 12V/12Ah Lithium (LiFePO4) Battery
Maxli 12V sereis lithium battery is used to replace lead-acid batteries. The battery can be used individually or assembled in series to create a 24V or 48V systems, and recommend no more than 8pcs connected in parallel.
MaxLi 12V series is first-generation battery with Lead acid battery casing. our batteries capacity from 6Ah to 300Ah, which offers a droping solution to replace Lead acid battery for applications like RVs, marines, solar systems, low speed vehicles and more.
Harness the full capacity potential of your battery with Lithium. Full discharge capability thus using all the capacity available.
Specifications:
Nominal Voltage | 12.8V |
Nominal Capacity | 12Ah |
Energy | 153.6Wh |
Weight | 1.6Kg |
Internal Resistance | ≤50mΩ @ 50% SOC |
Recommended Charge Current | 3A |
Max Continuous Discharge Current | 12A |
Recommend low voltage disconnect | 10.0V |
Expected Cycle Life | 2,000 times |
Peak Discharge Current | 36A (2S) |
Operating Temperature | -20℃-+60℃ |
Enclosure Protection | IP56 |
Shell Material | ABS |
Terminal | T2 |
Communication | Bluetooth(optional) |
Storage Protection &Transportation
- Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
- Battery should be stayed in the ware house -20℃~35℃ where it’s dry, clean, shade, and well-ventilated.
- The battery should be stored in 50% SOC during transportation.
- The battery need to be charged every 6 months if out of use.
- Keep the battery against dropping, turning over and serious stacking during loading.
- Drop-in replacement-Group size as standard lead acid batteries
- 100% usable capacity, realdeep cycle battery
- 3,000-5,000 cycles time cycle life
- Able to be used in series and parallel
- Light weight
- Built in BMS offer over and under voltage protection, over and under temperature protection, over current protection, short circuit protection and cell balancing
Applications
- Solar/wind energy storage
- Generator storage
- Golf cart/RV/EV/Boat
- Floor cleaning machine

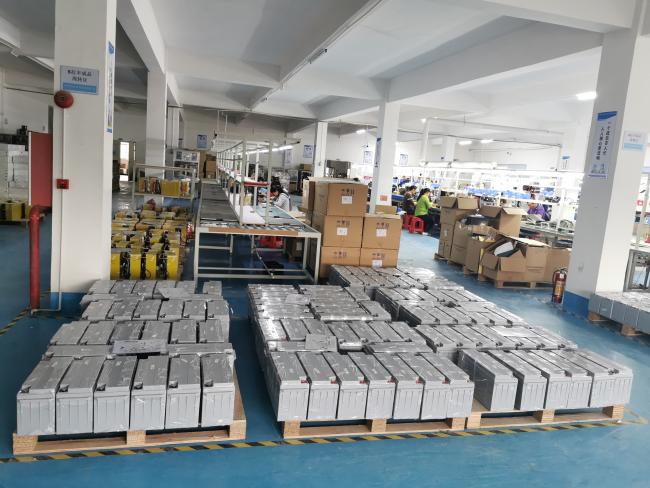

Factory Production Line/Certifications
