100Ah 150Ah 200Ah 12V LiFePO4 Battery Pack Lead Acid Replacement
100Ah 150Ah 200Ah 12V LiFePO4 Battery Pack Lead Acid Replacement
Lead acid replacement Solar RV Marine 12V 100Ah/150Ah/200Ah LiFePO4 battery pack with built-in smart BMS
Datasheet of MaxLi 12V bluetooth RV/Marine LiFePO4 Battery:
| Model | YS-12V-100Ah/120Ah | YS-12V-150Ah | YS-12V-200Ah |
| Nominal capacity |
102Ah / 1305Wh 120Ah/1536Wh |
150Ah / 1920Wh | 204Ah / 2611Wh |
| Operating voltage range | 10.0V-14.6 V | ||
| Nominal voltage | 12.8 V | ||
| Number of cycles | ≥3000 @ 100% DOD | ||
| Charging characteristics | CC-CV | ||
| Charging voltage | 14.4 - 14.6V | ||
|
Maximum recommended charge current |
50A | 75A | 100A |
| Maximum charge current | 100A/150A | 150A | 150A |
| Discharge current | 100A/150A | 150A | 150A |
|
Maximum discharge current (≤5 sec.) |
300A/500A | 500A | 500A |
|
BMS Battery Management System |
Built-in Smart BMS,over charge/discharge protection/over load protection/short circuit protection/temperature protection and balance function | ||
| Monitoring | Bluetooth 4.0 with smartphone app | ||
| Application/ Interconnection | RV/Marine/Motorhomes/Campering cars/OFF-GRID storage system | ||
| Protection | IP65 | ||
| Temperature range (discharge) | -20°C to +60°C | ||
| Temperature range (charge) | 0°C to +45°C | ||
| Temperature range (storage) | 0°C to +40°C | ||
| Terminal | M8 | M8 | M8 |
| Warranty | 3 year manufacturer's warranty | ||
| Weight | 12.8kg/15Kg | 17.5kg | 25.0kg |
|
Dimensions (L x W x H) in mm |
L328*W172*H212mm±2mm L353*W180*190mm±2mm |
L485*W172*H240mm±2mm | L523*W235*H222mm±2mm |

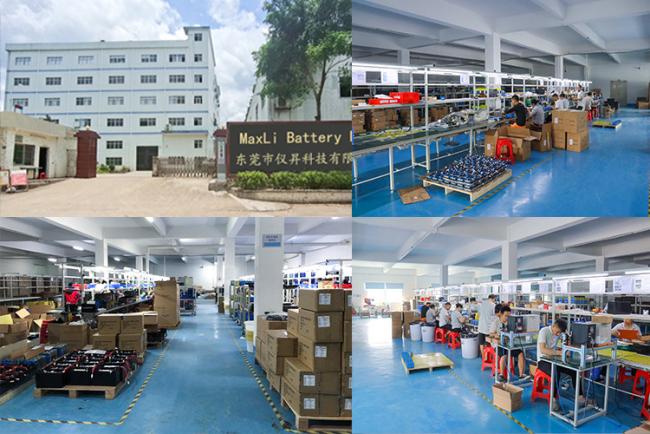

Who is MaxLi?
-
MaxLi battery Ltd specializes in research,development,production and sales of rechargeable lithium-ion batteries.A wholly-own subsidiary Dongguan Yisheng Technology Co.,Ltd.The production and quality control is in accordance with ISO9001 quality management system,the product technical requirements reach or even exceed the IEC standard.Strictly according to the UL1642/CE/RoHS/UN38.3 and MSDS regulations to meet the high quality standard.
-
12V-48V series LFP batteriess are our featured products with built-in smart BMS and top A graded new battery cells.Widely used on RV/Motorhomes/Marine/renewable solar energy/E-bike/scooter ect automative vehicles and telecomunications ect.
-
Supporting to customize unique batteries based on customer’s demand with confidential agreements:bluetooth App and battery label or design
Why choose Lithium LiFePO4 Battery?
Compared to lead acid battery,lithium LiFePO4 Battery is 3 times lighter than lead acid battery,drop in lead acid directly
5times longer cycle life,and much superior safety and widen temperature and flexibility as well.
Widely applications:
1. EV, e-scooter, electric golf car, electric vacuum sweeper.
2. Electronic toy, model airplane, remote control.
3. Communication equipment: Cordless telephone, inter-phone.
4. Modality equipment and consumer electronics.
5. Decorative lighting, Solar lamps, torch, emergency light, solar street light and power supply
Well package with high standard carton:
Strictly according to CE/RoHS/UN38.3/MSDS regulations to reach the high quality standard:
PS:samples evaluation or factort visit are welcome.
