MaxLi 1280Wh RV Lifepo4 Battery 12V 100Ah Lifepo4 Battery With LCD
Price:
250-300USD
MOQ:
1
Delivery Time:
10-20days
Brand:
MaxLi
Product Description

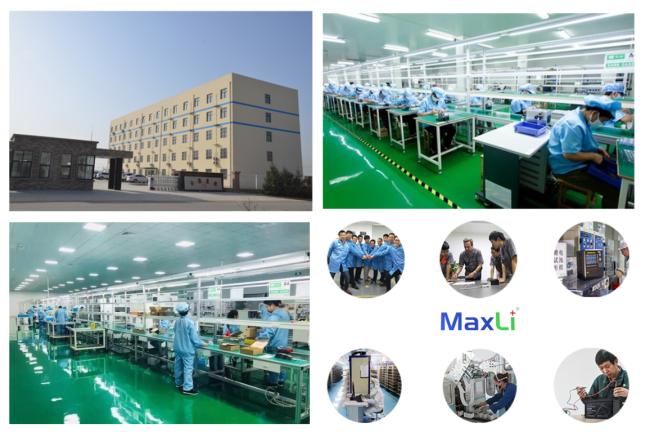

Who we are?
MaxLi is a full qualified manufacturer of high quality lithium battery under a wide range of specs.
A wholly-own factory is located in dongguan with by more than 5000㎡,with own R&D team and professional production lines
Datasheet of MaxLi smart 12V 100Ah RV/Marine/Leisure lithium battery with LCD in DIN5L case
|
Electrical Characteristics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah(102Ah) | |
| Energy | 1280Wh | |
| Internal Resistance | ≤ 20mΩ | |
| Cycle Life | ＞3000cycles @1.0C 100%DOD | |
| Months Self Discharge | ＜3% | |
| Efficiency of Charge | 100%@0.2C | |
| Efficiency of Discharge | 96~99%@0.5C | |
|
Standard Charge |
Charge Voltage | 14.6±0. 1V |
| Charge Mode | 0.2C to 14.6V,then 14.6V,charge current to 0.02C(CC/CV) | |
| Charge Current | 50A | |
| Max. Charge Current | 100A(150A BMS is available) | |
| Charge Cut-off Voltage | 14.6V±0. 1V | |
|
Standard Discharge |
Continuous Current | 100A |
| Max. Pulse Current | 300A(<3S) | |
| Discharge Cut-off Voltage | 10.8V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP65 | |
|
Mechanical |
Cell & Method | 32700 6 Ah 4S17P /EVE3.2 100Ah 4S1P |
| Shell material | ABS (31 DIN5) | |
| Dimensions (in./mm.) | 353*180*190mm | |
| Weight (lbs./kg.) | Approx:12.18Kg | |
| Terminal | M8 | |
| Communication | Bluetooth 4.0 | |
| Featured | Built-in LCD |
Well package with UN standard carton box:

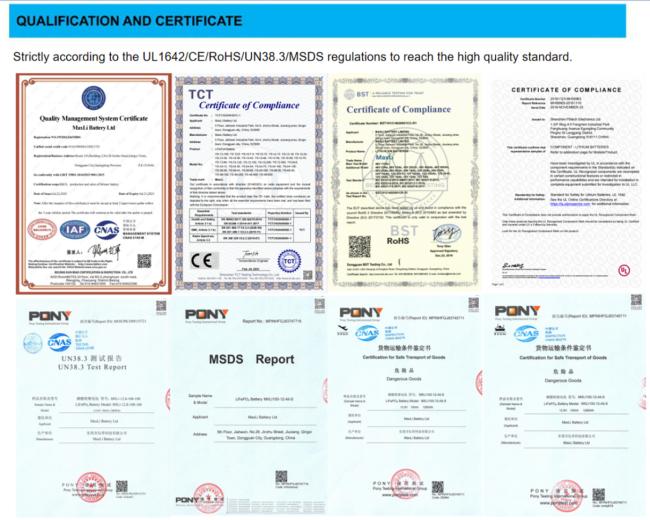

Certificates of MaxLi smart lithium LiFePO4 battery:
Welcome to evaluate any MaxLi sample,feel free to contact Zina by:zina.luo@maxlibattery.com or whatsapp:+8613631159227
