2560Wh Bluetooth RV Lithium Battery 12V 200Ah LiFePO4 Battery IP65 Built In Smart BMS
MaxLi battery is a full qualified manufacturer of high standard lithium battery under a wide range of specs.
12V-48V series LFP batteries are one of our top-rated products with built-in smart BMS and unique bluetooth.MaxLi smart BMS(Battery Management System)in each battery will detect any problems with the performance of the battery and shurt down any cells not functioning properly, offers 8 different protection modes:
- Over charge detection function
- Over discharge detection function
- Current detection
- Temperature protection
- Short circuit detection
- Balance function
Unique bluetooth not only supports to monitor the battery condition via smart phone easily,but also support to modify/update the battery data via smart phone easily.
Datasheet of MaxLi bluetooth 12V 200Ah RV/Caravans/Campering/Marine lithium LiFePO4 battery:
|
Electrical Characteristics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah | |
| Energy | 2560Wh | |
| Internal Resistance | ≤ 20mΩ | |
| Cycle Life | ＞3000cycles @1.0C 100%DOD | |
| Months Self Discharge | ＜3% | |
| Efficiency of Charge | 100%@0.2C | |
| Efficiency of Discharge | 96~99%@0.5C | |
|
Standard Charge |
Charge Voltage | 14.4±0. 1V |
| Charge Mode | 0.2C to 14.4V,then 14.4V,charge current to 0.02C(CC/CV) | |
| Charge Current | 100A | |
| Max. Charge Current | 150A | |
| Charge Cut-off Voltage | 14.6V±0. 1V | |
|
Standard Discharge |
Continuous Current | 200A |
| Max. Pulse Current | 450A(<3S) | |
| Discharge Cut-off Voltage | 10.0V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP65 | |
|
Mechanical |
Cell & Method | 3.2V 100Ah EVE |
| Shell material | ABS Case | |
| Dimensions (in./mm.) | 522*240*218mm | |
| Weight (lbs./kg.) | Approx:25Kg | |
| Terminal | M8 |
Applications of MaxLi smart lithium battery:

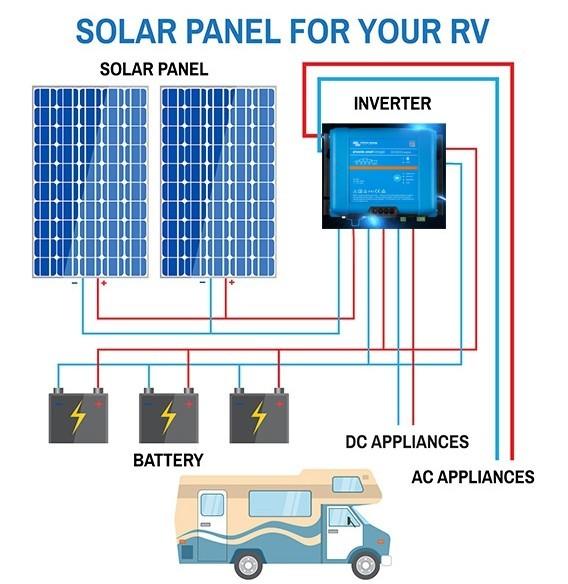

Communicating with victron inverter,widely used on RV/Marine/Off-grid solar energy storage:
Well packaged with UN standard carton box and high quality foam:
More of MaxLi factory and product details:
CE/UN38.3/MSDS/ROHS certificates well applied to reach the high quality standard lithium battery:
FAQ:
1.How long of the sample?
Zina:Normally sample need 1-2weeks lead time,specific design sample needs a little bit more.
OE/ODM service is available in sample order without extra fees.
2.How about the payment terms?
Zina:deposit ahead and balance paid before shipping,could discuss more together when placing bulk order.MaxLi has special payment terms to support every key customers.
