LiFePO4 Solar Storage Lithium Battery 50Ah - 300Ah 48V Lithium Battery For Energy Storage
Home energy storage system 48V 50Ah 100Ah 150Ah 200Ah 300Ah LiFePO4 Battery
Higher discharge rate, faster charging and discharging When there is a need for backup power supply for a period of 10 hours or less, we could reduce up to 50% of the capacity configuration, comparing to lead acid battery.
High security. Our lithium battery is safe, electrochemical materials are stable, no fire or explosion under extreme conditions such as high temperature, short circuit, drop impact, piercing, etc
Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious. Self-discharge rate < 2% per month.
Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
Cycle durability for a single cell is 2000 cycles 100% DOD, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
Main parameter
|
Electrical Characteristics |
Nominal Voltage | 48V |
| Nominal Capacity | 50Ah | |
| Energy | 2400Wh | |
| Internal Resistance | ≤ 50mΩ | |
| Cycle Life | ＞3000cycles @1.0C rate | |
| Months Self Discharge | ＜3% | |
| Efficiency of Charge | 100%@0. 2C | |
| Efficiency of Discharge | 96~99%@0.5C | |
|
Standard Charge |
Charge Voltage | 54.8±0. 1V |
| Charge Mode | 0.2C to 57.6V,then 57.6V,charge current to0.02C(CC/CV) | |
| Charge Current | 25A | |
| Max. Charge Current | 50A | |
| Charge Cut-off Voltage | 58.5V±0. 1V | |
|
Standard Discharge |
Continuous Current | 40A |
| Max continuous discharge current | 50A | |
| Discharge Cut-off Voltage | 37.5V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah 15S 9 P |
| Shell material | Iron(SGCC) | |

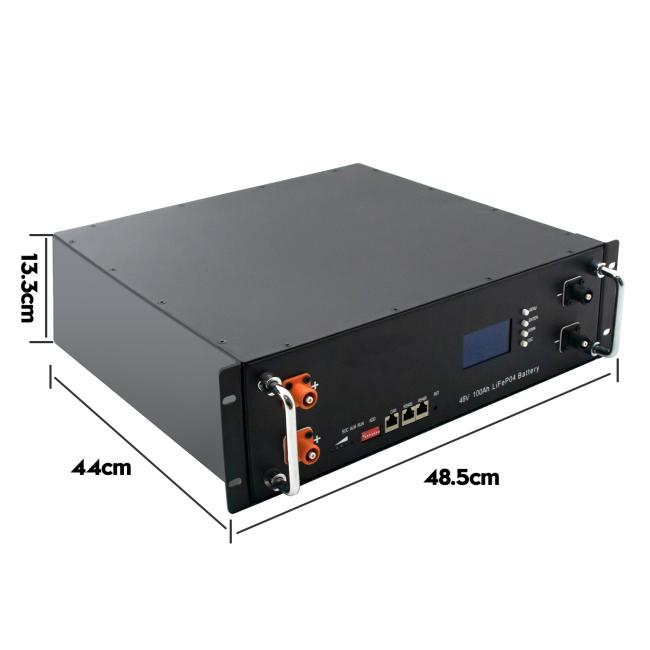

| Dimensions (in./mm.) | 412 x 438 x 135 | |
| Weight (lbs./kg.) | Approx:31Kg | |
| Gravimetric specific energy | 85WH/KG | |
| Protocol (optional) | RS485/RS232 | |
| SOC (optional) | LED |
Widely Applications:
1. EV, e-scooter, electric golf car, electric vacuum sweeper.
2. Electronic toy, model airplane, remote control.
3. Communication equipment: Cordless telephone, inter-phone.
4. Modality equipment and consumer electronics.
5. Decorative lighting, Solar lamps, torch, emergency light, solar street light and power supply.
Supporting multi batteries in parallel:
Home solar energy system applications:
Why choose lithium battery?
Compared to lead acid batteries,lithium batteries is 5 times longer cycle life,3 times lighter weight,much superior safety,
much wider temperature range and flexibity.
Strictly according to the CE/ROHS/UN38.3/MSDS regulations to reach the high quality regulations:
Well Package with high quality foam and UN standard carton to well protect the battery during the long shipping time:
