Octagonal Tube Roll Forming Machine Automatic Cast Iron Structure
Automatic Galvanized Steel Cast Iron Structure Octagonal Tube Roll Forming Machine
The octagonal tube line is one of the components of the rolling door equipment. The "octagonal tube" roll is used to roll up the blades and panels of roller shutter doors. They are often used in supermarkets, shops, private garages, warehouses, factories, etc. for rolling up "octagonal tubes".(Octagonal Tube Roll Forming Machine / Octagonal pipe roll forming Machine)
Electric rolling doors are generally used in storefronts, factory warehouses or garages where they are needed. The electric rolling door is more convenient and quicker than the previous ordinary rolling door, which is an important reason to replace the ordinary rolling door. (rolling shutter door roll forming machine/ rolling shutter door bending machine)
Flow Chart of Automatic Galvanized Steel Cast Iron Structure Octagonal Tube Roll Forming Machine
5T hydraulic decoiler-Punch press-Roll forming machine-Outer table
Main Technical Parameters
| Automatic Galvanized Steel Cast Iron Structure Octagonal Tube Roll Forming Machine | ||
| Component 1 | 5T hydraulic decoiler | 5 tons capacity |
| Component 2 | Leveler | 7 rollers |
| Component 3 | Punch press | 2 sets of mould |
| Component 4 | Roll former | 7.5kw*2 |
| Component 5 | Flying saw cut | 3kw |
| Component 6 | Outer table | 2m*2 |

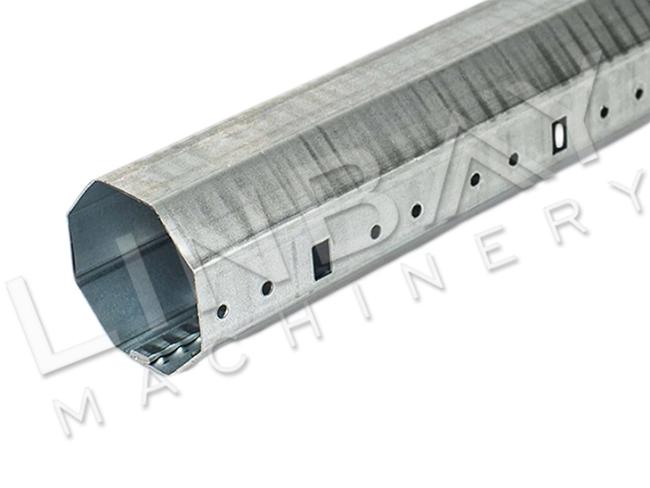

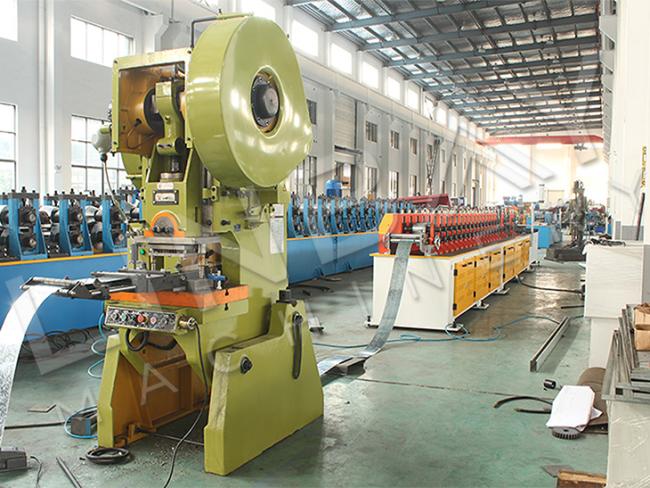

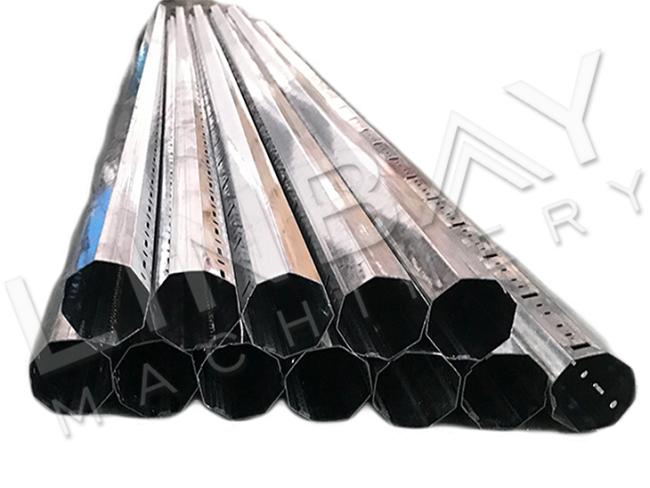

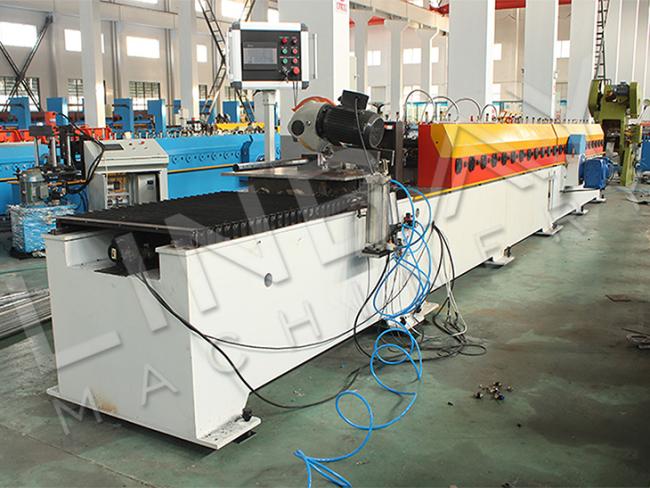

Pictures of Automatic Galvanized Steel Cast Iron Structure Octagonal Tube Roll Forming Machine
