0.4-0.6mm Roofing Roll Forming Machine
Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel
Tin ridge tiles(ridge cap roll forming machine/ ridge cap bending machine) are bent and shaped to cover the ridge of a dwelling and are used to hold the covering in place. The ridge tiles(angle ridge cap roll forming machine/(angle ridge cap bending machine) are installed after all the trusses and permanent lateral supports are in place. (circular ridge cap roll forming machine/(circular ridge cap bending machine) A 224mm flat steel strip is used, which should be bent at the same angle as the slope of the roof. Either bend them yourself on a press braking machine or send them to a sheet metal workshop. Lay the ridge tile from one end of the roof to the other and fix it to each truss with ST4.2 low profile screws. (square ridge cap roll forming machine/(square ridge cap bending machine)
Flow chart of Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel:
Hydraulic decoiler--Guiding--Roll forming machine--Hydraulic cut--Out table
| Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel | ||
| Component 1: | Manual decoiler | 3Tons |
| Component 2: | Roll forming |
Guiding 7.5kw forming motor Roll forming 16 stands Shafts φ75mm Rollers 45 steel chromed |
| Component 3: | Hydraulic stamping and cut |
Each 300mm make stamping 6 columns structure Cut any length |
| Component 4: | Manual table | 2 meters*2 |
| Component 5: | Hydraulic station | 7.5kw |
| Component 6: | Control panel | Siemens PLC |

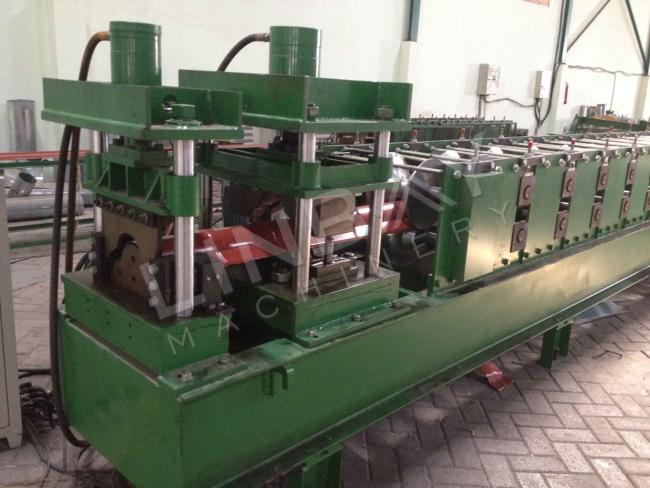

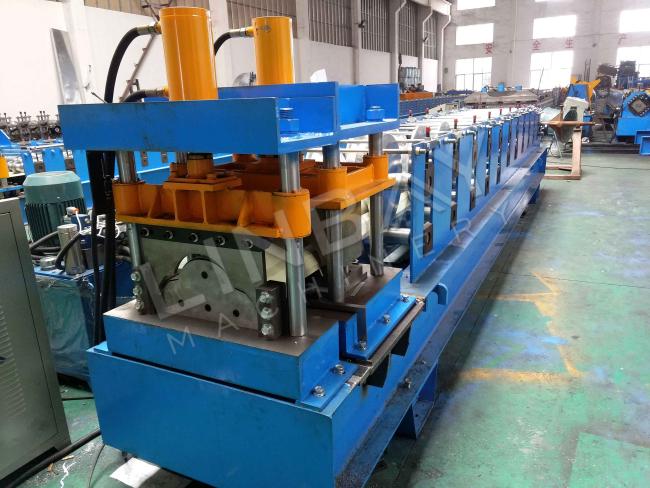

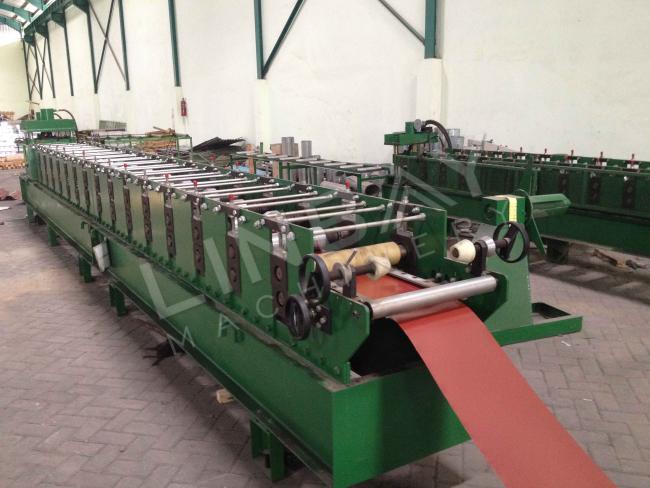

Pictures of Steel Roof Tile Type Ridge Cap Roll Forming Machine Color Steel:
