High Speed Cable Tray Roll Forming Machine
High Speed Full Automatic Chain Drive Perforated Cable Tray Roll Forming Machine
Whether it is a civil building or an industrial building, there are many necessary wires and cables to be installed, cable trays are for better cable laying, cable trays are divided into brackets, brackets and part of the installation using accessories together, mainly divided into three kinds of structure, respectively, ladder type bridges, tray type bridges and slot type bridges.
The slotted cable trays are available in the following finishes. Electrostatic spraying, galvanising, hot dip galvanising and galvanising followed by spraying, which can be used in different environments and should be treated for special corrosion protection in heavy corrosive environments.
Flow Chart of High Speed Full Automatic Chain Drive Perforated Cable Tray Roll Forming Machine
5T hydraulic decoiler-Punch press-Roll forming machine-Outer table
Main Technical Parameters
| High Speed Full Automatic Chain Drive Perforated Cable Tray Roll Forming Machine | ||
| Component 1 | 8T hydraulic decoiler | 8 tons capacity |
| Component 2 | Leveler | 7 rollers |
| Component 3 | Punch press | 200 tons |
| Component 4 | Roll former | 7.5kw*2 |
| Component 5 | Hydraulic cut | 7.5kw |
| Component 6 | Outer table | 2 sets |

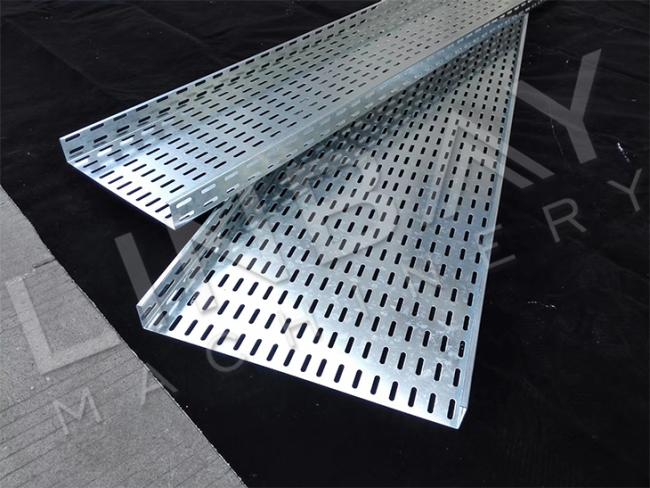

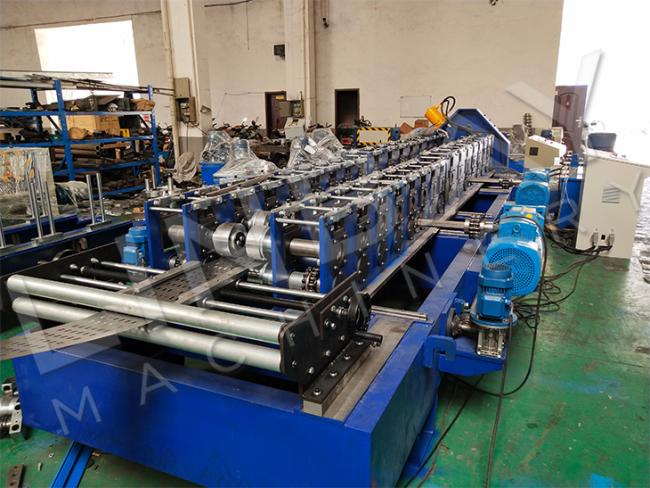

Pictures of High Speed Full Automatic Chain Drive Perforated Cable Tray Roll Forming Machine
