Electric Control Mining Circle Steel Magnetic Lifter 300kg
LH8014 electro permanent magnetic lifter
Product introduction:
Electric control permanent magnetic lifter is a new product developed for the working condition of sheet steel with thickness of more than 2mm, which can meet the user's requirements of lifting single sheet steel.
With its special structural design, the product can still produce a strong suction force of about 12kg / cm2 for the steel plate with a thickness of as small as 2mm, and will not adhere to the second steel plate.
This product is specially suitable for cutting on the similar cutting line by using multiple combined cranes, welding fixture of thin plate and other occasions. Greatly reduced the labor intensity of workers and improve the use efficiency of equipment.

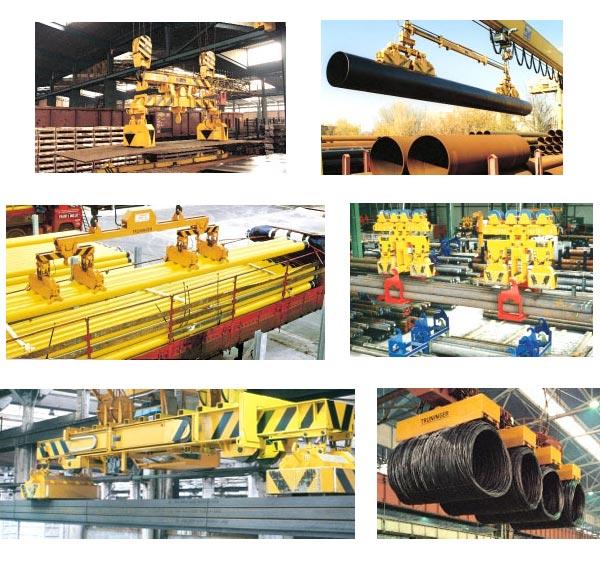

Application
Specification sheet
| Model | Rated lifting capacity (Kg) | Max pull-off force (Kgf) | Dimension (mm) | Weight(kg) | ||
| A | B | H | ||||
| LH8014-100B | 100 | 600 | 350 | 106 | 49 | 15 |
| LH8015-200B | 200 | 1200 | 350 | 162 | 49 | 22 |
| LH8016-300B | 300 | 1850 | 500 | 162 | 49 | 30 |
| LH8017-500B | 500 | 2800 | 500 | 218 | 49 | 40 |
| LH-8018-600B | 600 | 3700 | 650 | 218 | 49 | 50 |
| LH8019-800B | 800 | 4650 | 500 | 330 | 49 | 60 |
| LH8020-1000B | 1000 | 5600 | 650 | 302 | 49 | 75 |
| LH8021-1500B | 1500 | 8400 | 950 | 302 | 49 | 105 |
| LH8022-2000B | 2000 | 11200 | 950 | 386 | 49 | 145 |
| Note: Other specifications can be customized ,please call for further information. | ||||||
Company Profile
 |
 |
 |
 |
Magnet is widely used in industries like metallurgy, machinery, shipbuilding, electric power, mine, automobile manufacturing, rail transportation and so on.
There is mainly 3 kinds of magnet, permanent magnet, electromagnet, permanent electromagnet. different magnet is suitable for different areas, and as a professional supplier of magnetic tools, JYC technology is is always providing customers appropriate solutions for our customers.
Packing&Delivery
 |
 |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Each chuck will be well protected by wooden boxs.
FAQ
Q:Are you manufactory or trade company.
A:Normally,We'll have regular items in stock, customized products will take 7-14 work days.
