High quality 1000x1000mm Electro Permanent Magnetic Chuck For Milling
1000x1000mm Electro Permanent Magnetic Chuck
Product Introduction
Standard Features and Benefits:
1. Flexibility :
• Allow single set-up machining with 5-sided accessibility
• workpieces larger than the table are machinable
2. Safety
• No electric power supply during clamping
• Constant and uniform magnetic power over entire area.
• No temperature rise in operation. so no impact on precision and work piece deformation due to temperature rise.Can used for long time.
3. Efficient
• Easy and quick position,reduce set-up time and increase available machine time.
• High accuracies and tolerances
4. Cost-effectiveness
• no maintenance
• no machine modifications
• reduced tool consumption
| Model | Dimensions (MM) | Polar Distance (MM) | Polar number | Net Weight (KG) | |||
| Length | Breadth | Height | 70*70 | 50*50 | |||
| X61-250*250 | 250 | 250 | 68 | 70*70/50*50 | 4 | 9 | 31 |
| X61-250*300 | 300 | 250 | 6 | 12 | 40 | ||
| X61-300*300 | 300 | 300 | 9 | 16 | 48 | ||
| X61-300*400 | 400 | 300 | 12 | 20 | 64 | ||
| X61-300*500 | 500 | 300 | 15 | 28 | 80 | ||
| X61-300*600 | 600 | 300 | 18 | 32 | 96 | ||
| X61-300*800 | 800 | 300 | 24 | 48 | 128 | ||
| X61-300*1000 | 1000 | 300 | 30 | 60 | 160 | ||
| X61-400*400 | 400 | 400 | 16 | 25 | 85 | ||
| X61-400*500 | 500 | 400 | 20 | 35 | 105 | ||
| X61-400*600 | 600 | 400 | 24 | 40 | 128 | ||
| X61-400*800 | 800 | 400 | 32 | 60 | 170 | ||
| X61-400*1000 | 1000 | 400 | 40 | 75 | 210 | ||
| X61-500*500 | 500 | 500 | 80 | 25 | 49 | 155 | |
| X61-500*600 | 600 | 500 | 30 | 56 | 188 | ||
| X61-500*800 | 800 | 500 | 40 | 84 | 250 | ||
| X61-500*1000 | 1000 | 500 | 50 | 105 | 310 | ||
| X61-600*600 | 600 | 600 | 36 | 72 | 225 | ||
| X61-600*800 | 800 | 600 | 48 | 96 | 300 | ||
| X61-600*1000 | 1000 | 600 | 60 | 120 | 375 | ||
| X61-600*1200 | 1200 | 600 | 72 | 144 | 450 | ||
| X61-600*1500 | 1500 | 600 | 90 | 176 | 560 | ||
Product Details

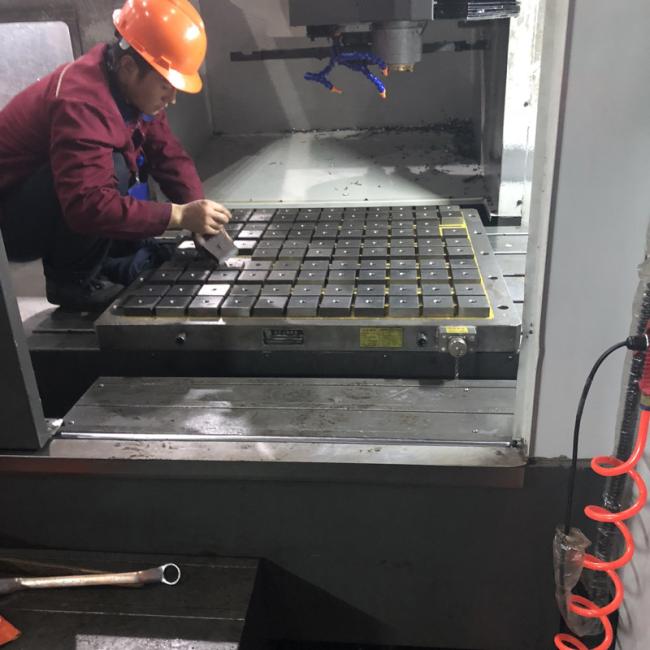

X61 Powerful Electro Permanent Magnetic Chuck clamping Force Up to More 20 Kg / Cm 2
- Energy Saving
Save More Than 95% El Ectricity
- Security
magnetism Remain 30 Years Even when Power Off
- Efficient
increase Efficiency by More Than 60%
- Durable
Easy to Use And maintain
