220 Volt 580mm X71 Electro Permanent Magnetic Chuck
Price:
USD 200-500
MOQ:
1
Delivery Time:
7 days
Brand:
JYC
Product Description

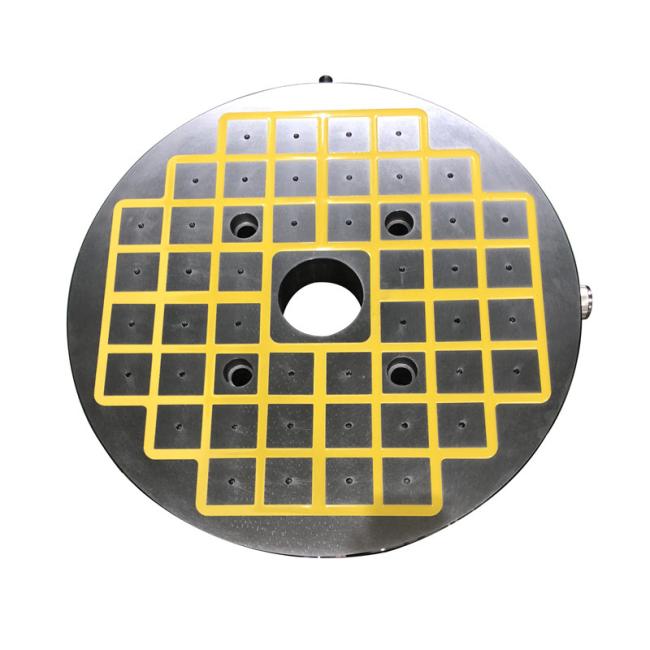

X71 circular electro permanent magnetic chuck
580 X71 circular electro permanent magnetic chuck
Product Parameters
Model |
Dimensions(MM) | Polar Number | Channel Number | Voltage (V) | Max RPM [1/min] |
Net WT (KG) | Overall size (CM) | ||
| φD | φd | H | |||||||
| X71-400 | 400 | 60 | 100 | 12 | 1 | 220/480 | 1000 | 98 | 50*50*20 |
| X71-500 | 500 | 60 | 100 | 12 | 1 | 220/480 | 800 | 150 | 60*60*20 |
| X71-600 | 600 | 80 | 100 | 12 | 1 | 220/480 | 650 | 220 | 70*70*20 |
| X71-700 | 700 | 80 | 110 | 12/16 | 2 | 220/480 | 600 | 290 | 80*80*22 |
| X71-800 | 800 | 120 | 110 | 12/16 | 2 | 220/480 | 500 | 390 | 90*90*22 |
| X71-1000 | 1000 | 200 | 120 | 16/24 | 2 | 220/480 | 400 | 660 | 110*110*22 |
| X71-1200 | 1200 | 250 | 120 | 16/24 | 2 | 220/480 | 320 | 950 | 130*130*22 |
| X71-1400 | 1400 | 300 | 130 | 18/24 | 4 | 220/480 | 260 | 1400 | 150*150*25 |
| X71-1600 | 1600 | 400 | 130 | 24/32 | 4 | 220/480 | 240 | 1850 | 170*170*25 |
| X71-1800 | 1800 | 500 | 130 | 24/32 | 4 | 220/480 | 160 | 2300 | 190*190*25 |
| X71-2000 | 2000 | 600 | 135 | 24/36 | 6 | 220/480 | 128 | 2900 | 210*210*26 |
| X71-2500 | 2500 | 800 | 135 | 36/48 | 8 | 220/480 | 100 | 4500 | 268*268*26 |
| X71-3000 | 3000 | 800 | 140 | 36/48 | 8 | 220/480 | 80 | 6800 | 318*318*26 |
| X71-3500 | 3500 | 1000 | 140 | 48/60 | 10 | 220/480 | 60 | 9500 | 368*368*26 |
| Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (Quick plug/electric conductive slip ring). |
|||||||||
| Permanent Magnetic Chuck | Electromagnetic Magnetic Chuck | Electro Permanent Magnetic Chuck | |
| Magnetic Source | Ndfeb | Coil and Core | Ndfeb Anico |
| Magnetic Force Principle | Internal Magnetic Fields | Constant Current | Conversion by Electronic Control Device |
| Usage | Manual | Electric Control Device | Electric Control Device |
| Precision | About 0.02-0 05 (the Error Increased Bysizes) | About 0.01-0.02 | About 0 002-0.005 |
| Potential Risk | Prone to Security Incidents | Prone to Security Incidents | Absolute Safety |
| Magnetic Regulation | Unable to Adjust | Electric Control Device to Adjustsuction | Electric Control Device to Adjust Suction |
| Suction | Small | Medium | Large |
| Residual Magnetism | More Remanence, Demagnetiz Ation Devicerequired | Less Remanence, Demagnetizationdevice Required | Automatic Demagnetiz Ation Withoutdemagnetization Device |
| Thermal Deformation | No | Continuous Power On, Heat Generationand Thermal Deformation | No |
| Applicable Workpiece | Thin and Small Workpieces | Thin and Small, Medium Sizedworkpieces | All Kinds of Workpieces |
| Application | Mainly Used for Grinding Machine | Mainly Used for Grinding Machine | For Grinding/milling/lathe Manchine and Soon. |
| Accessories | No | Electric Control Device | Electric Control Device |
| Serive Life | 3-5 Years | 6-10 Years | 20 Years |
Application Scenario
- Milling Machine
- Cnc Machine
- Quick Mold Changing System
- Parallel Machineing
Why Choose Us?
Safety, Magnetism Continue 30years Without Electric. Energy saving, Above 95%.
The Clamping Force Can Be As nigh As More Than 20 Kg/cm2.
High Efficiency, Improve The efficiency of More Than 60%.
Very Easy to Use, Fast, Durable, Maintenance Free.
MAGNETIC CLAMPING VS TRADITIONAL CLAMPING
| Suitable for clamping of various workpieces without deformation | Clamping tends to deform the workpiece |
| Uniform suction, improve processing accurcy | During the machining process, the workpiece generates vibrations, which reduces the machining accuracy and the surface flatness. |
| Accurate positioning, convenient clamping | Difficult clamping and inaccurate positioning reduce work efficiency |
| No interference position, workpieces can be f machined on five sides at one time | clamping with processing interference positions, workpieces can not be processed in one operation |
