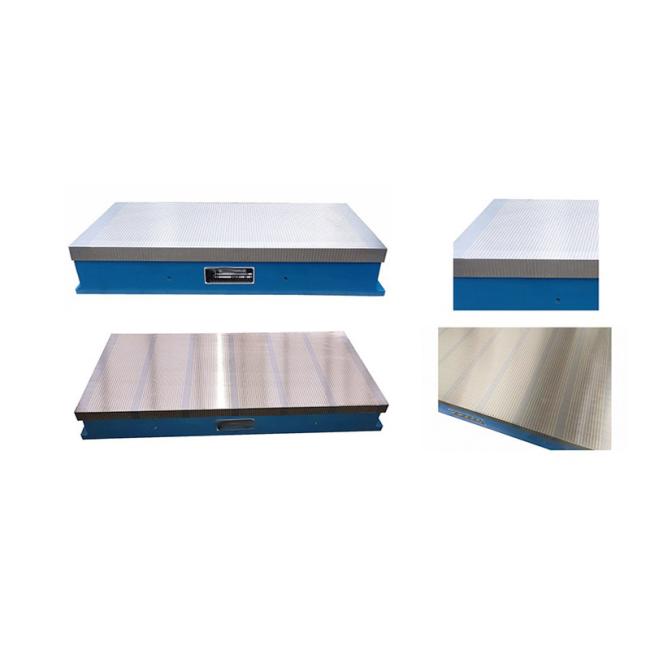

X11 Electric Magnetic Chuck
X11 XM11 Dense electronic controlled magnetic chuck
1, All metal top plates-hard wearing brass and steel
2, Extra strong magnetic force and less remaining magnetism
3, While turning magnetic for ON/OFF, the face's accuracy of magnetic force surface doesn't change and can keep high precision processing surface;
4, Coolant and water proof structure
5, Easy to operate handle
6, High performance at a competitive price
Specification sheet

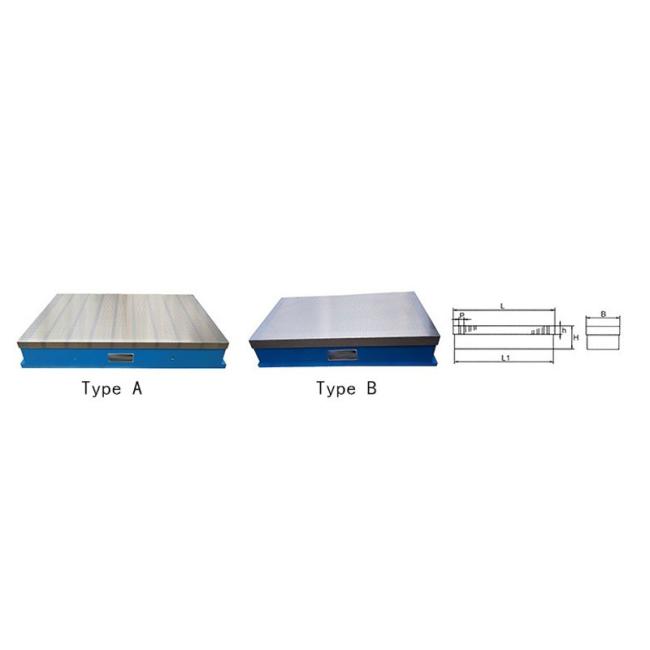

| Type A | Type B | ||||||||
| Spec sheet: | |||||||||
| Model | Dimensions (MM) | Polar Distance (P) | Voltage (V) | Current (A) | Power (W) | Net Weight (KG) | Overall size (CM) | ||
| Length | Breadth | Height | |||||||
| XM11 150*300 | 300 | 150 | 110 | 5 | 110 | 0.68 | 75 | 23 | 50*25*20 |
| XM11 150*350 | 350 | 150 | 110 | 5 | 110 | 0.8 | 88 | 29 | 55*25*20 |
| XM11 150*400 | 400 | 150 | 110 | 5 | 110 | 0.9 | 100 | 36 | 60*25*20 |
| XM11 150*450 | 450 | 150 | 110 | 5 | 110 | 0.94 | 103 | 48 | 65*25*20 |
| XM11 200*400 | 400 | 200 | 110 | 5 | 110 | 0.95 | 123 | 62 | 60*30*20 |
| XM11 200*450 | 450 | 200 | 110 | 5 | 110 | 1.03 | 113 | 66 | 65*30*20 |
| XM11 200*500 | 500 | 200 | 110 | 5 | 110 | 1.23 | 135 | 72 | 70*30*20 |
| XM11 200*560 | 560 | 200 | 110 | 5 | 110 | 1 | 110 | 80 | 76*30*20 |
| XM11 200*600 | 600 | 200 | 110 | 5 | 110 | 1 | 110 | 86 | 76*30*20 |
| XM11 200*630 | 630 | 200 | 110 | 5 | 110 | 1.1 | 121 | 88 | 83*30*20 |
| XM11 250*500 | 500 | 250 | 110 | 5 | 110 | 1.2 | 132 | 92 | 70*35*20 |
| XM11 250*600 | 600 | 250 | 110 | 5 | 110 | 1.7 | 185 | 118 | 80*35*20 |
| XM11 300*600 | 600 | 300 | 110 | 5 | 110 | 1.88 | 207 | 144 | 80*40*20 |
| XM11 300*680 | 680 | 300 | 110 | 5 | 110 | 1.5 | 160 | 150 | 88*40*20 |
| XM11 300*800 | 800 | 300 | 115 | 5 | 110 | 2 | 220 | 172 | 100*40*21 |
| XM11 300*1000 | 1000 | 300 | 115 | 5 | 110 | 2.2 | 342 | 223 | 120*40*21 |
| XM11 320*800 | 800 | 320 | 115 | 5 | 110 | 2.1 | 231 | 185 | 88*42*20 |
| XM11 320*1000 | 1000 | 320 | 115 | 5 | 110 | 2.35 | 258 | 238 | 120*42*21 |
| XM11 400*800 | 800 | 400 | 115 | 5 | 110 | 2.3 | 253 | 235 | 88*50*21 |
| XM11 400*1000 | 1000 | 400 | 115 | 5 | 110 | 2.88 | 316 | 290 | 120*50*21 |
| Note: Other specifications can be customized ,please call for further information. Suggestion: You can choose two installation methods (through hole/pressing block), two types(A/B). |
|||||||||
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Each chuck will be well protected by wooden boxs.
FAQ
Q: Are you manufactory or trade company.
A: We are both factory and trade company, we have lots of Cooperation factory with different quality and prices, just tell us your need, there is always a product suitable for you.
Q: Where do you located:
A: JYC technology Co.,Ltd. located at Wuxi City, Jiangsu Province, 1 hour by fast rail way to Shanghai City.
Q: Production time:
A: Normally,We'll have regular items in stock, customized products will take 7-14 work days.
Q: Payment term:
A: TT, credit card, L/C, Western Union, Paypal and so on, we accept all kinds of payment.
Q: What's your work time:
A: Normally, our work time is 9: 00 AM to 17: 00 PM Beijing time, but if you have emergency, Please contact us freely at any time. Our salesman will sulove your problem as soon as possible.
