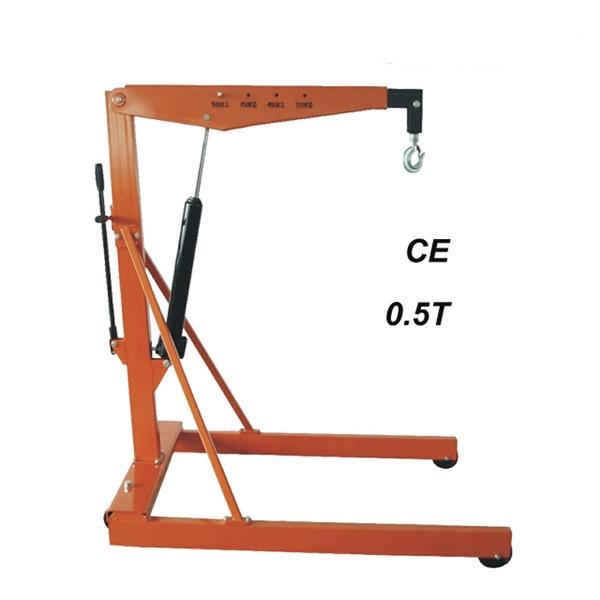

This engine crane has a long stroke lifting ram, a single action pump with a maximum load capacity of 500kg. Very simple to use manual hydraulic operation. The jib extends to the desired lifting capacity of 350kg, 400kg, 450kg or 500kg secured by a single locking pin. Mounted on 4 caster wheels & T-bar handle for excellent manoeuvrability around the workshop.

The lifting range is 0-2150mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.

•  Industrial engine crane
•  0.5 tonne lifting capacity
•  Heavy duty hydraulic pump
•  Adjustable boom in four positions for lifting
•  Robust steel fabricated legs with structural supports
•  4 x large caster wheels for easy mobility
•  Tilting & swivelling lifting hook
•  T-bar handle with grips on rear of hoist allows greater manoeuvrability control



Model:	YD01-012
Capacity:	500KGS
Base width(outside):	950mm
Base width(inside)	800mm
Max.boom length	1360mm
Min.boom length	1060mm
Max.hook height	2150mm
Min.hook height	470mm
Net Weight/pc	86kgs
Package	Brown box + Pallet
Qty/Pallet	5pcs
Pallet Size	140 x 104 x 87CM
N.W./G.W.-Pallet	408/450KGS
