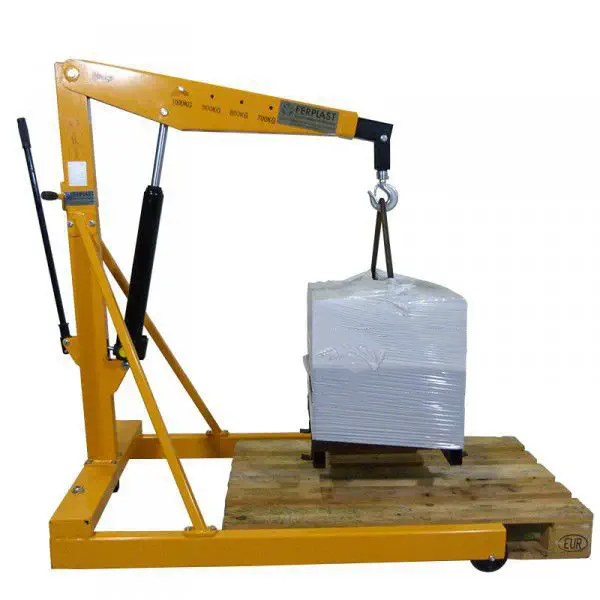

This engine crane has a long stroke lifting ram, a single action pump with a maximum load capacity of 1000kg. Very simple to use manual hydraulic operation. The jib extends to the desired lifting capacity of 700kg, 800kg, 900kg or 1000kg secured by a single locking pin. Mounted on 4 caster wheels & T-bar handle for excellent manoeuvrability around the workshop.

The lifting range is 470-2150mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.

•  Industrial engine crane
•  1 tonne lifting capacity
•  Heavy duty hydraulic pump
•  Adjustable boom in four positions for lifting
•  Robust steel fabricated legs with structural supports
•  4 x large caster wheels for easy mobility
•  Tilting & swivelling lifting hook
•  T-bar handle with grips on rear of hoist allows greater manoeuvrability control

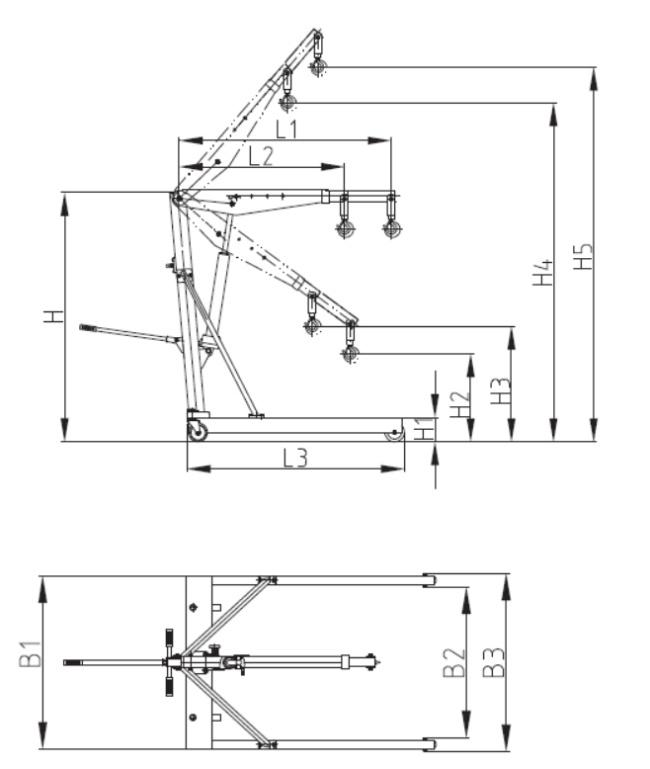

• Model:	YD01-013
  Capacity:	1000KGS
  Base width(outside):	950mm
  Base width(inside)	800mm
  Max.boom length	1360mm
  Min.boom length	1060mm
  Max.hook height	2150mm
  Min.hook height	470mm
  Net Weight/pc	103kgs
  Package	Brown box + Pallet
  Qty/Pallet	5pcs
  Pallet Size	140 x 104 x 100CM
  N.W./G.W.-Pallet	515/550 KGS
