Digital Ultrasonic Generator Ultrasound Power Supply 20KHz Standard Vertical Type
Digital Ultrasonic Generator Ultrasound Power Supply 20KHz 2000W
At present, there are two types of ultrasonic generators used to control ultrasonic equipment, one is the older version of the analog generator box, and the other is the intelligent generator box. Both types of generators have their own advantages.
The function of the analog generator is less, the advantage is that the machine can ensure absolute stability, the disadvantage is that it can not be well adapted to the welding of various products. The advantage of the digital generator is that It has rich features, comprehensive data, more controllable items, and comprehensive welding modes. It can better weld a variety of different products. You can use a special welding mode to weld certain products.
The digital ultrasonic generator is a 20KHz 2000W standard vertical type, which is designed for convenient use in customized ultrasonic welding or cutting machines.
Technical parameters:
| Frequency | Power | Frequency Range | Voltage |
| 15kHz | 2500w/3000w/4000w | 14.40-15.20kHz | 220V±10% |
| 20kHz | 2000w/3000w | 19.40-20.20kHz | 220V±10% |
| 30kHz | 1000w | 29.30-30.30kHz | 220V+-10% |
| 35kHz | 1000w | 34.20-35.40kHz | 220V+-10% |
| 40kHz | 800w | 39.20-40.40kHz | 220V+-10% |
| * Real-time frequency automatic tracking function. |
| * Welding modes: time, energy, and grounding. |
| * Amplitude division function. Welding amplitude 10-100% adjustable (1% accuracy) |
| * Amplitude compensation function. |
| * Mold impedance analysis+protection |
| * Overload protection. |
| * Voltage protection (input) |
| * Transducer voltage protection |
| * 485 communication port. |
| * 4-core 32-bit processor. |
Usage:
| Automotive: | Auto and motorcycle plastic parts, car mats welding, automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Electronics: | Recording, audiotape boxes and core wheel, disk enclosure, switches and sockets, remote control, electronic swatter, etc |
| Home appliances: | Balance ring, electronic clock, steam iron water tank, electric kettle air-Hsiang, etc |
| Toy: | plastic toys, aquatic life video game, plastic gifts, etc |
| Packaging: | Plastic pallet, hollow crate welding, etc |
| Medical: | Surgical Instruments, filters, I-V units, insulated trays, etc. |
Our Service:
1. Reliable Production Line
Our production line is stable and trustworthy.
2. Well-experienced R&D Engineer
If you have any technical questions, please don't hesitate to contact us.
3. Efficient Working Team
We have a mature, efficient, and well-cooperated team.
4. Competitive Price
We promise to give our clients the most competitive price
5. Customized Product Service
If you have other customized requirements, please communicate with us for further details.
Application Cases:

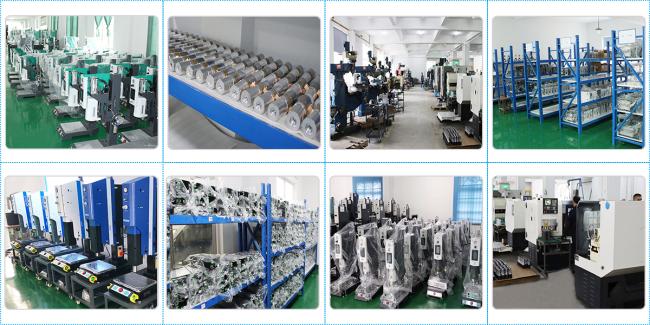

Warehouse:
Certification:
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
