15KHz 2600W Ultrasonic Welding Machine Plastic Welding Ultrasound Welder
15KHz 2600W Ultrasound Plastic Welder, Ultrasonic Welding Machine For Plastic Welding

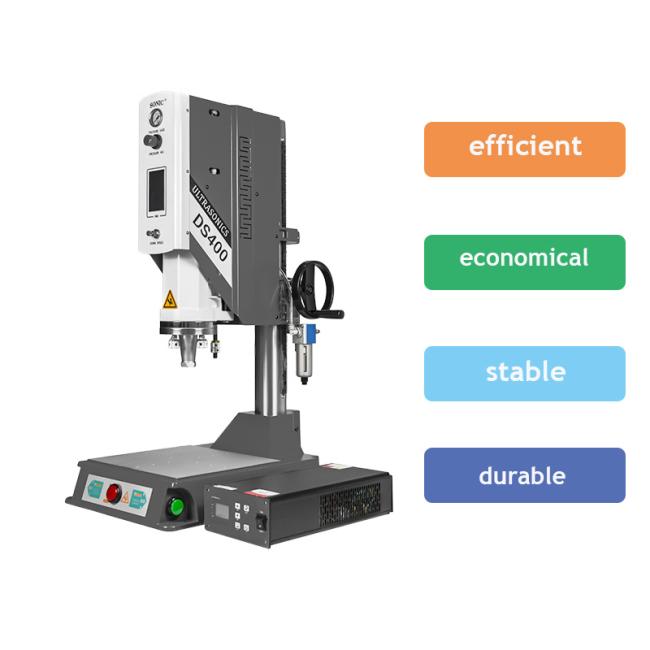

In order to meet customers' more personalized needs, we launched the ultrasonic plastic welding machine DS400 series (DS300 upgraded version) in the second half of 2020.
The KM-DS400 series are also equipped with a new generation of digital ultrasonic generator and a 4.3-inch touch screen to achieve visual operation and control of field operations with the operating system.
The addition of the split design and level control system can meet the requirements of most on-site welding scenes. While maintaining the high efficiency, easy to use, stability and economic characteristics of the original series of products, nearly 20 improvements have been made on the structure, material, safety, and color of the whole machine, casting a new generation of basic entry-level hot style products
Technical specifications:
| Product name | 2600W Ultrasonic Plastic Welder |
| Voltage | AC 220V 50/60Hz |
| Dimensions (WxHxD) [mm] | 670*400*1160 |
| Weight [kg] | 85KG |
| Welding head operating stroke [mm] | 100mm |
| Air pressure rate[MPa] | 0-0.6MPa |
| Amplitude Internal | 60-100 at 5% steps |
| Time Mode | 0.005-9.999 Seconds |
| Input | 22-28V DC/7mA |
| Output | 22-26V DC/250mA |
| Energy Mode | Integrated |
| Temperature | -10ºC--40ºC |
Features:
1. Digital circuit system: real-time frequency automatic tracking and locking display;
2. Three ultrasonic welding mode: Time mode; Energy mode; Grounding Mode;
3. Quadruple intelligent management: Amplitude management; quality management; data management; safety management;
4. Abundant models and accessories: Products cover 15K-40K frequencies and 800W-4200W powers.
Application:
| Automotive | Car door welded baffle welding, automobile, car mat welding, automotive bumper repair welding, cotton insulation doors, engine cover, radiator cap spot, etc. |
| Electronics | Switches and sockets, electronic swatter, remote control unit, etc |
| Home appliances | Computer, electronic clock, electric kettle air-Hsiang, etc |
| Toy | Plastic toys, plastic gifts, etc |
| Packaging | Corrugated tray, hollow crate welding, zip lock welded, etc |
| Medical | Testing Equipment,filters,I-V units,insulated trays..etc. |
For more details about our ultrasonic plastic welders, welcome to click the catalog below:
Catalog of Ultrasonic Welding Press.pdf
Detailed Photos:

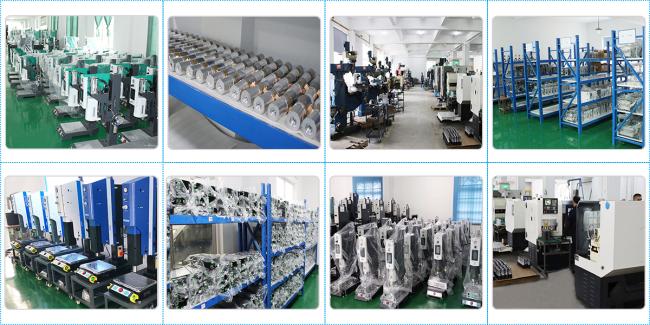

Warehouse:
Packing:
