15KHz Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
15KHz High Power Ultrasonic Welding Machine For Plastic PUC PS PPS PBT ABS PP PE PC
Dongho embedded system-the 6th generation iQS operating system, is equipped with multiple, innovative & high-end functions. Its operating system is facing the future, with diversified and flexible welding modes. The welding power can reach as high as 5KW and meet the diverse needs of products. Good choice for large plastic workpieces welding.
Technical Parameters:
| Model | GEL-S S1545 |
| Frequency | 15KHz |
| Power | 4500W |
| Triggering Method | Time/position |
| Welding Method | Time/Energy/absolute position |
| Max Working Stroke(mm) | 100mm±1mm |
| Max Welding Time | ≤6S |
| Amplitude control | Single-stage amplitude |
| Quality control | Time/Energy/Power/absolute position |
| Output interface | 10" color touch screen |
| Voltage(V) | AC220V±5% 50/60Hz |
| Z traveling precision(mm) | ±0.02mm accuracy |
| Max. air pressure(mpa) | 1mpa |
| Air source | Compressed air must be clean, dry and free of lubricant |
| Dimension(L*W*H)mm | 750*1000*1920 |
| Weight(kg) | 300KG |
Features:
1. The sixth generation of iQS operating system, intelligent automatic frequency chasing generator;
2. A variety of welding modes, flexible to meet the diverse needs of products;
3. Support for four brands of scan guns for data storage and traceability;
4. Embedded overload protection system ensures real-time safe operation of the welding machine;
5. Parameters such as welding frequency, welding time, welding energy, and absolute position of the storage device;
6. High-performance steel square column structure, anti-torsion design, full series of modular structure, easy to expand;
7. Standard external auxiliary tools such as PLC, grating, coil device, sound insulation cover, etc., and equipped with quality monitoring function;

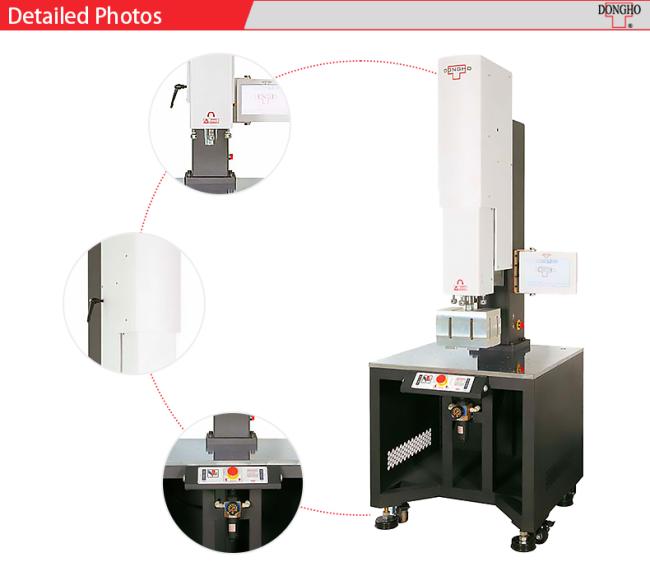

Detailed Photos:
