Frequency Auto Tuning 20KHz 2500W Ultrasonic Welding Generator
20KHz 2500W PLC Digital Ultrasonic Welding Generator with Frequency Auto-Tuning Function
This is the PLC type digital auto tuning ultrasonic welding generator, designed for convenient use in customized welding or cutting machines. The ultrasonic welding generator adopts advanced microcomputer control technology and new circuit geometry, you can adjust the ultrasonic frequency, and working mode(continuous mode, time mode, energy mode, grounding mode) according to your request.
Technical parameters:
| Model | Frequency | Power | Frequency Range | Voltage | Air source |
| KM-QD-GPLC1525/1530/1540(H) | 15kHz | 2500w/3000w/4000w | 14.40-15.20kHz | 220V+-10% | Built-in PLC Control/ plastic /Continuous Welding optional, horizontal and verticle type optional |
| KM-QD-GPLC2025/2030(H) | 20kHz | 2500w/3000w | 19.40-20.20kHz | 220V+-10% | |
| KM-QD-GPLC3010(H) | 30kHz | 1000w | 29.30-30.30kHz | 220V+-10% | |
| KM-QD-GPLC3510(H) | 35kHz | 1000w | 34.20-35.40kHz | 220V+-10% | |
| KM-QD-GPLC4080(H) | 40kHz | 800w | 39.20-40.40kHz | 220V+-10% |
Features:
|
* Real-time frequency automatic tracking function. |
|
* Welding time is adjustable |
|
* Cooling time is adjustable |
|
* Welding amplitude adjustable 10%-100% (1% accuracy) |
|
* Amplitude compensation |
|
* Welding electrode impedance analysis +protection |
|
* Overload protection |
|
* Voltage protection |
|
* Transducer voltage protection |
|
* Flat and vertical types are available. |
Application:
| Application Industry | Application Products |
| Toy: | toys, children dolls, gifts, etc |
| Film & Fabric | Filters, Shower Curtains, Biodegradable Bag, Non-Woven Face Mark,..etc. |
| Medical | Surgical Instruments,Surgical Garments,Masks,Testing Equipment,filters,I-V units,insulated trays..etc. |
FAQ:
1. What's the warranty of your ultrasonic welding generators?
One-year warranty with no human damage.
In this period factory will be responsible for repairing it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair it or send the new parts at the cost price.
2.How do you guarantee your production quality?
We take the delivery tests with the professional QC team before shipment.

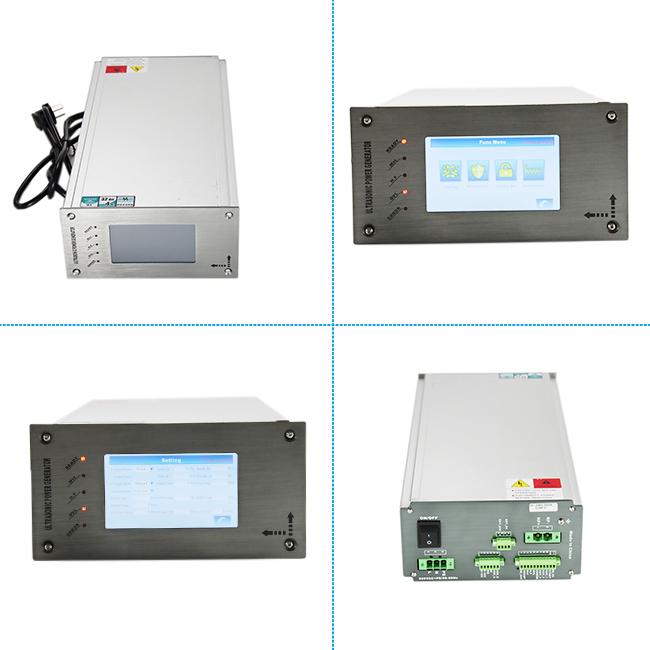

Detailed Photos:
Certification:
