Ultrasonic Generator 2600W Ultrasonic Welding Generator For Non Woven Welding
15KHz Ultrasonic Welding Generator Ultrasonic Spot Welding Machine Non-Woven Fabric Welding
The ultrasonic generator is a power supply for the ultrasonic welding machine, which is the major part of the welding machine.
It transforms AC electrical energy from a power source to electrical energy which is appropriate for energizing a transducer at a high ultrasonic frequency. In other words, the ultrasonic generator sends high-voltage electrical pulses to the transducer.
The ultrasonic generator has been upgraded based on previous experiences in the past years, the generator can meet most of your needs, and the price is very competitive compared with other famous brands in the world. The generator is equipped with time, energy working modes, and multiple trigger modes. More functions could refer to the following parameters.
Technical parameters:
| Product Name: | 2600W Ultrasonic Welding Generator |
| Dimension: | L320mm×W210mm×H90mm |
| Net Weight: | 4Kg |
| Output power: | 0-2600W |
| Output voltage: | 0-3000V AC |
| Ambient temperature: | +5°C - +50°C |
| Harmonic Sinusoidal rate ≥97% | |
| Input power factor ≥80% | |
| Working frequency: | 15 KHz/20KHz/28KHz/30KHZ/35KHz/40KHz |
| Power supply: | AC220V 50Hz |
| Horn frequency scope: | ±400HZ(take 15KHZ as an example, the horn frequency can be 14.40-15.20KHZ, auto-tuning) |
| Auto-tuning accuracy: | ±5HZ |
| Power fluctuation: | ≤ 5% |
| Remote terminal dynamic response time: | ≤10ms |
| Over-current protection: | 15A |
Features:
Each power will be tested by a Specify transducer.
All generators with one year warranty.
Specialized in high-power ultrasonic for more than ten years.
Every generator with 24hours old testing before shipment.
Usage:
The ultrasonic welding generator can be used for non-woven fabric welding, plastic welding;
For more details about our ultrasonic generators, welcome to click the catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf

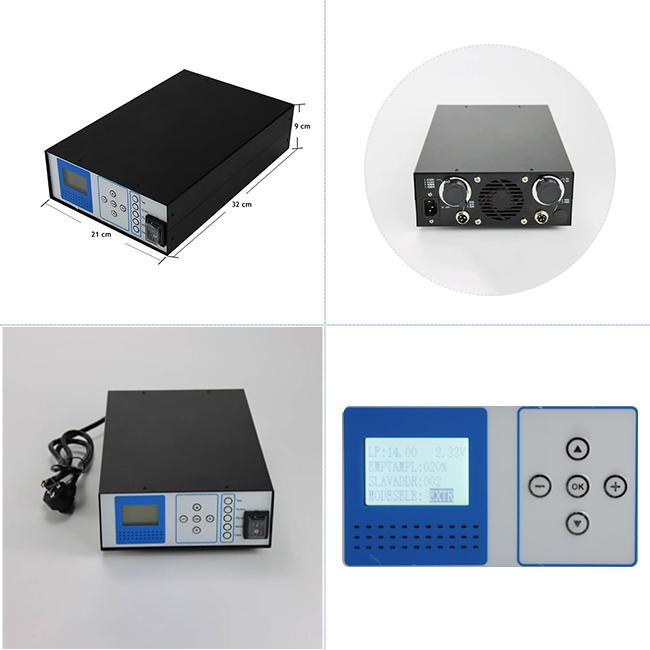

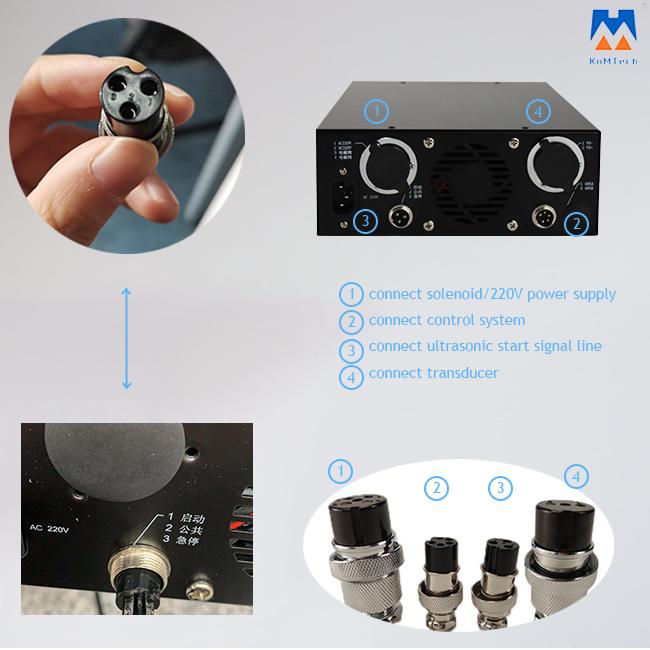

Detailed Photos:
