1800W Ultrasonic Welder Generator Power Supply Box for Ultrasonic Welder
20Khz 1800W Ultrasonic Welding Generator Ultrasonic Power Supply for Plastic Welding
Ultrasonic generator, usually called ultrasonic generation source, ultrasonic power supply is composed of oscillator voltage amplifier, power amplifier and output transformer,etc.The main function is to convert our mains electricity (220V or 380V,50 or 60Hz) into a high-frequency AC electrical signal matched with an ultrasonic transducer From the form of the amplifier circuit. Linear amplifier circuit and switching power supply circuit can be used. From the perspective of conversion efficiency, the high-power ultrasonic power supply generally adopts the form of a switching power supply circuit.
According to the working principle of ultrasonic electric box, the ultrasonic generator can be divided into analog circuit generator box and digital circuit generator box. The analog circuit ultrasonic generator with simple structure is easy to maintain.When the mold is changed,the analog ultrasonic generator needs to be accurately adjusted of the ultrasonic frequency.
Technical parameters:
| Product Name | 1800W Ultrasonic Welding Generator |

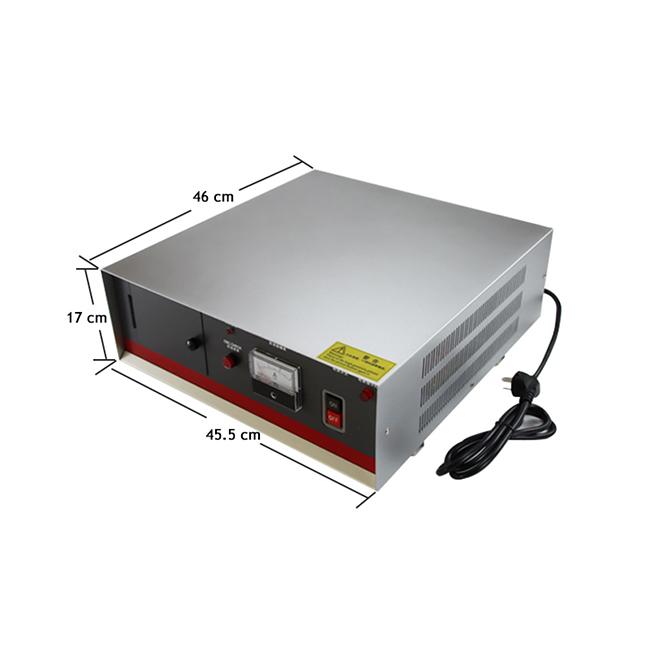

| Dimension | Length 455mm×Width 460mm×Height 170mm |
| Net weight Of Main Body | 14 Kg |
| Frequency Range | 19.40-20.20kHz |
| Output Power | 1000W-1800W |
| Voltage | 220V+-10% |
| Welding Mode | Intermittent Welding |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection | |
| Transducer voltage protection | |
| Welding Time | 0.00s-9.99s |
| Working Frequency (options) | 15KHz |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
| Air source | purified air with a particle diameter of less than 5μm, 7kgf/cm2 |
Specifications:
| Model | Frequency | Power | Frequency Range | Voltage | Type of welding |
| KM-ME-1526 | 15kHz | 2600w | 14.40-15.20kHz | 220V+-10% | intermittent |
| KM-ME-1526 | 15kHz | 2600w | 14.40-15.20kHz | 220V+-10% | continuous |
| KM-ME-2015 | 20kHz | 1500w | 19.40-20.20kHz | 220V+-10% | continuous |
| KM-ME-2018 | 20khz | 1800w | 19.40-20.20kHz | 220V+-10% | intermittent |
Features:
* With large adjustable amplitude and High stability: The analog circuit generator has a wider adjustment range of ultrasonic output power and a more stable ultrasonic output than the transistor circuit ultrasonic generator.
* Good heat dissipation: The exterior design of the electric box makes the electric box have good heat dissipation
* Economical and Eco-friendly: no need of any adhesive, glue, no heating.
Application:
| Application Industry | Application Products |
| Automotive: | Auto and motorcycle plastic parts,battery, glove box, Plastic fuel tank, Intake manifold, Plastic muffler, Expansion Tank, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding, cotton insulation doors, seat wipers, engine cover, radiator cap spot, etc |
| Electronics: | recording, audio tape boxes and core wheel, disk enclosure, the board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Home appliances: | Balance ring, electronic clock, electric trumpeter hair dryer, steam iron water tank, electric kettle air-Hsiang, computer, etc |
| Toy: | plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Packaging: | Plastic pallet, Corrugated tray, hollow crate welding, zip lock welded, etc |
| Medical: | Surgical Instruments,Testing Equipment,filters,I-V units,insulated trays..etc. |
For more details about our ultrasonic generators, welcome to click the catalog below:
Catalog of KnmTech Ultrasonic Generators.pdf

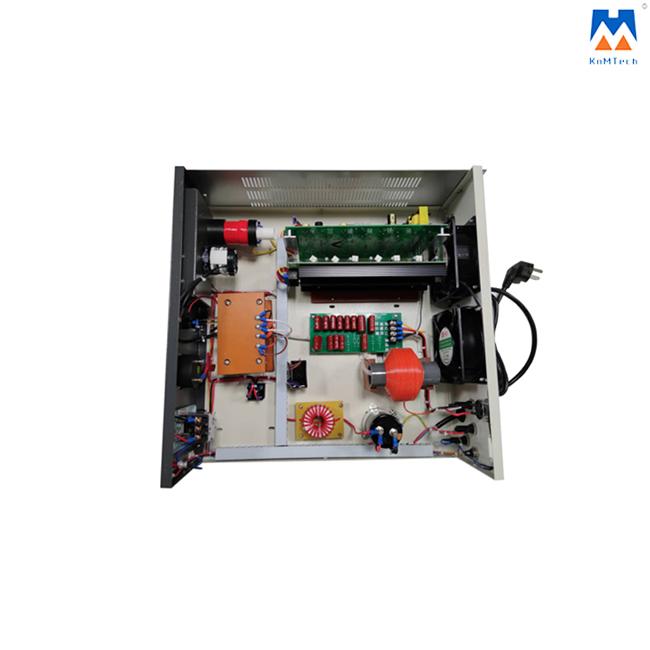

Detailed Photos:
