Food Cutting Ultrasonic System 20KHz High Power Digital Ultrasonic Generator
Digital Ultrasonic Generator for Food Cutting Machine Power Supply
This ultrasonic welding generator is made of an ultrasonic power amplifier module that can convert 50/60 Hz industry frequency alternating current to super audio frequency to make the converter work, and one control module with “System protecting monitor” and “Automatic tuning” function.
The control module can shut off the ultrasonic energy when a failure occurs during ultrasonic weld working, thus provides super high safety and reliability to the complete welding equipment.
Technical parameters:
| Product Name | 20Khz,3000W Ultrasonic Generator |
| Dimension: | Length 340mm×Width 210mm×Height 94mm |
| Net weight of main body: | 6Kg |
| Output power: | 3000W |
| Output voltage: | 220V AC |
| The temperature at the working environment | from +5°C to +50°C |
| Sine harmonic wave parameter: | ≥97% |
| Input power factor: | ≥80% |
| Working frequency: | 20KHz |
| Working power supply: | AC220V 50Hz |
Different models are available:
| Frequency | Output power | Voltage | Air source | Weight |
| 15kHz | 2600W,3000W,4200W(higher power can be customized.) | 220V+-10% | filtered clean air | 6kg |
| 20kHz | 1500W,2500W,3000W | |||
| 28kHz | 800W,1000W | |||
| 30kHz | 800W,1000W | |||
| 35kHz | 800W,1000W |
Features:
* Welding amplitude 10-100% adjustable (1% accuracy)
* Amplitude compensation function.
* Mold impedance analysis+protection
* Overload protection.
* Voltage protection (input)
* Transducer voltage protection
* Quality management (time and energy)
Application:
The 20KHz ultrasonic welding generator is an important part of the ultrasonic food cutting system, which can be used to cut bakery, frozen food, snack food, cutting patterns. Various rectangular, square, triangular, diamond, and fan shapes. Company or bakery. Equipped with high-quality titanium alloy cutting tools, this 20KHz Ultrasonic Welding Generator can achieve the best cutting effect.

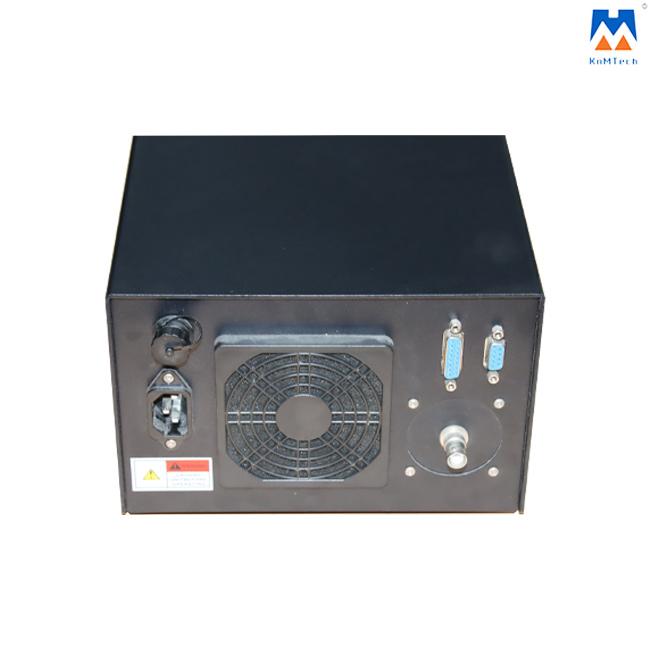

Detailed Photos:
