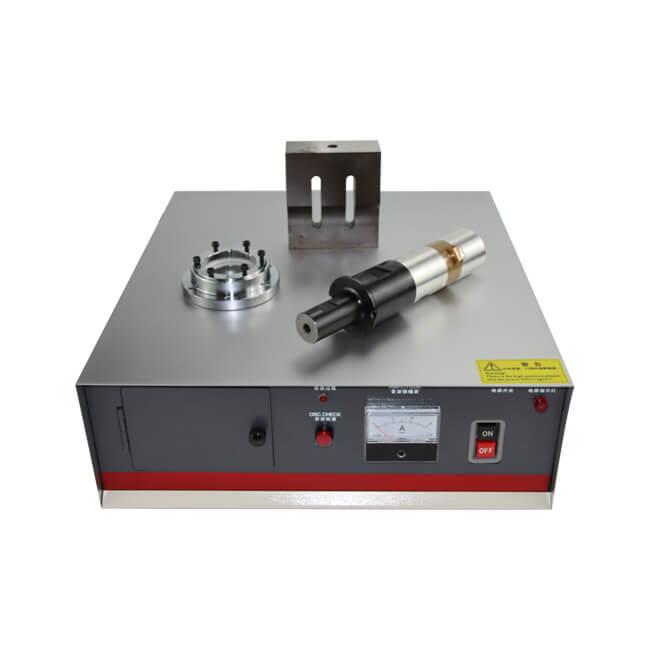

20khz Ultrasonic Welding Set With Generator Transducer And Horn For Plastic Welding Fabric Welding
20khz Continuous Ultrasonic Welding System for Ultrasonic Welding Machine
This 20khz continuous ultrasonic welding system has a good rating, which is widely used in small plastic parts spot melting, plastic riveting, non-woven cloth welding, slicing, etc.
The K&M Tech standard machine gives ultrasonic welding a new dimension: it combines high-performance ultrasonic components with high-quality construction and up-to-date control solutions. Compared with its predecessors the functionality of the K&M Tech has been improved and handling simplified.
Technical parameters:
Generator
| Dimension | Length 530mm×Width 460mm×Height 170mm |
| Net weight Of Main Body | 14 Kg |
| Frequency Range | 19.40-20.20kHz |
| Output Power | 1500W |
| Voltage | 220V+-10% |
| Welding Mode | Continuous Welding |
| Welding Time | 0.01s-9.99s |
| Protection | Welding electrode impedance analysis +protection |
| Voltage protection | |
| Transducer voltage protection | |
| Working Frequency (options) | 20KHZ |
| Welding Amplitude | adjustable 10%-100% (1% accuracy) |
| Air source | purified air with a particle diameter of less than 5μm, 7kgf/cm2 |
Transducer
| Resonant Frequency | 20KHZ |
| Impedance | R:3~10Ω, Refers to the resistance measured by a similar instrument such as a resistance characteristic analyzer |
| Capacitance | 11-~12nf |
| Maximum Power | P:2600W, Machine manufacturers may have different regulations for the nominal power of machines for different purposes. In other words, the same transducer may have different nominal power for different machines. Therefore, when choosing an ultrasonic transducer, you can only refer to its maximum power |
| Working Mode | continuous working |
| Humidity Of Working Environment | relative humidity ≤85% (non-condensing) |
| Material | aluminum alloy for the convertor, stainless steel for the booster |
| Joint bolt | M20*1.5 |
| Ceramic disc Diameter | 60mm |
| Quantity of Ceramic discs | 4 pcs |
| Net weight of the main body | 5.3KG |
Horn
| Dimension | Length 110mm × Width 20mm |
| Frequency | 20KHZ |
| Net weight of the main body | 3KG |
| Material | steel |
Flange
| Frequency | 20KHZ |
| Inner Diameter | 65mm |
| External Diameter | 115mm |
| Thickness | 40mm |
| Material | Steel |
| Net weight of the main body | 1.4KG |
Features:
1. High-quality imported ultrasonic transducer with strong power and good stability.
2. The design of the whole machine is exquisite, and the small size does not occupy space.
3. The product has high power and strong output.
4. Assembly of high-quality imported parts of main parts.
5. The noise is slight and the working environment is environmentally friendly.
Application:
The ultrasonic welding system with generator, transducer and horn is widely applied for face mask welding, toy welding, electrical appliance, automobile industry, and daily necessities industries, etc.
