High Performance Ultrasonic Welding Machine 40KHz For PP PE PETG
Green Energy High Performance Ultrasonic Welding Machine 40KHz For PP PE PETG Welding
Green Energy High-Performance Ultrasonic Welding Machine 40KHz for PP PE PETG Welding
Technical parameters:
| Model | iBA-F1530e | iBA-F2020e | iBA-F2025e | iBA-F3015e | iBA-F3512e | iBA-F4008e |
| Specification | ||||||
| Frequency | 15KHz | 20KHz | 20KHz | 30KHz | 35KHz | 40KHz |
| Power | 3000W | 2000W | 2500W | 1500W | 1200W | 800W |
| Triggering Method | Time | |||||
| Welding Method | Weld time/Weld energy/Grounding detect | |||||
| Air pressure control | proportional valve | |||||
| Operating air method | Standard | |||||
| Amplitude control | Single-stage amplitude | |||||
| Pre-press vibration | 1) OFF, 2) pre-vibration time | |||||
| Max Working Stroke(mm) | 80mm±1mm | |||||
| Max Welding Time | 5 seconds | |||||
| Voltage(V) | AC220V±5% 50/60Hz | |||||
| Accessory expansion (optional) |
Noise insulation shield/ Automatic film winding device/ Auxiliary fixture *2/ Safety curtain for protection
|
|||||
| Dimension(L*W*H)mm | 500*750*1100mm | 470*720*950mm | ||||
| Weight(kg) | 106kg | 75kg | ||||

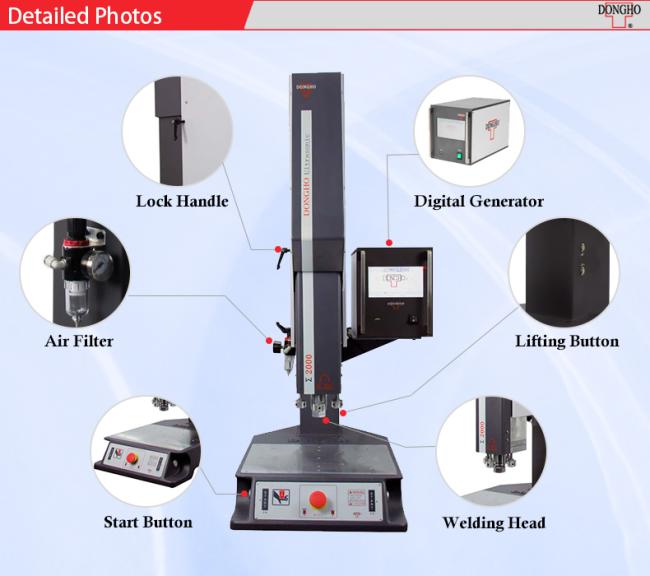

Features:
- High-speed processing core-New generator Dongho UTC high-speed processing core enables a quicker ultrasonic welding process.
- Wide-screen touch screen- easy for programming, all the welding parameters can be set on the menu.
- Multi operation interface-different parameter blocks displayed on one screen, which enables direct analysis of the operation procedure.
- Parameter setting in blocks-Different function blocks enables easier setting of the parameters and more ideal human-machine efficiency.
- Optimized welding procedure-Monitoring the welding process in stepping sequence, multiple-step control at the same time, making more visible welding process and smoother welding.
- Real-time data--provides more welding data.
- Data storage-Record and store the ultrasonic welder setting, welding parameters, and welding data.
- Programming-Welding program editing and storing.
- Accessories connection-Directly connect to outer auxiliary devices, such ask noise insulation case, IR safety curtain, clamps and protection film rolling device, etc.
- User-defined connection-Using unit setting parameters to change the functional definition of input and output
- Extension connection-user-defined connections and external control enables flexible control.
- Ethernet connection-connect to local area network, adjust parameters, monitor welding process, upload welding data;
- Communication connection-RS232 / RS485 communication mode;
Application:
The digital ultrasonic welding machine can be used for welding materials such as PS, ABS, PC, PBT, PP material, ABS material, Nori Road, acrylic, mobile phone cover, computer keyboard, U disk, mobile phone charger, power adapter shell, plastic cardholder, automobile plastic accessories, plastic folders, plastic toys, and other plastic products. Widely used in plastic, electronics, electrical appliances, auto parts, packaging, environmental protection, medical equipment, toys, communication equipment, and other industries.
FAQ:
1. How can I get your price and catalog?
Please E-mail us for price and download catalogs from our website: www.sinceresonics.com.
2. Can we be your agent in our country or city?
Of course. We are looking for agents or distributors who are willing to cooperate with us for a long business term.
3. How about payment?
100%T/T in advance for small orders; 30%T/T in advance as a deposit;70%T/T paid before shipment for big orders; or other terms by negotiation.
